- 3,500 lbs capacity

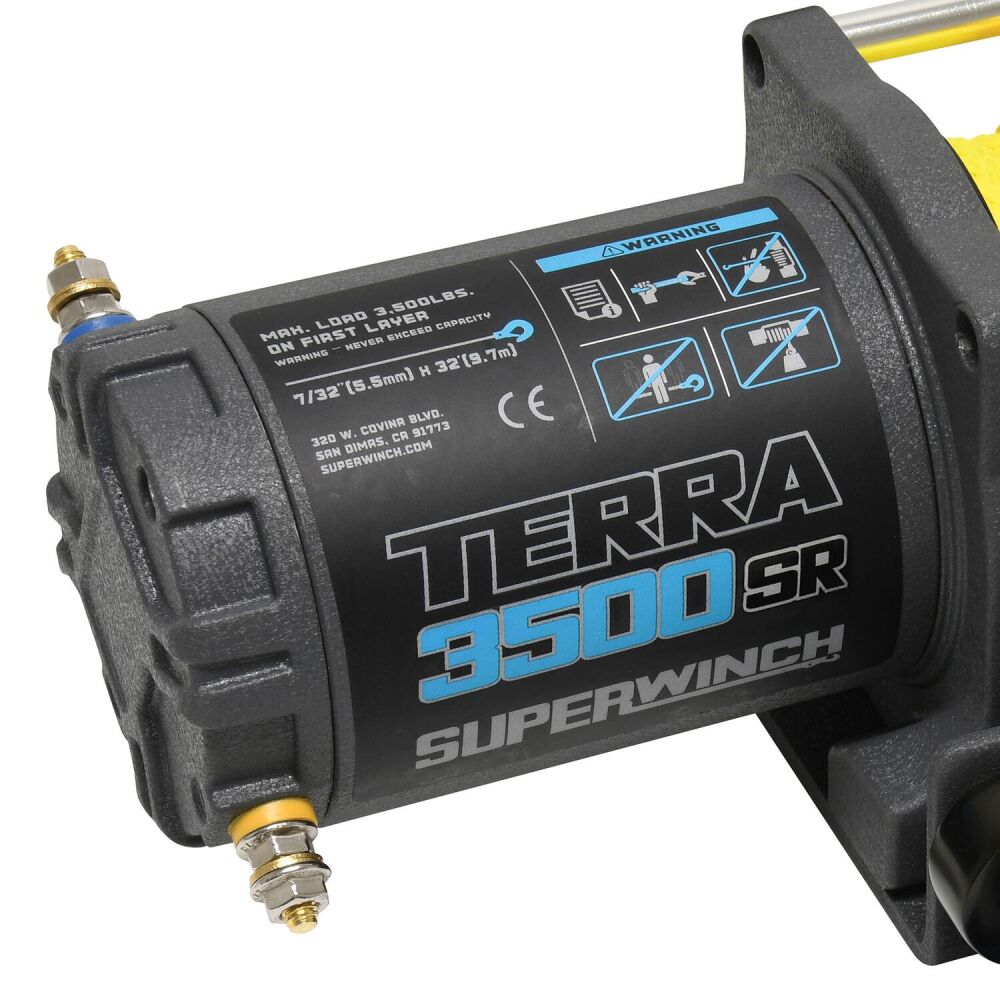

- 1.6 HP permanent magnetic motor
- Clockable motor
- 3-Stage planetary gearing with 198:1 ratio
- Heavy-duty steel drum
- All steel gear set
- Sealed solenoid with circuit breaker

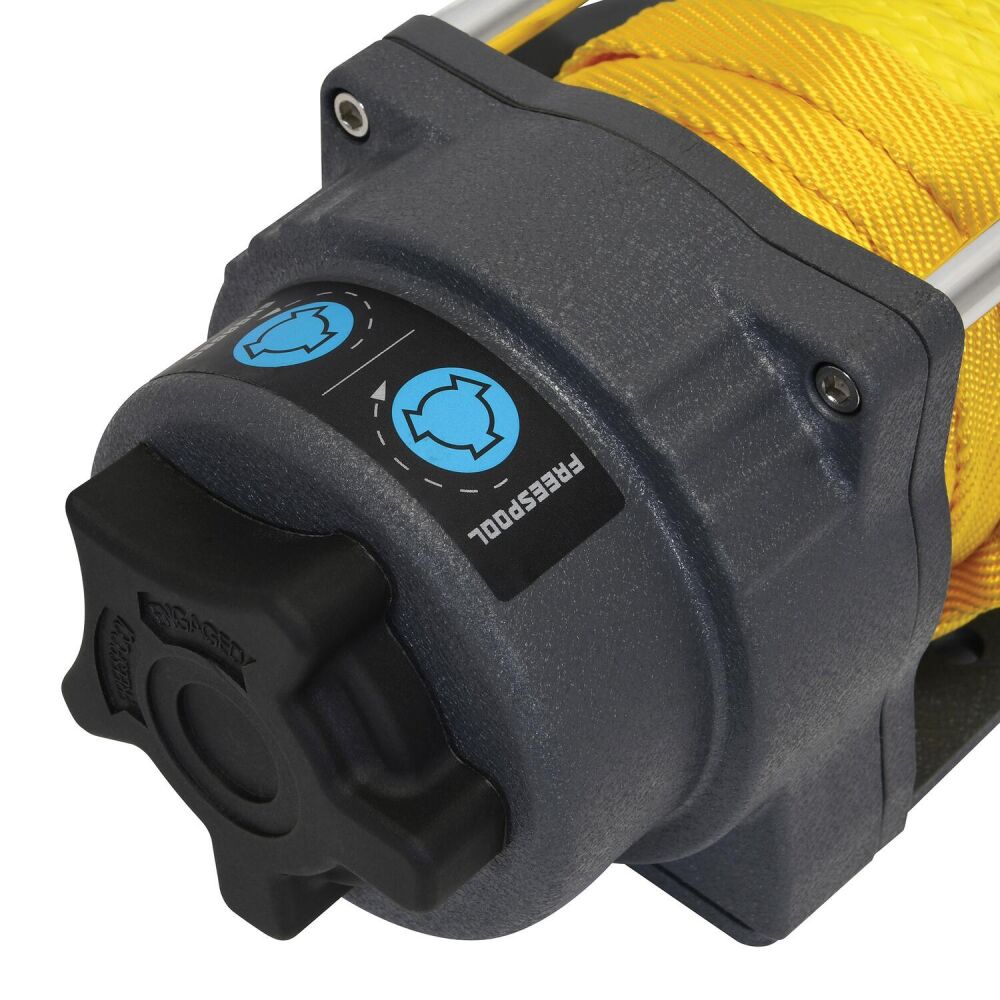

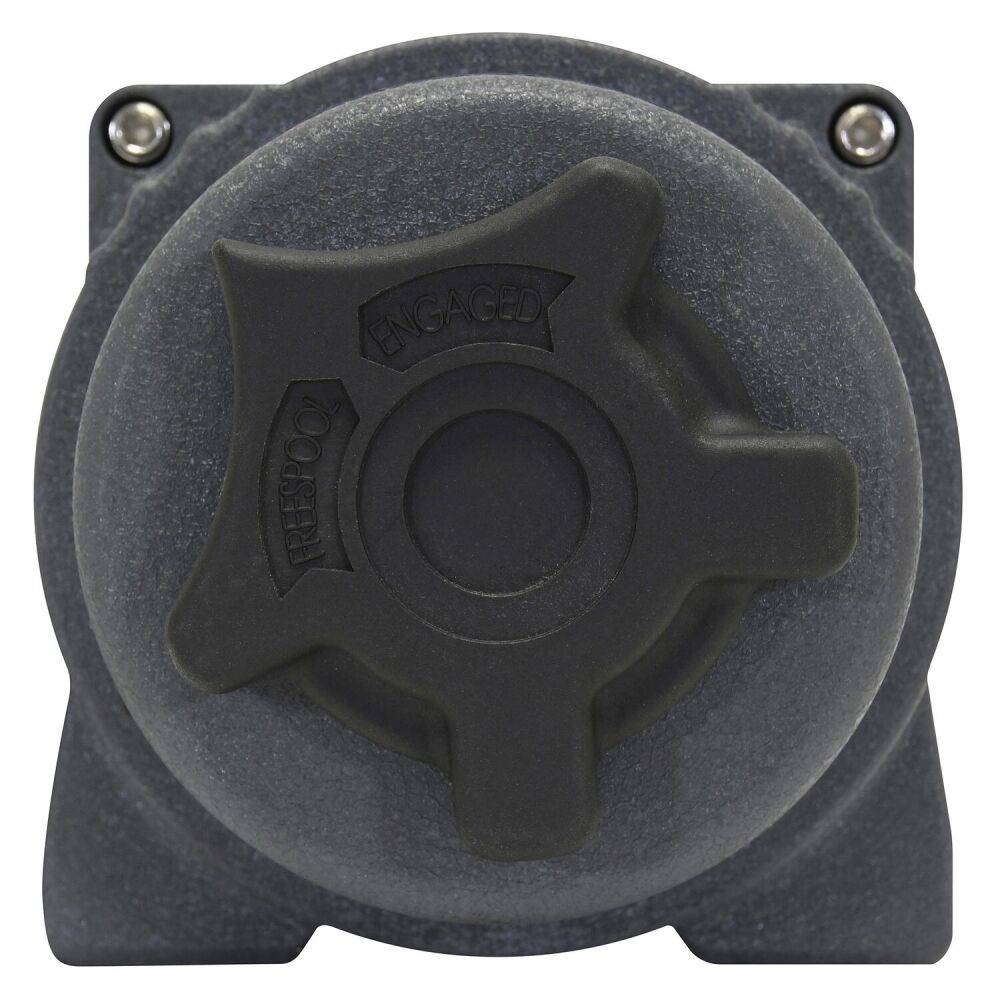

- Easy to engage ergonomic freespool control knob
- IP67 protection from water and dust

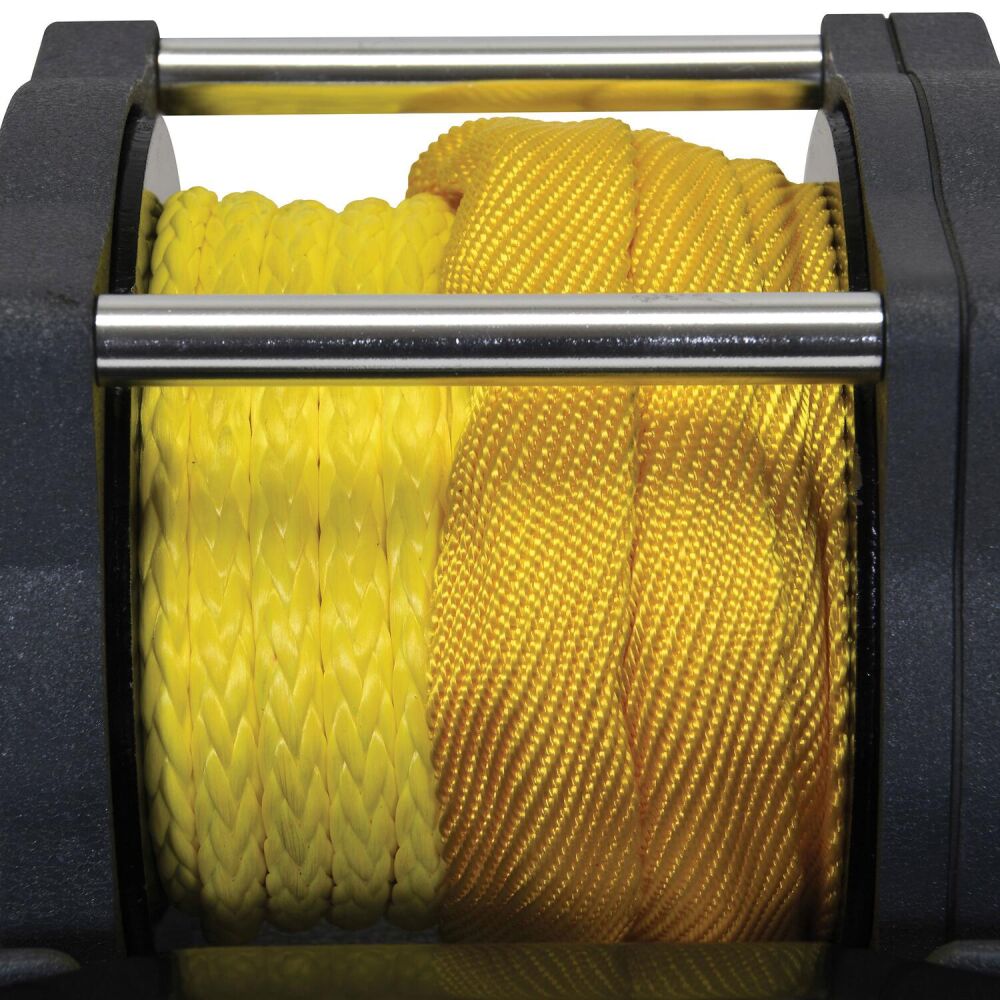

- 7/32 in. - 32 ft. synthetic rope
- Heavy-duty, clevis pinned, latched hook
- Aluminum hawse fairlead (synthetic rope)
- Narrow drum allows easier mounting in tight spaces

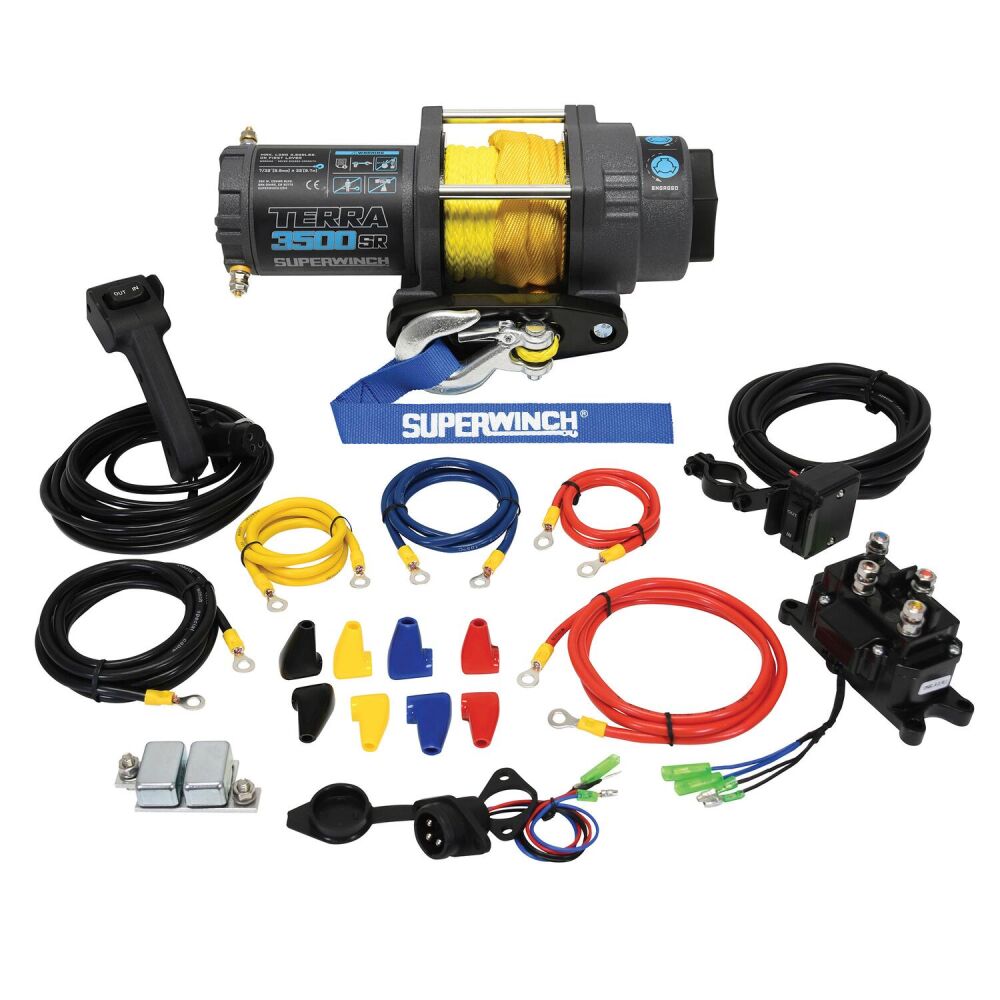

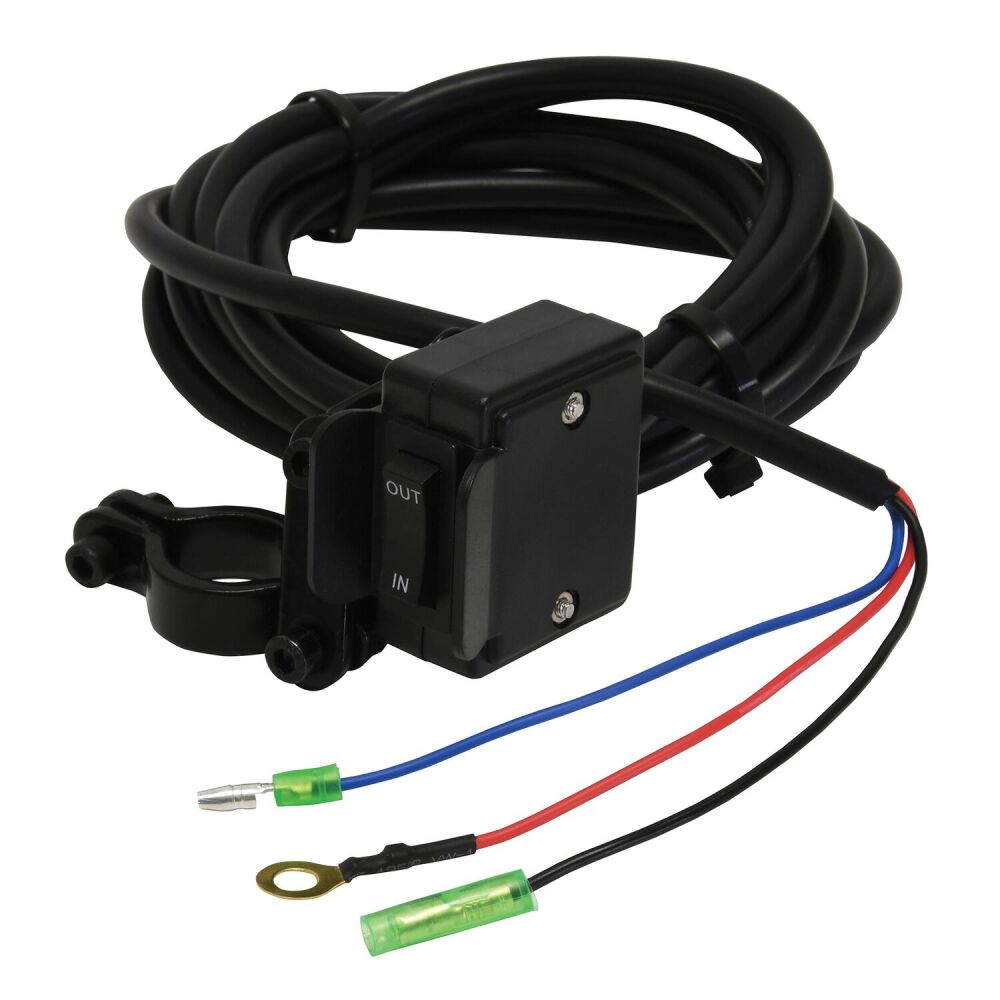

- 10’ handheld remote with handlebar rocker switch
- Universal mounting plate

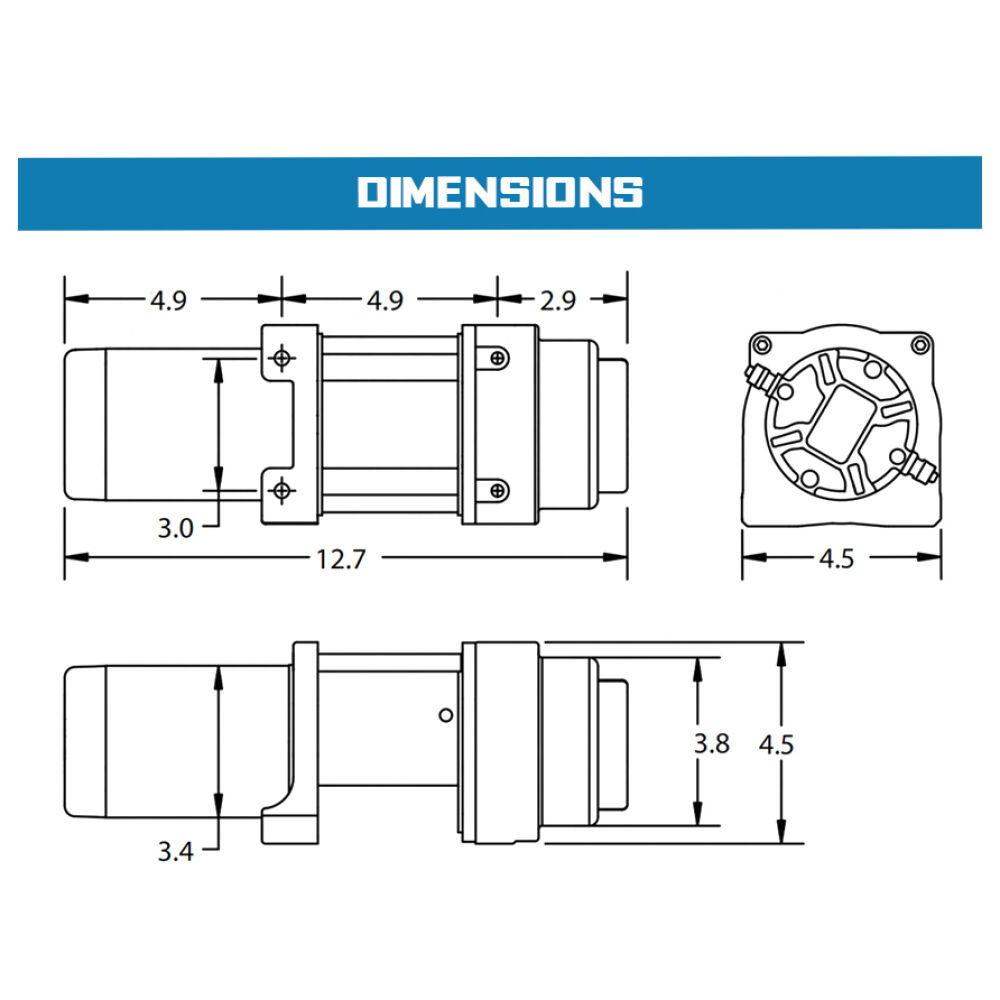

- Mounting bolt pattern 3” x 4.87”
- Gray wrinkle powder coat finish

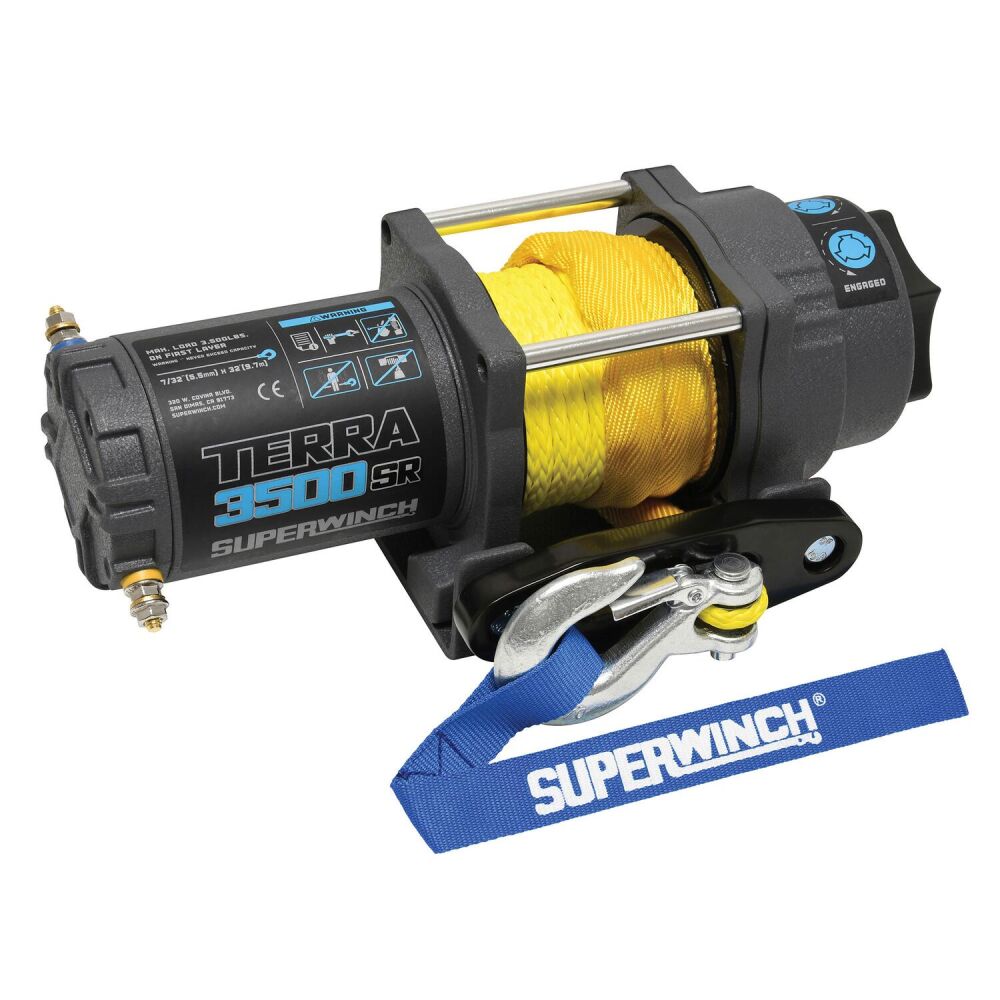

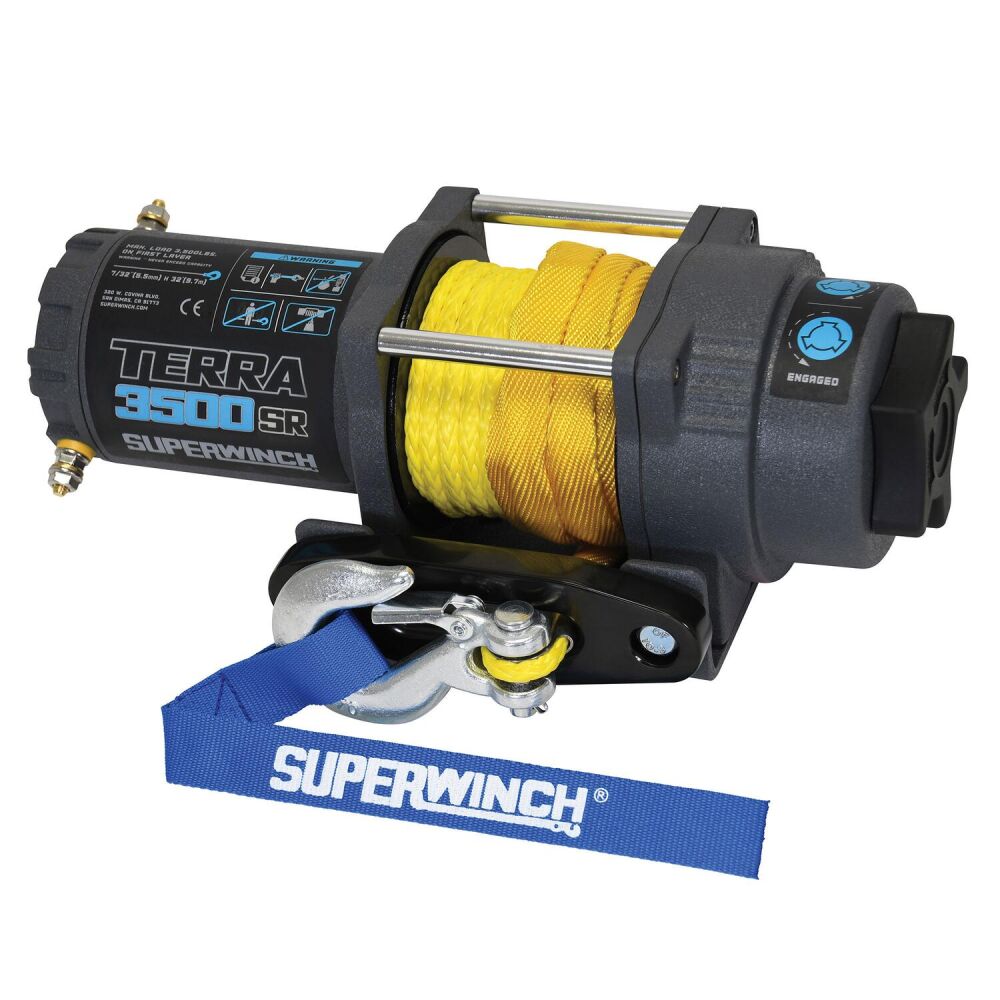

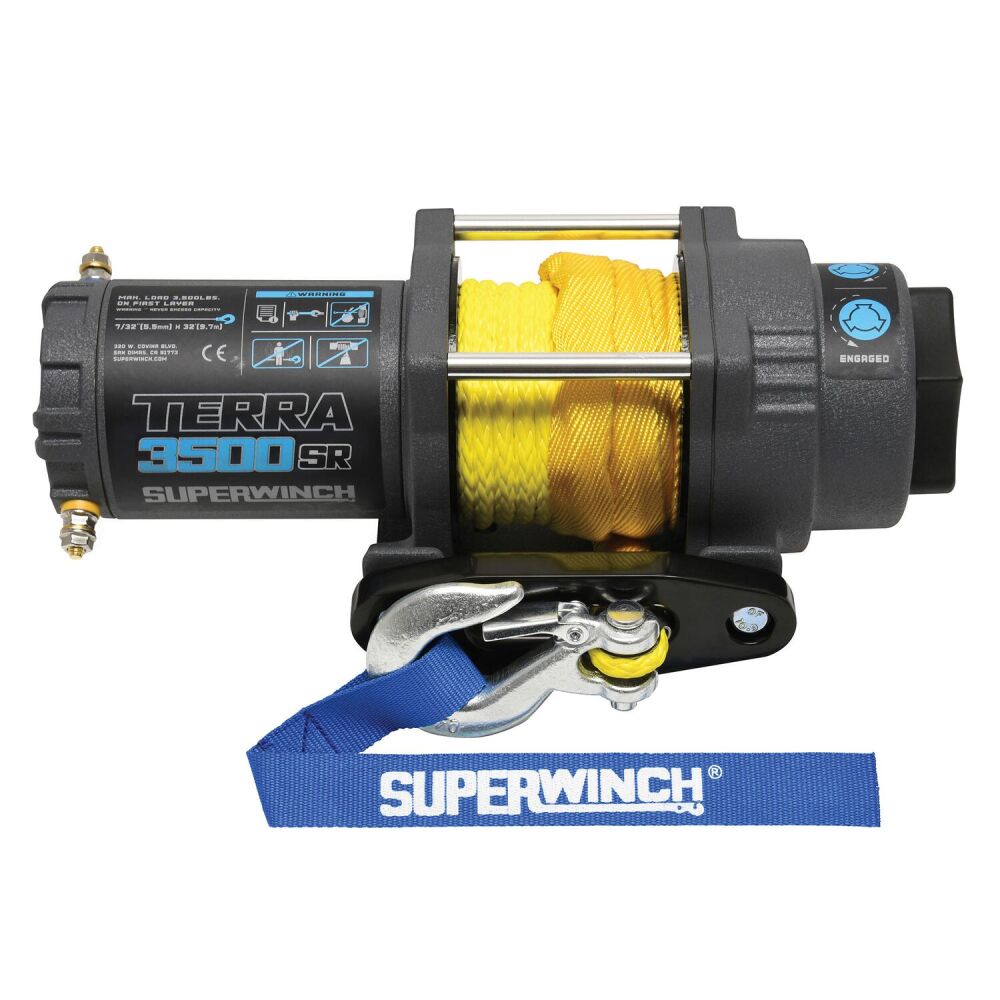

The new generation Terra Series winches from Superwinch are engineered specifically to meet the rugged demands of ATV and UTV enthusiasts. Available 3500 lbs. capacities with a choice of wire or synthetic rope, these powerful winches have been redesigned and improved inside and out. Each winch is loaded with a powerful motor, strong all steel gearing and a steel drum for superior performance and durability. All Terra Series winches are equipped with a remotely mountable control box that houses a sealed solenoid and circuit breaker to ensure reliable operation. Free spool function is simple to manage with an easy to engage ergonomic control knob. Each winch includes a 10' wired remote control and a handlebar mounted rocker switch for dependable control and maximum versatility. The Terra Series winches have an IP67 rating for water and dust protection so they are always ready for action.
