World’s best powersports winch! the Superwinch Terra Series is the standout performer in atv/utv winching. it’s not a claim we make lightly and we back it up with stronger motors, beefed up drums and durable steel cable or synthetic rope. Designed with the toughest terrains in mind, this series of atv and side by side winches, delivers a pull rating of up to 4,500 lbs.
Superwinch Terra Series ATV/UTV Utility Winches
Winches and Accessories

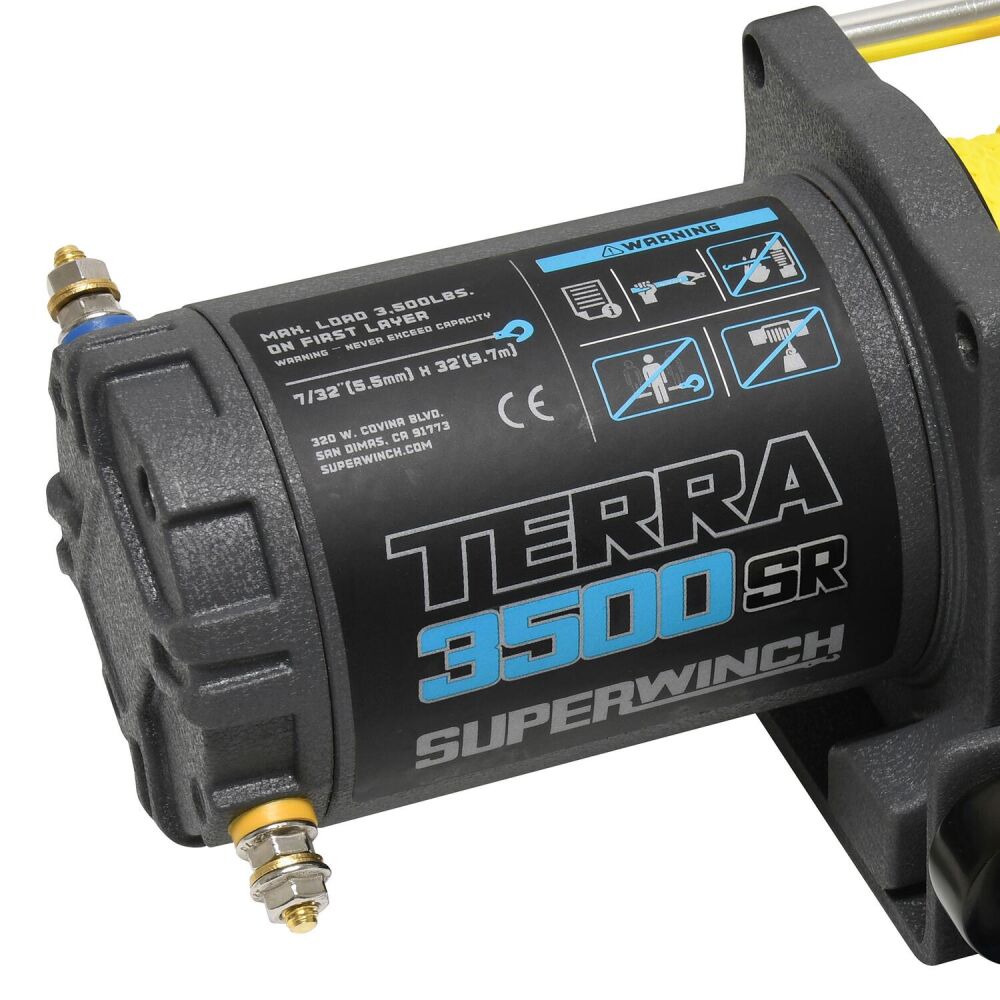

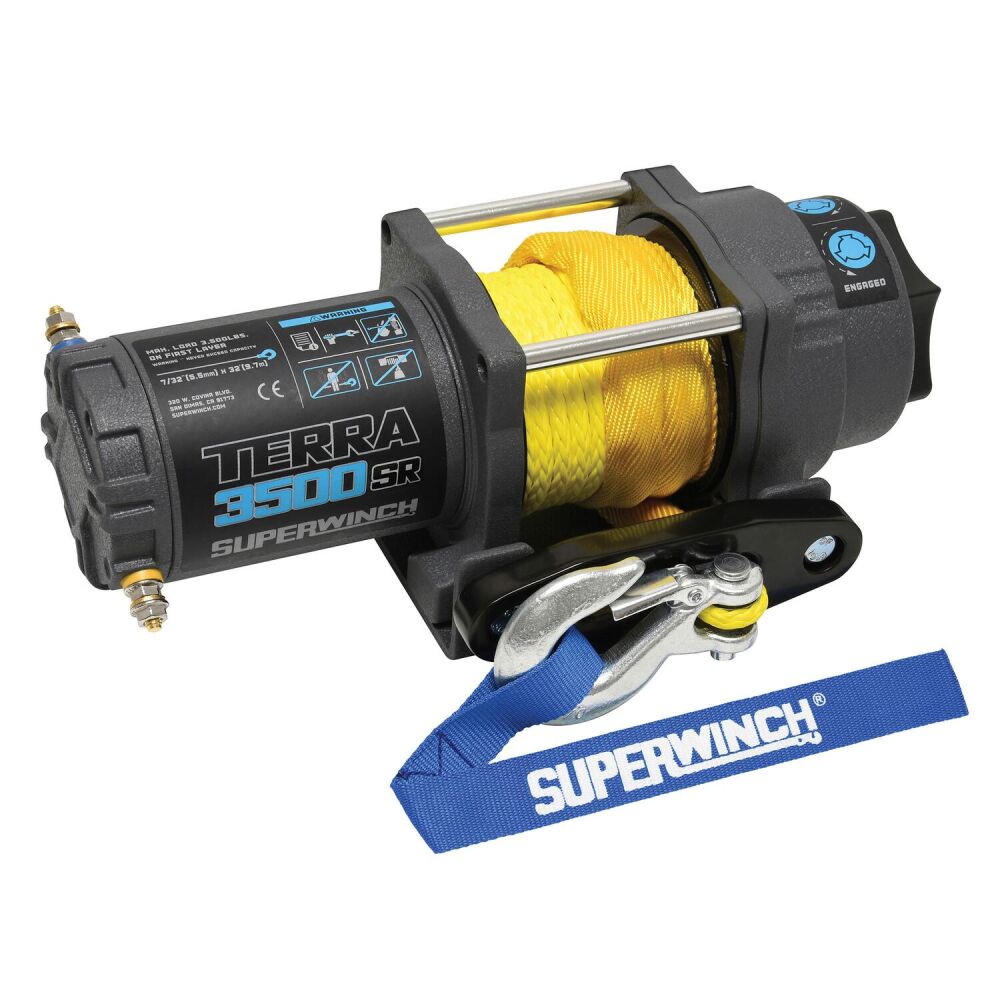

Superwinch Terra Series ATV/UTV Utility Winches
- ColorTextured Gray

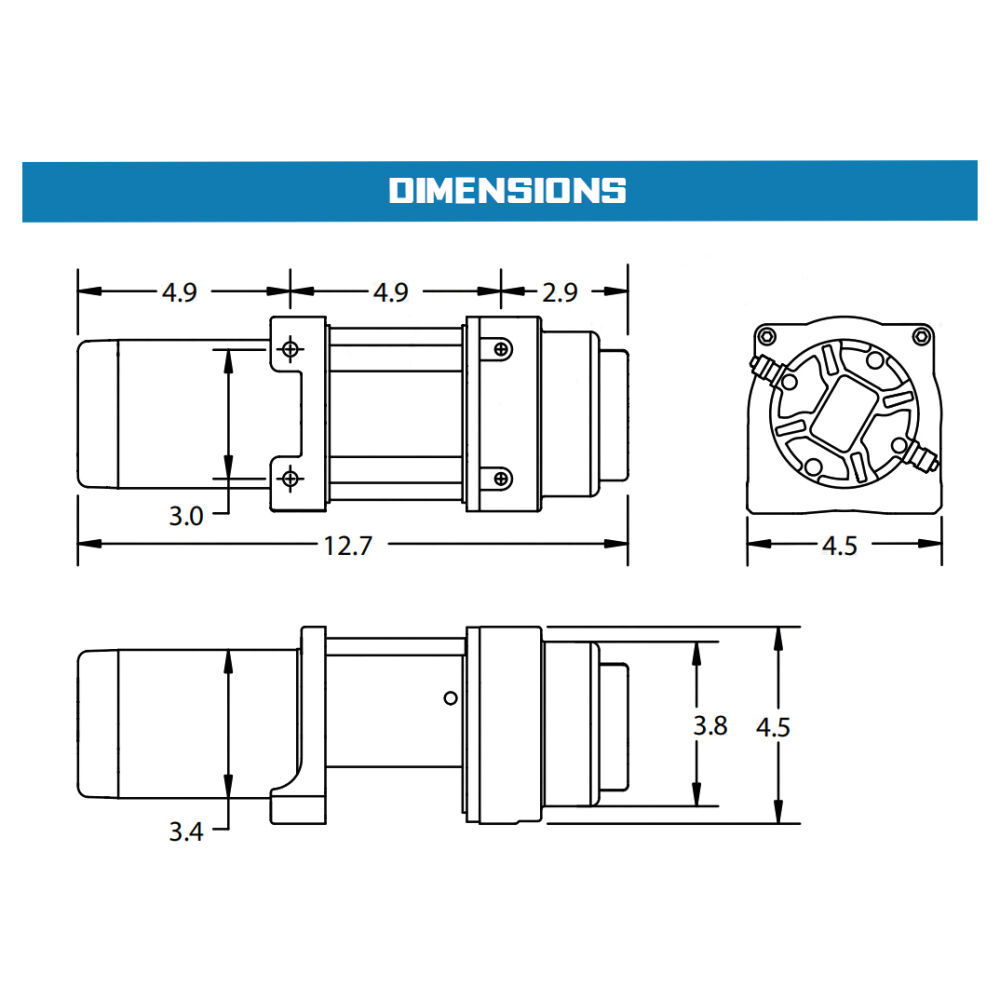

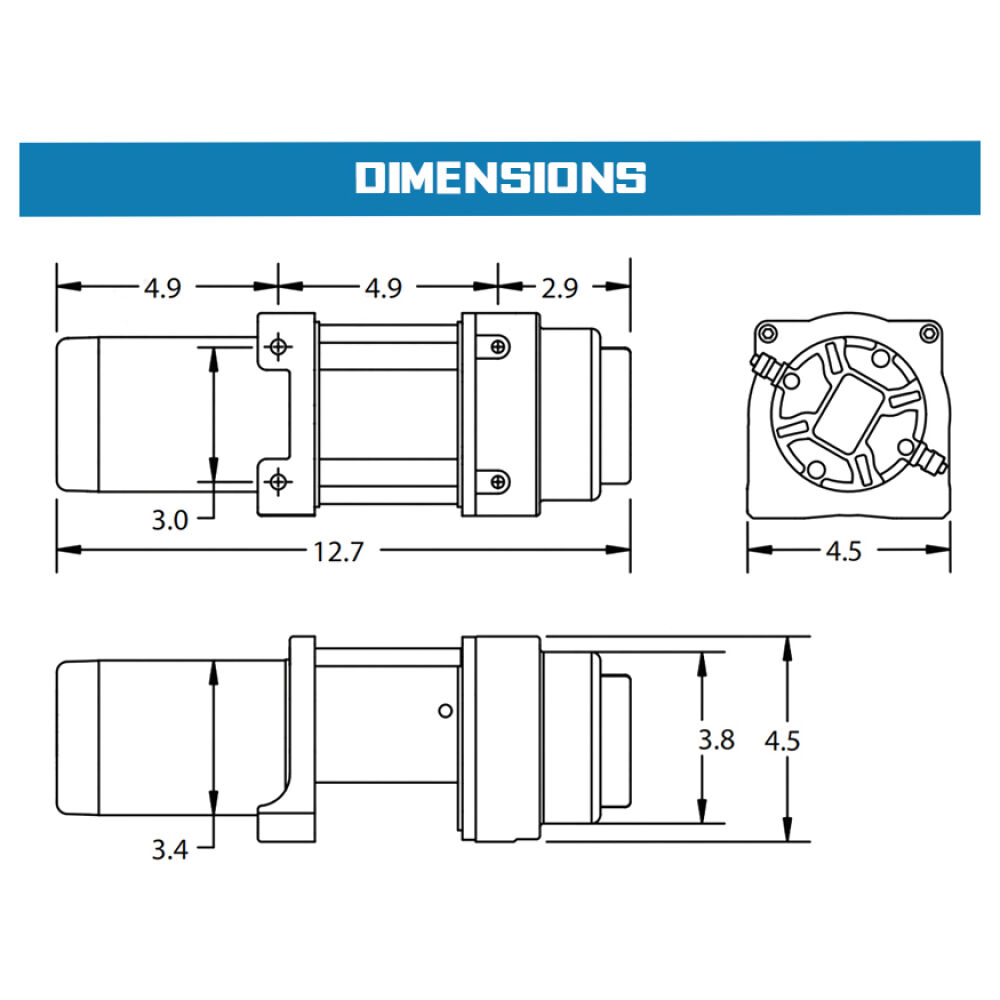

- Dimensions12.7in L x 4.5in W x 4.5in H (322mm L x 114mm W x 114mm H)
- EN CompliantNo
- FinishPowder Coated
- MaterialSteel
- Mounting Bolt Pattern3.0in x 4.87in (76mm x 124mm)
- Net. Weight17 lbs (7.7kgs)

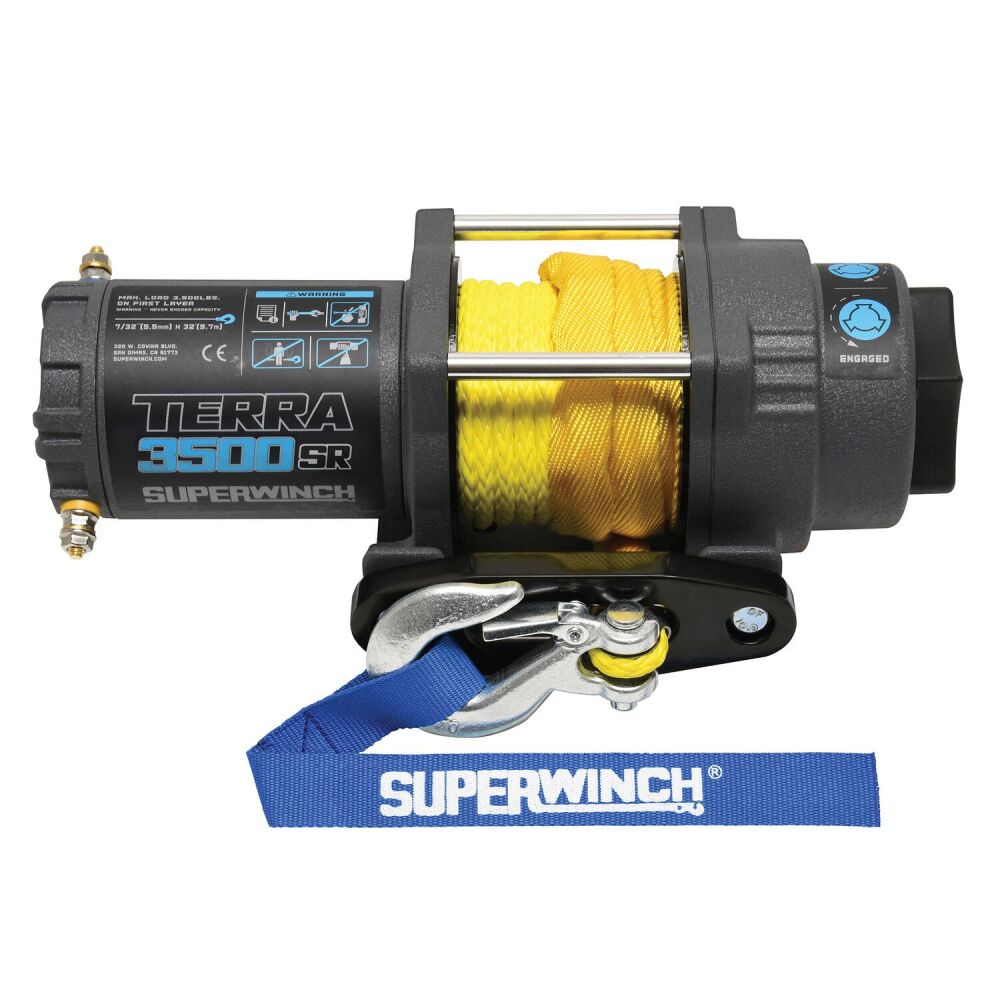

- Rated Single Line Pull (Lbs)3500

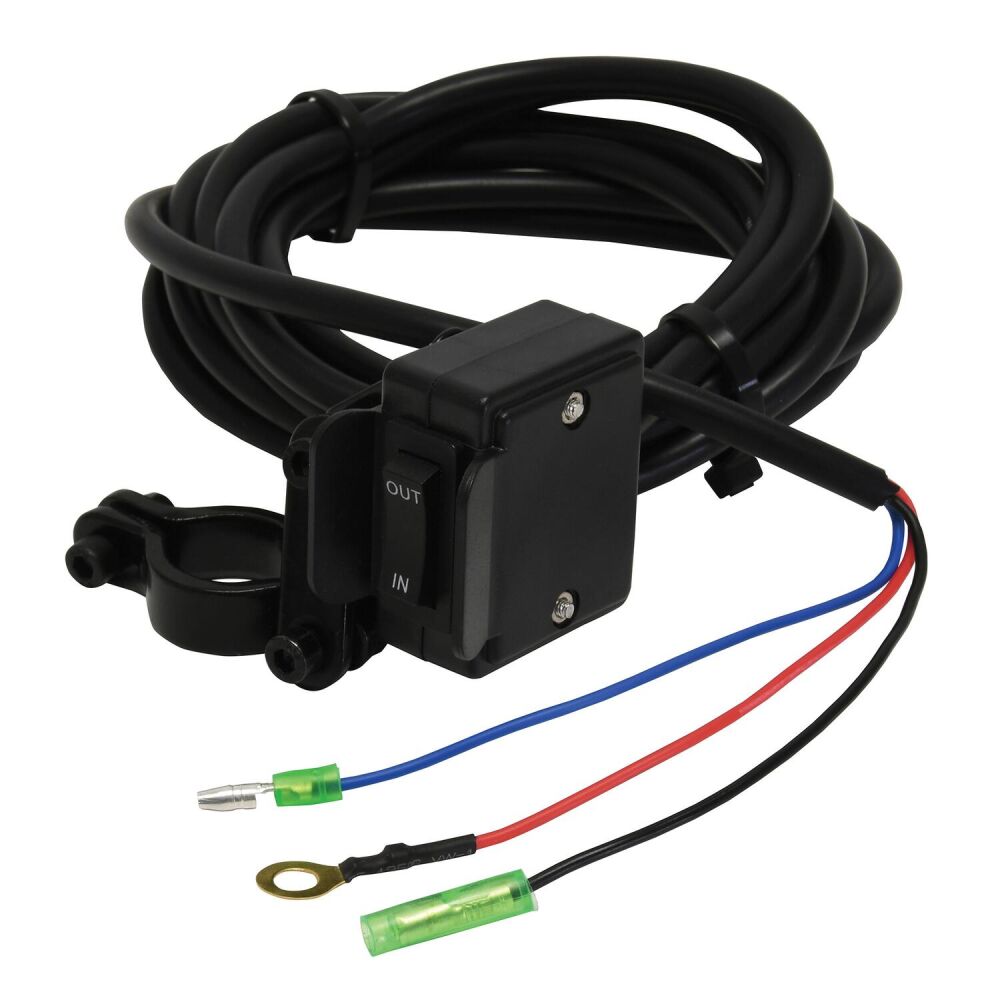

- Remote Control10 ft Rubber Sealed Hand-held plus Handle Bar Rocker Switch

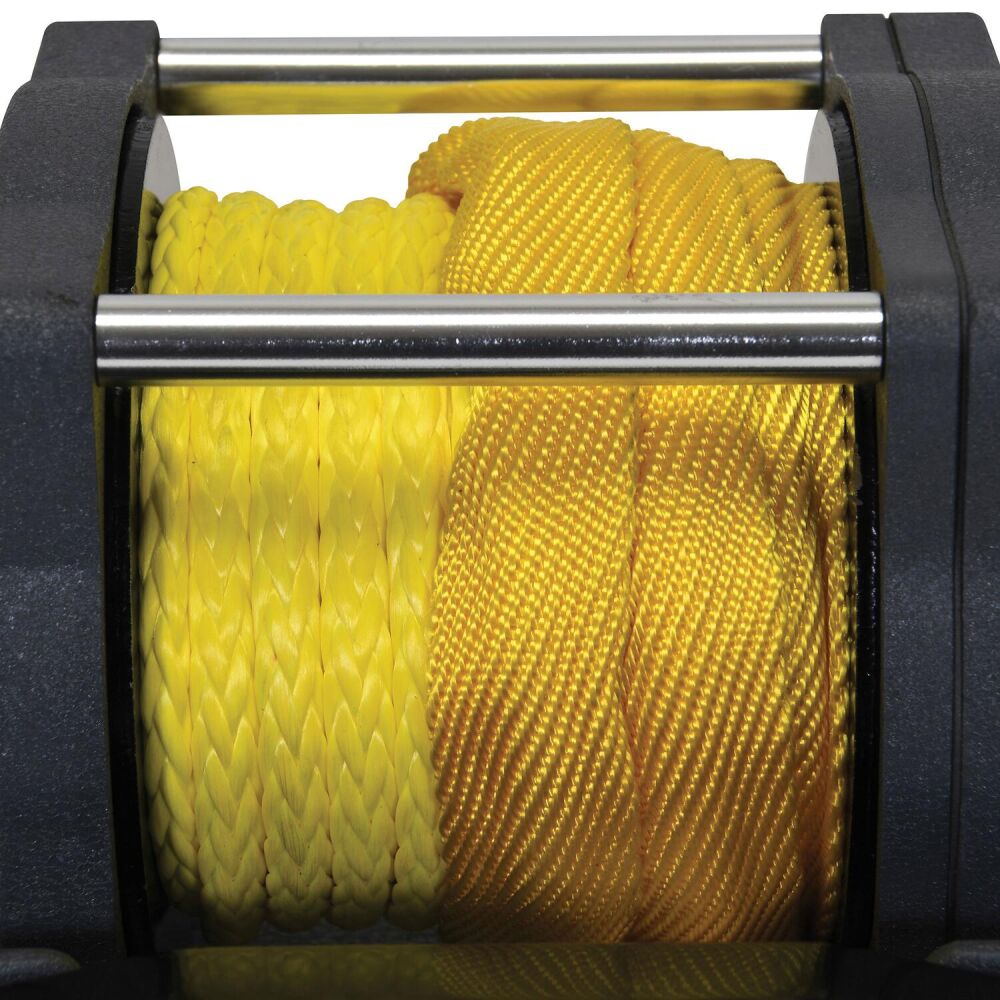

- Rope MaterialSynthetic
- WarrantyLimited Lifetime Mechanical/3 Year Limited Electrical
- Winch HookHeavy-Duty, Clevis Pinned Latched
- Winch ModelTerra

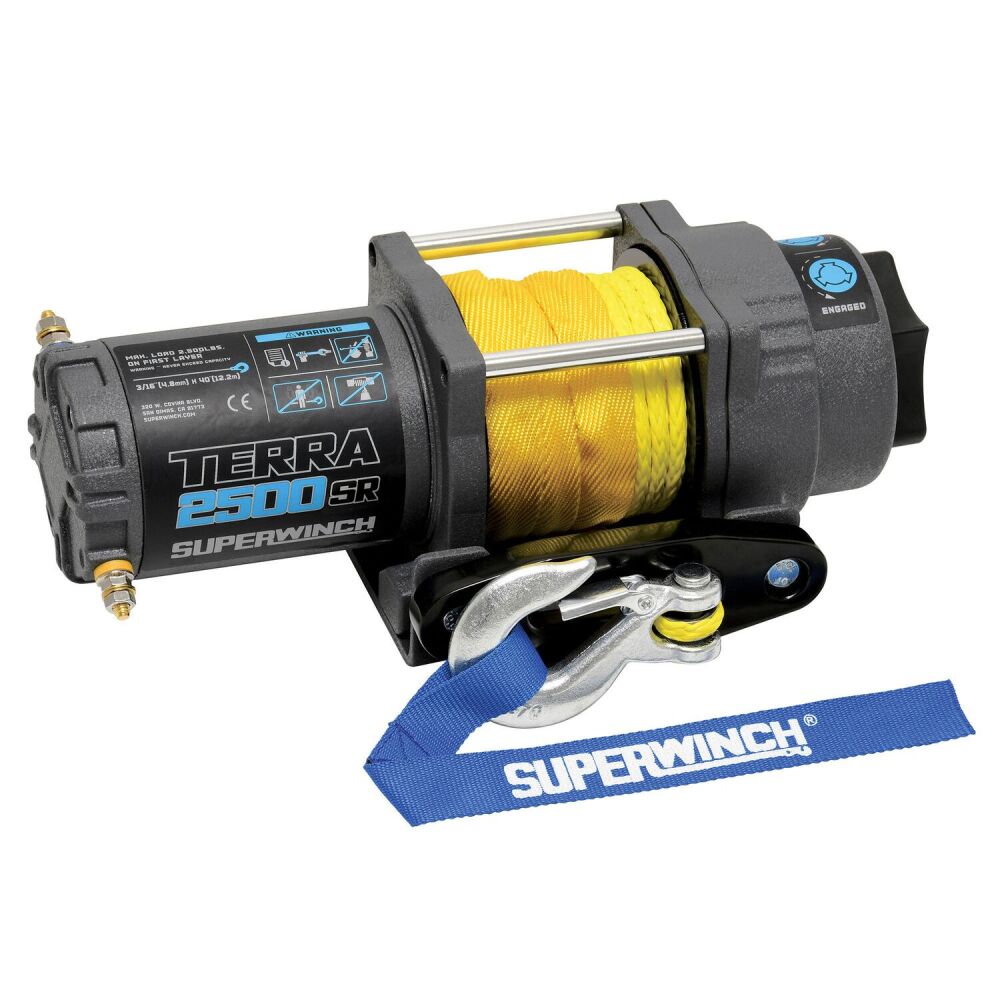

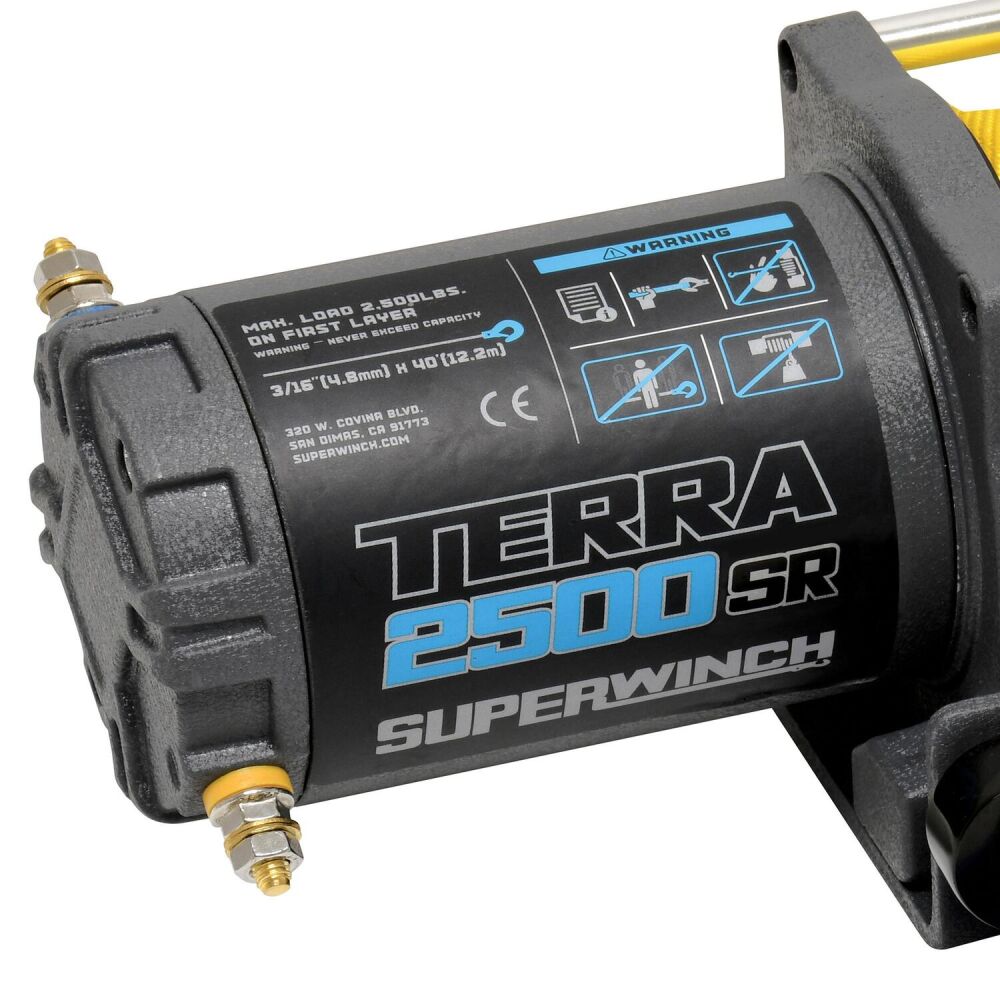

- ColorTextured Gray
- Dimensions12.7in L x 4.5in W x 4.5in H (322mm L x 114mm W x 114mm H)
- EN CompliantNo
- FinishPowder Coated
- MaterialSteel
- Motor1.5 HP, permanent magnet motor, 12V DC
- Mounting Bolt Pattern3.0in x 4.87in (76mm x 124mm)
- Net. Weight15 lbs (6.8kgs)

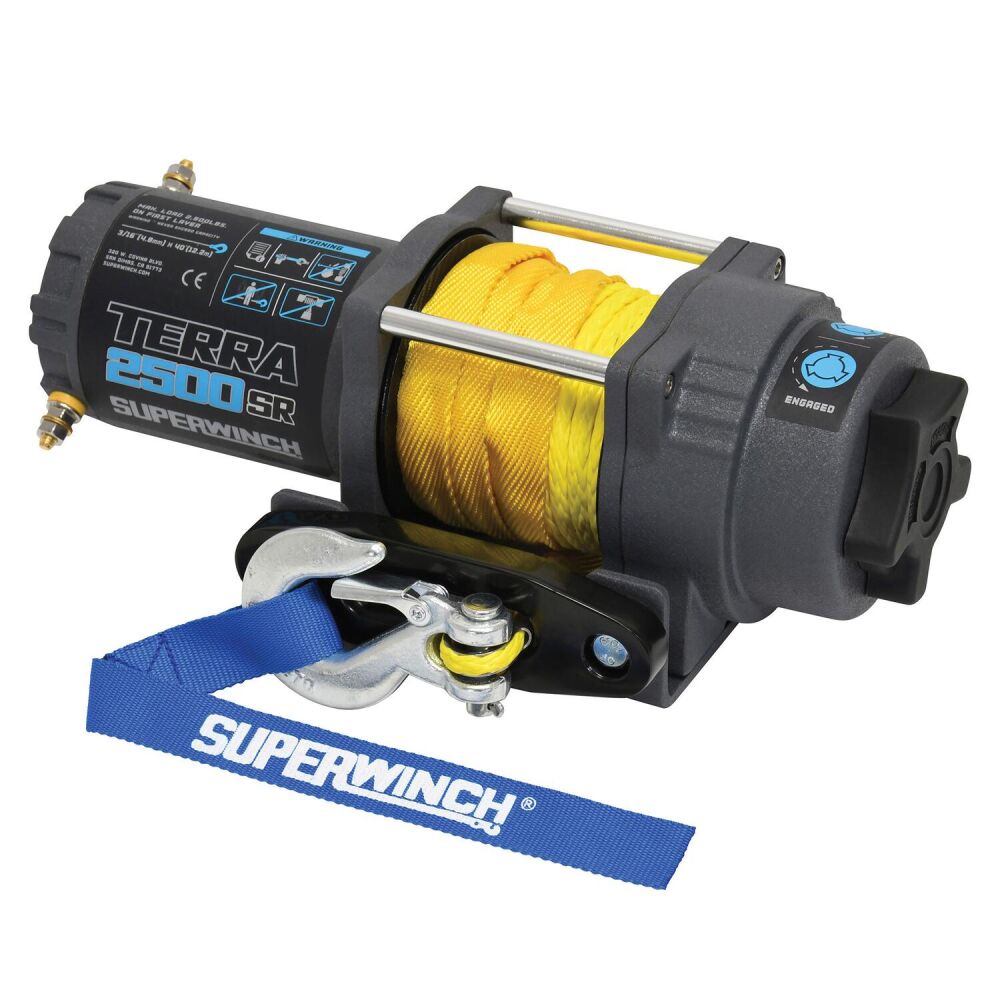

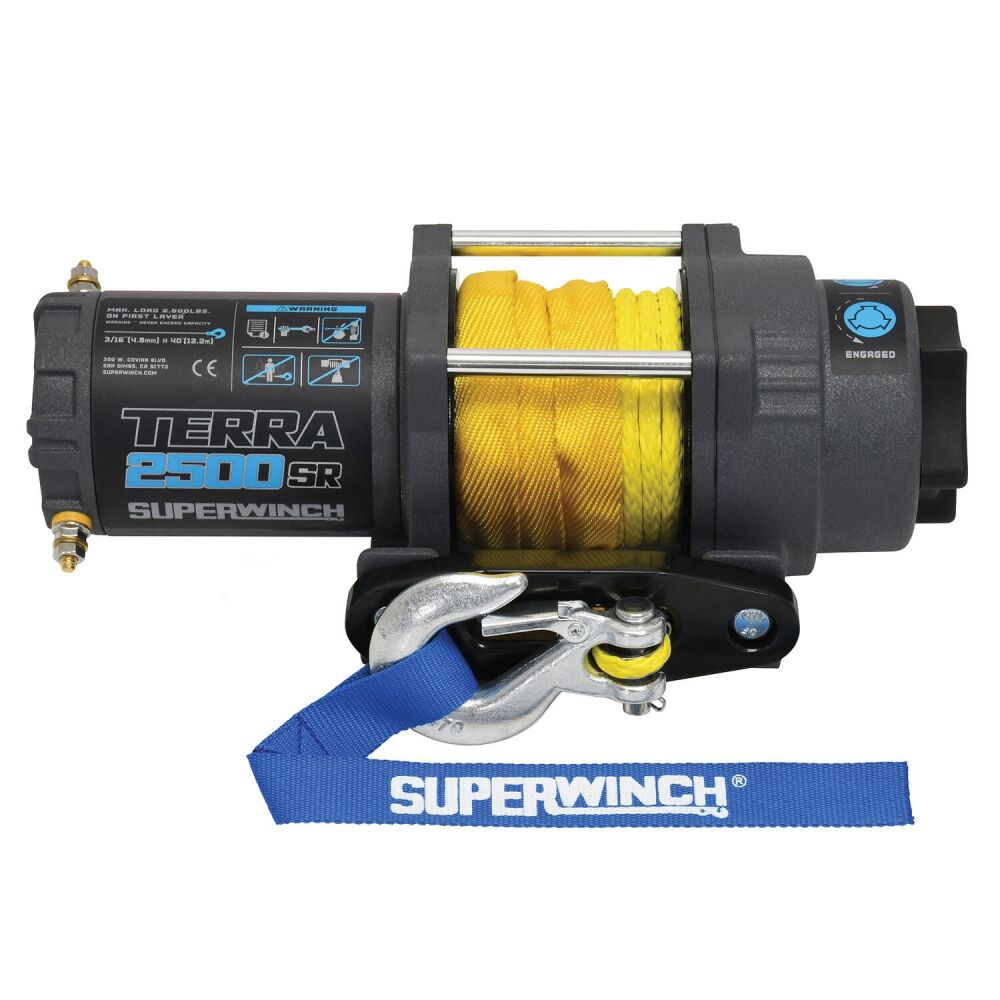

- Rated Single Line Pull (Lbs)2500
- Remote Control10 ft Rubber Sealed Hand-held plus Handle Bar Rocker Switch
- Rope3/16 in x 40 ft (4.76mm × 12.19m)

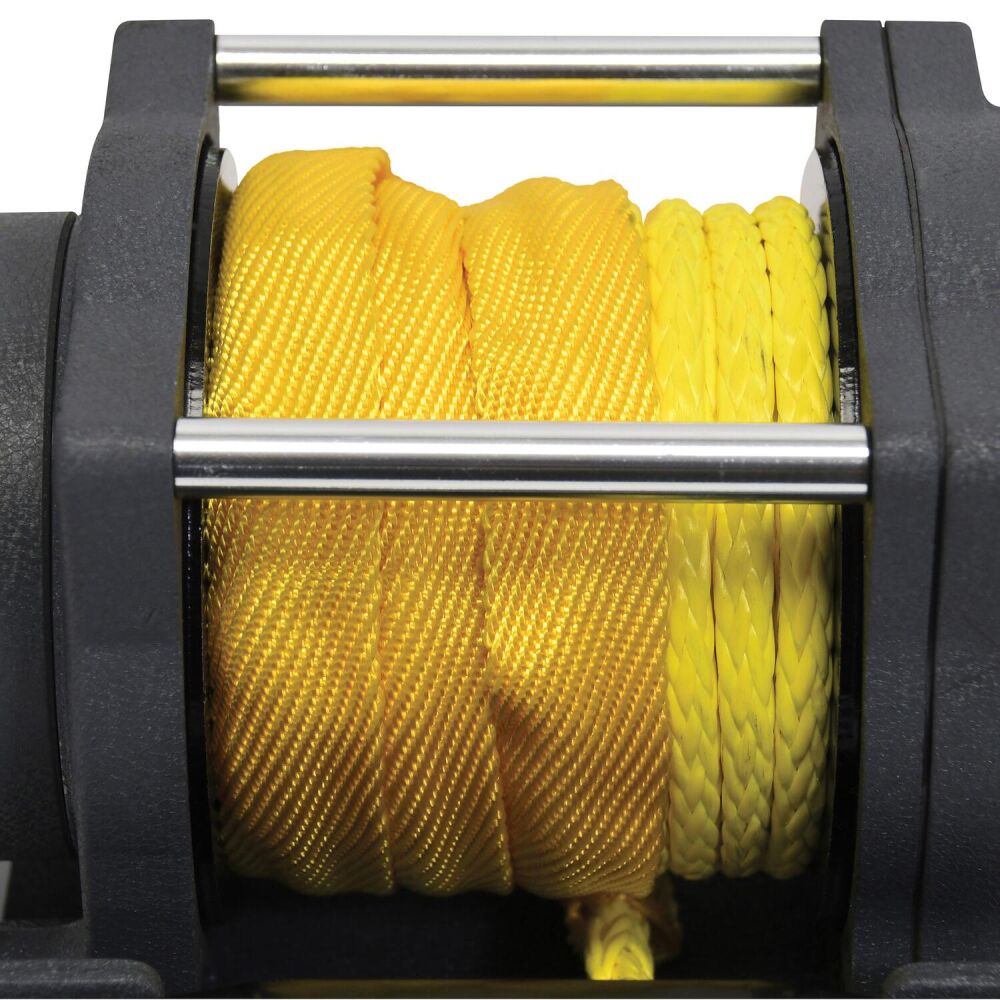

- Rope MaterialSynthetic
- WarrantyLimited Lifetime Mechanical/3 Year Limited Electrical
- Winch HookHeavy-Duty, Clevis Pinned Latched
- Winch ModelTerra

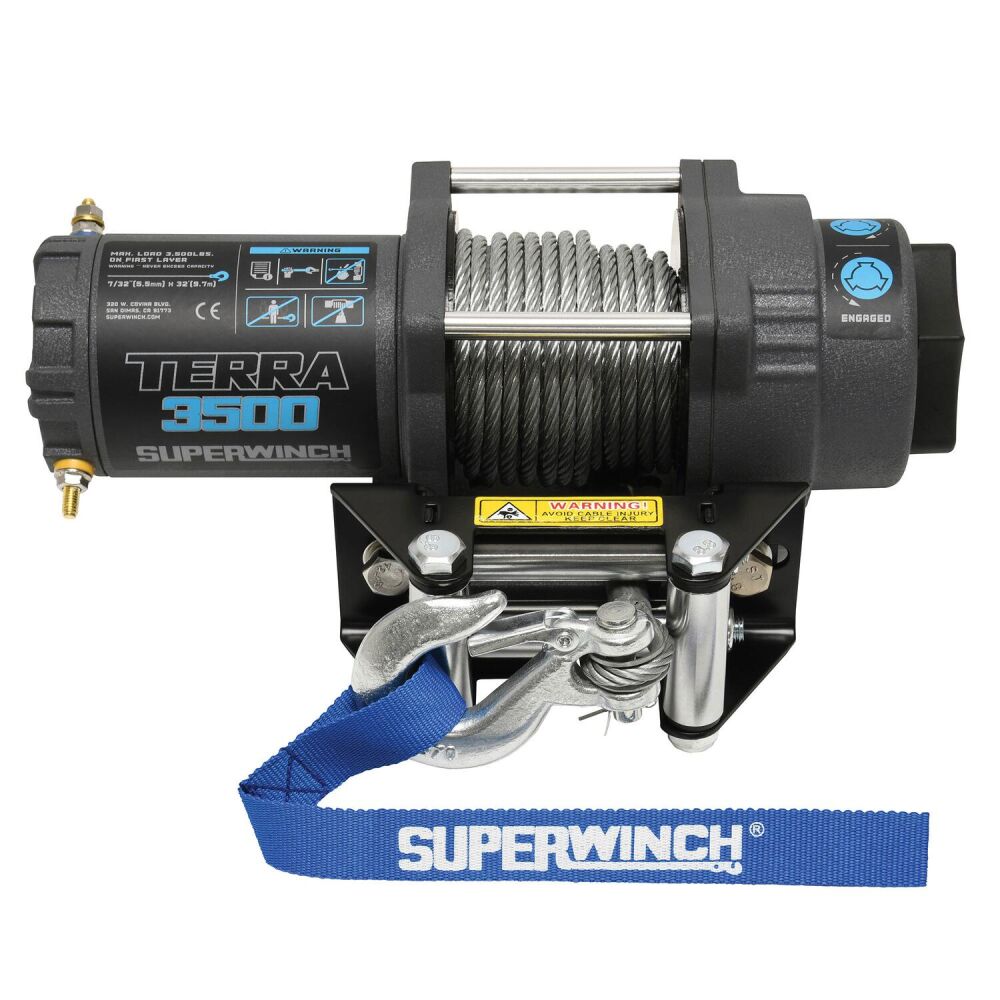

- ColorTextured Gray
- Dimensions12.7in L x 4.5in W x 4.5in H (322mm L x 114mm W x 114mm H)
- EN CompliantNo
- FinishPowder Coated
- MaterialSteel
- Motor1.6 HP, permanent magnet motor, 12V DC
- Mounting Bolt Pattern3.0in x 4.87in (76mm x 124mm)
- Net. Weight20 lbs (9.1kgs)

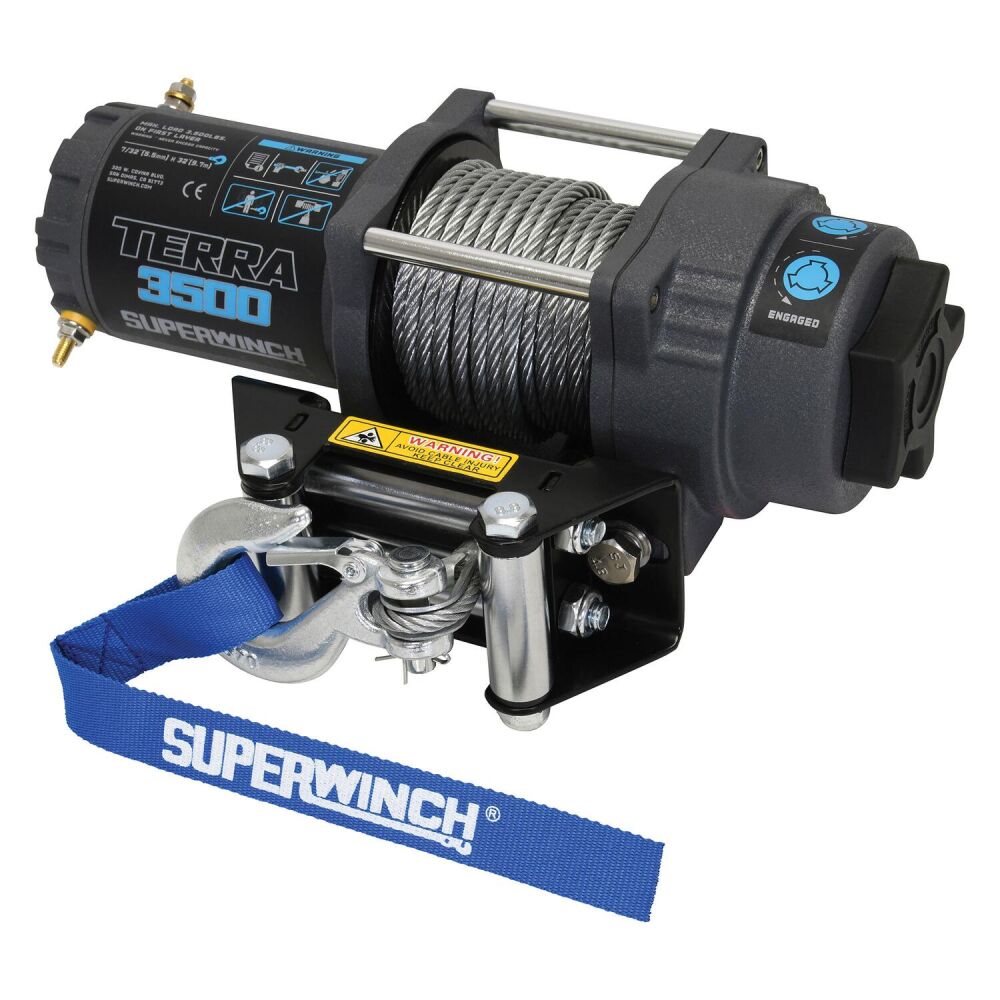

- Rated Single Line Pull (Lbs)3500

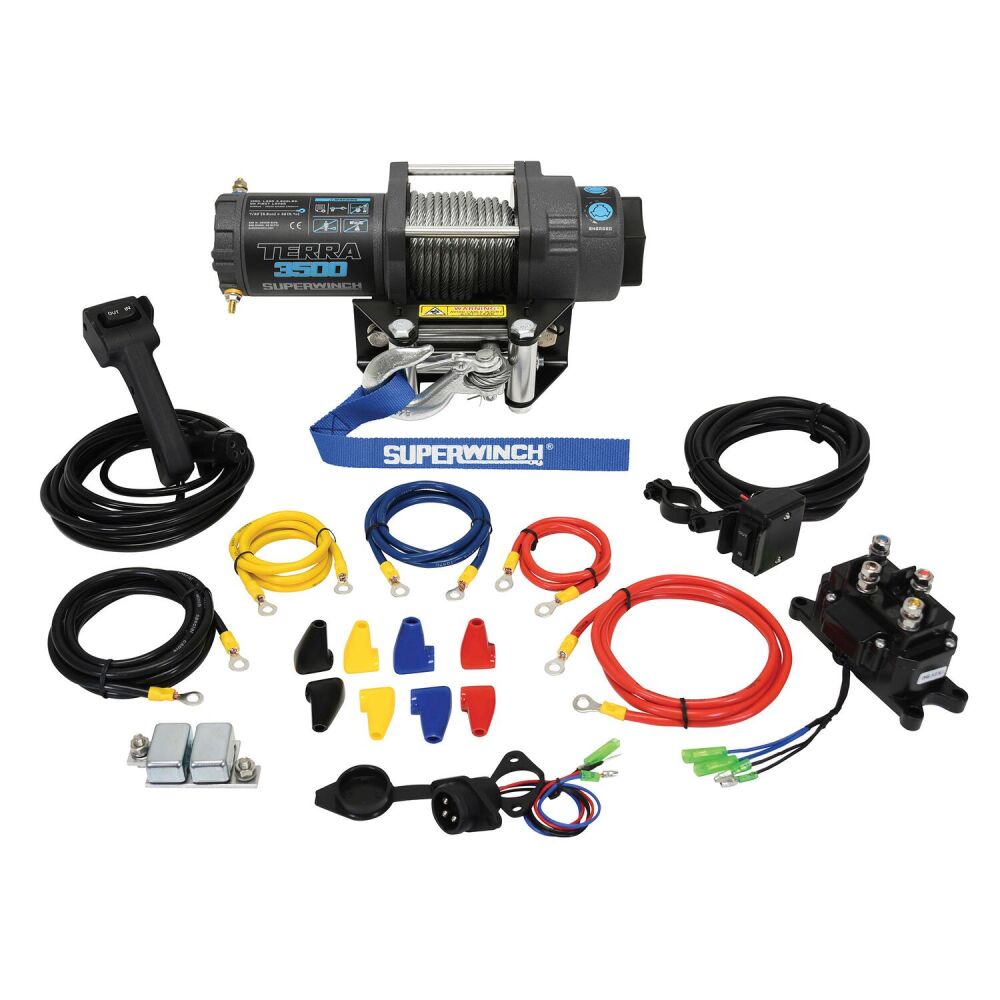

- Remote Control10 ft Rubber Sealed Hand-held plus Handle Bar Rocker Switch

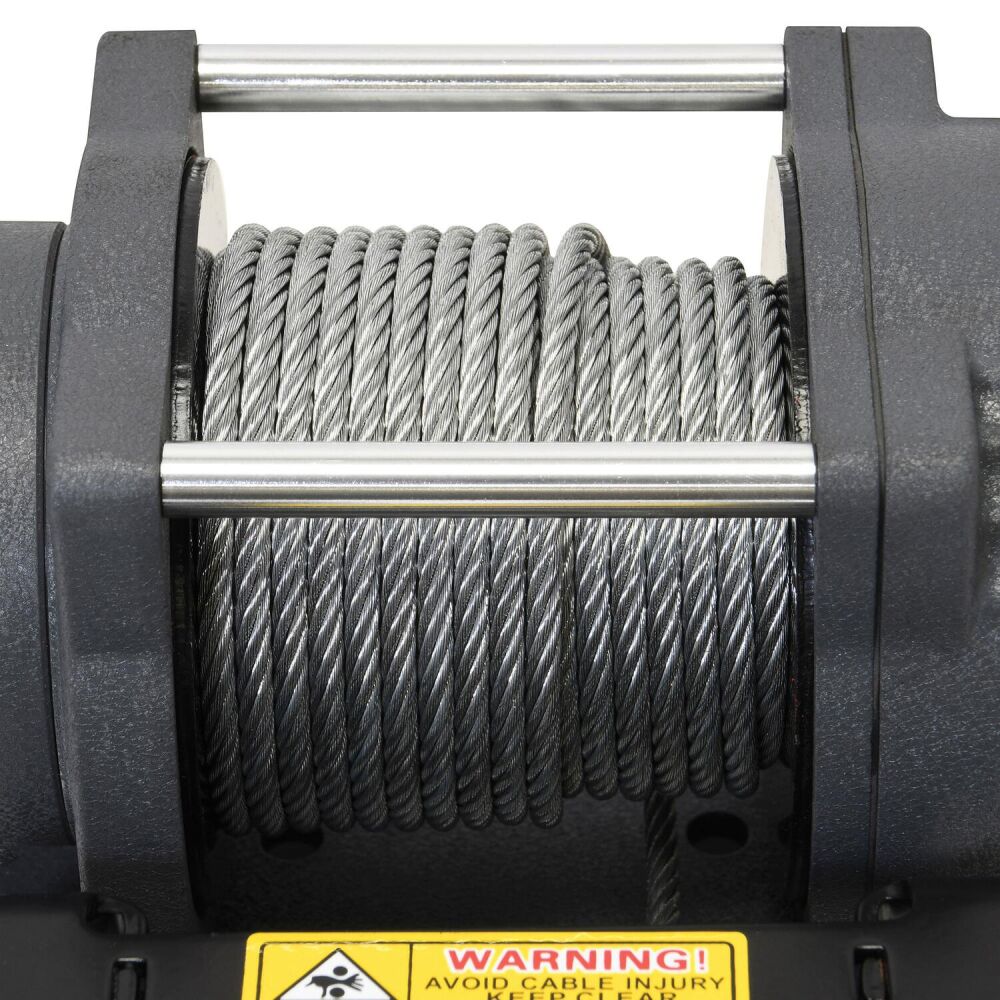

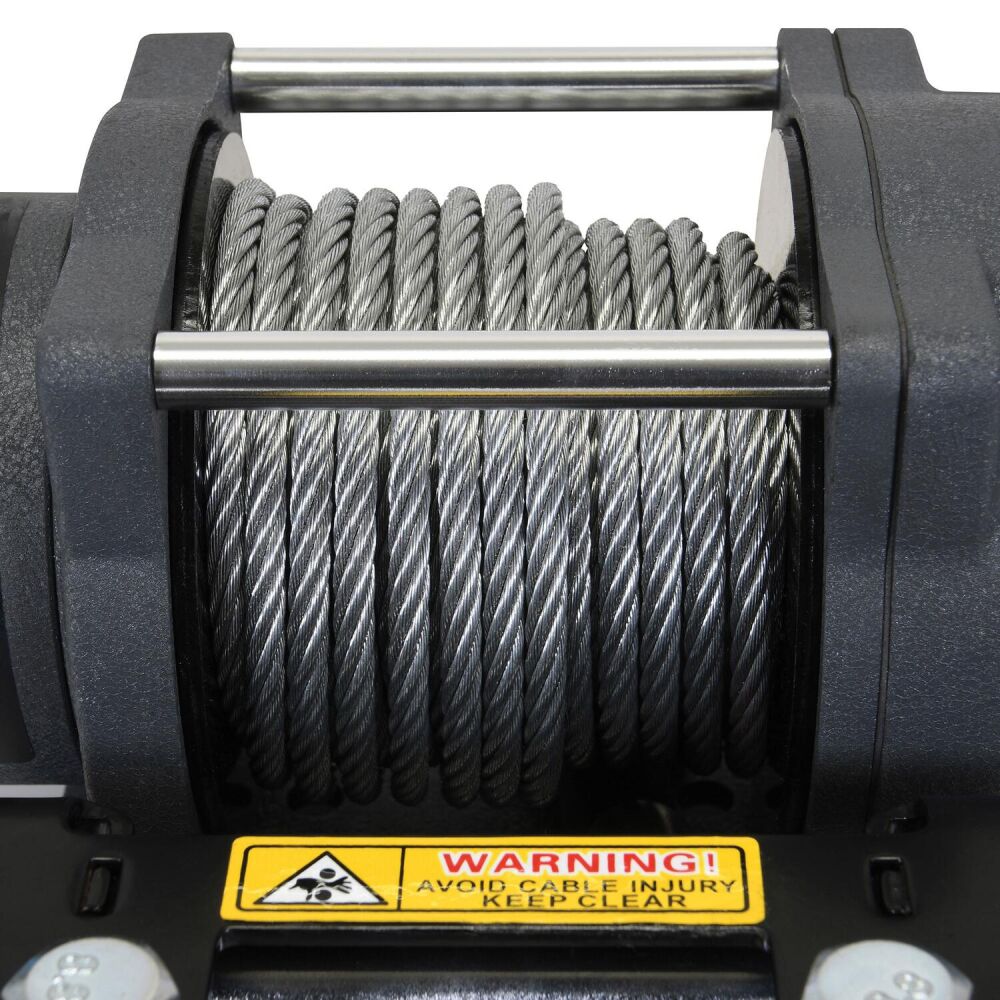

- Rope MaterialSteel Wire
- WarrantyLimited Lifetime Mechanical/3 Year Limited Electrical
- Winch HookHeavy-Duty, Clevis Pinned Latched
- Winch ModelTerra

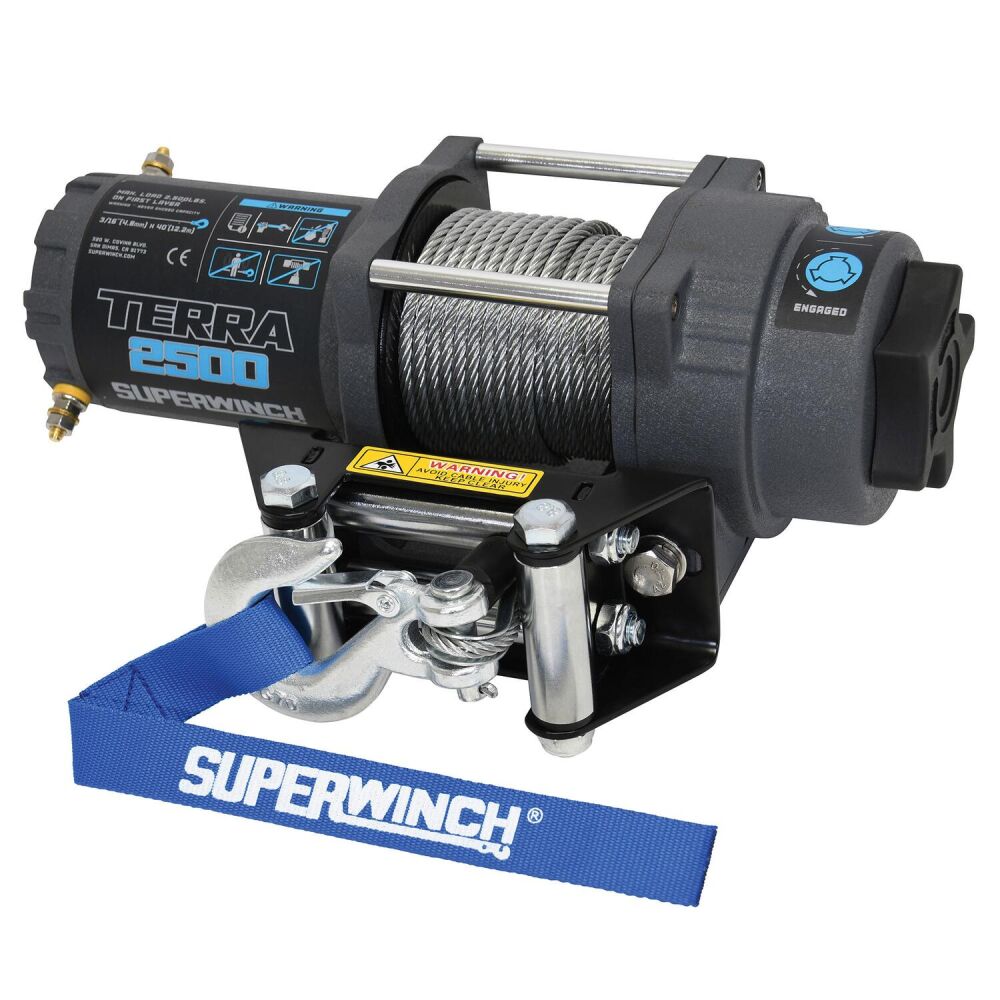

- ColorTextured Gray
- Dimensions12.7in L x 4.5in W x 4.5in H (322mm L x 114mm W x 114mm H)
- EN CompliantNo
- FinishPowder Coated
- MaterialSteel
- Motor1.5 HP, permanent magnet motor, 12V DC
- Mounting Bolt Pattern3.0in x 4.87in (76mm x 124mm)
- Net. Weight18 lbs (8.2kgs)
- Rated Single Line Pull (Lbs)2500
- Remote Control10 ft Rubber Sealed Hand-held plus Handle Bar Rocker Switch
- Rope3/16 in x 40 ft (4.76mm × 12.19m)
- Rope MaterialSteel Wire
- WarrantyLimited Lifetime Mechanical/3 Year Limited Electrical
- Winch HookHeavy-Duty, Clevis Pinned Latched
- Winch ModelTerra

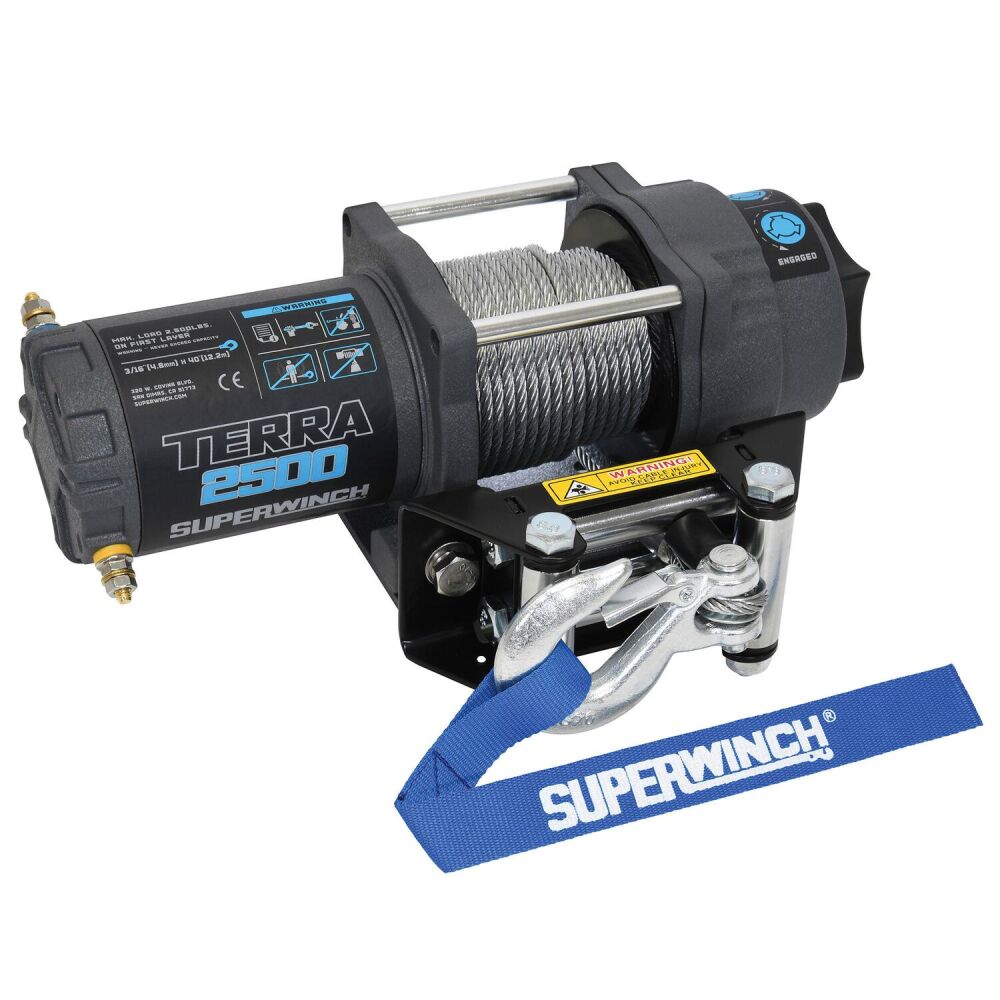

Superwinch Terra Series ATV/UTV Utility Winches
10 Images
Mechanical Warranty: Limited Lifetime
Electronic Warrany: Limited 3 Year
