Superwinch SX Series Winches

Winches and Accessories

Superwinch SX Series Winches

This product is universal fit. Please check fit and options before purchase.
Select Items to
Add to List

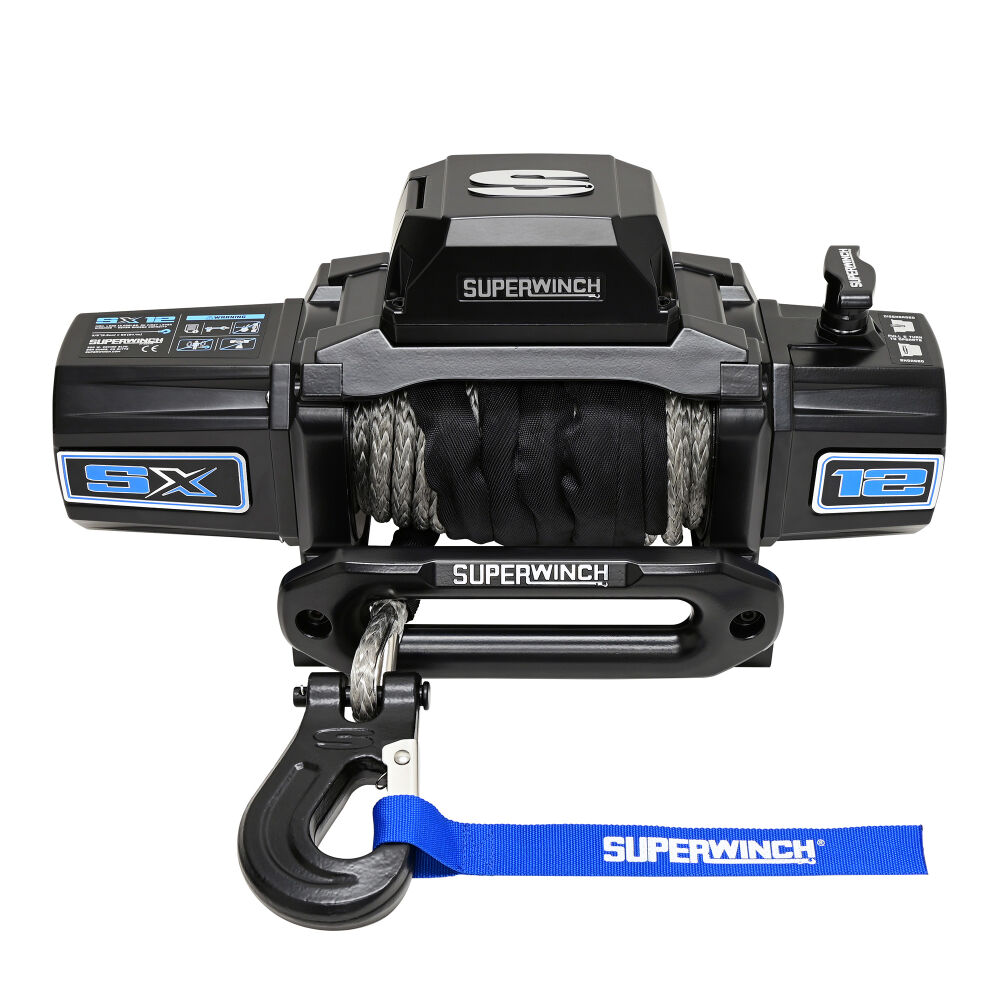

1712204
  • ColorBlack

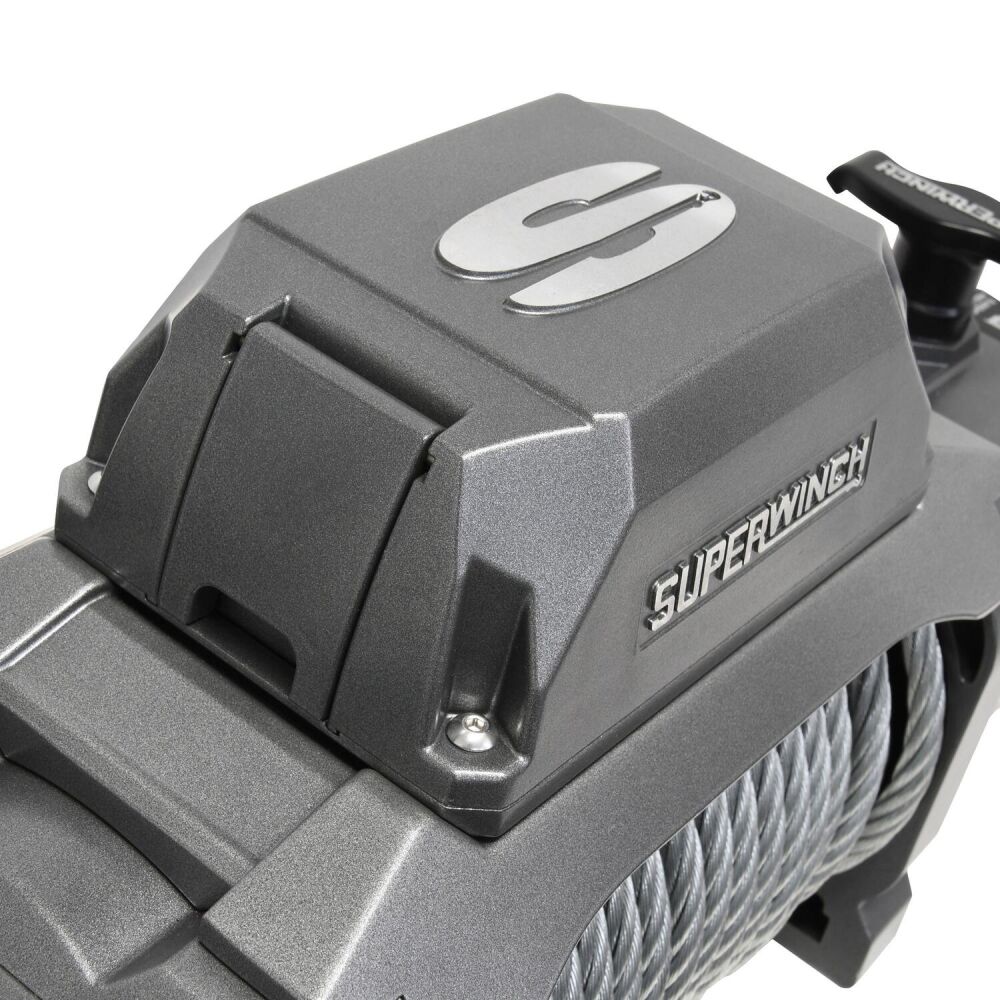

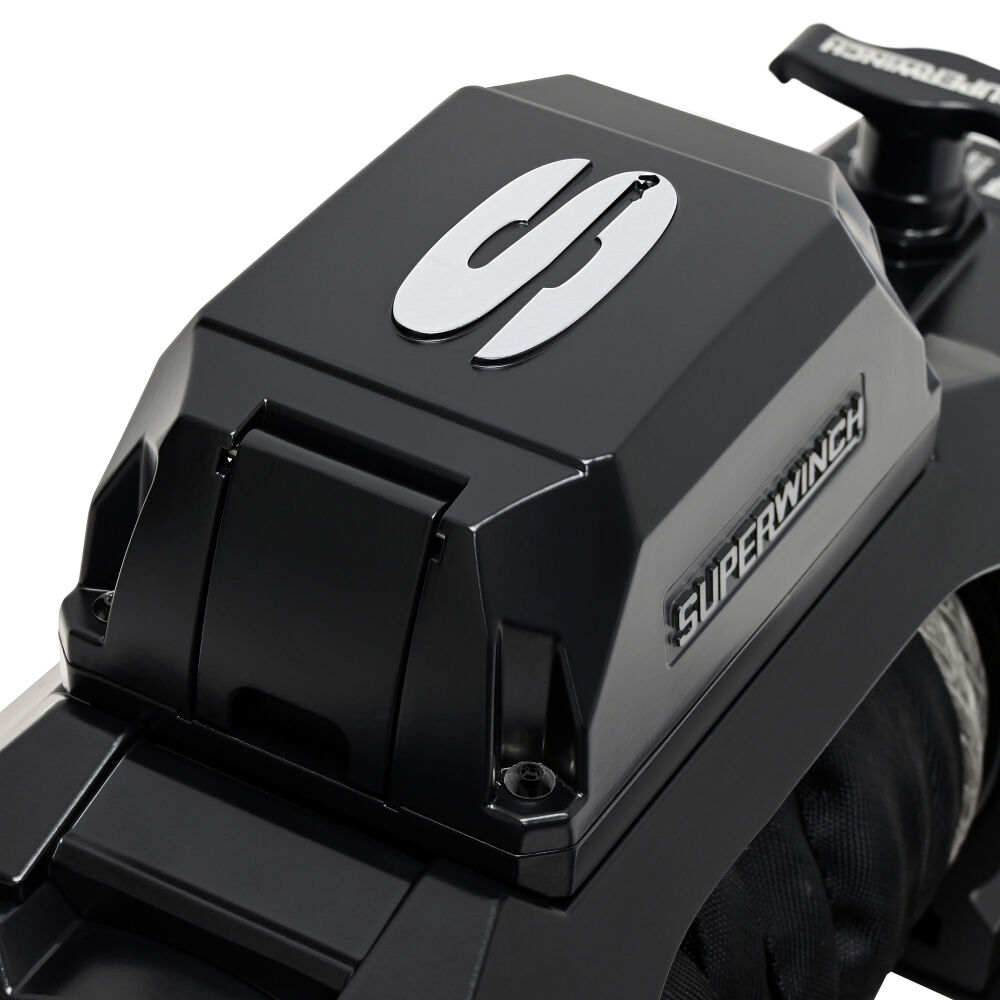

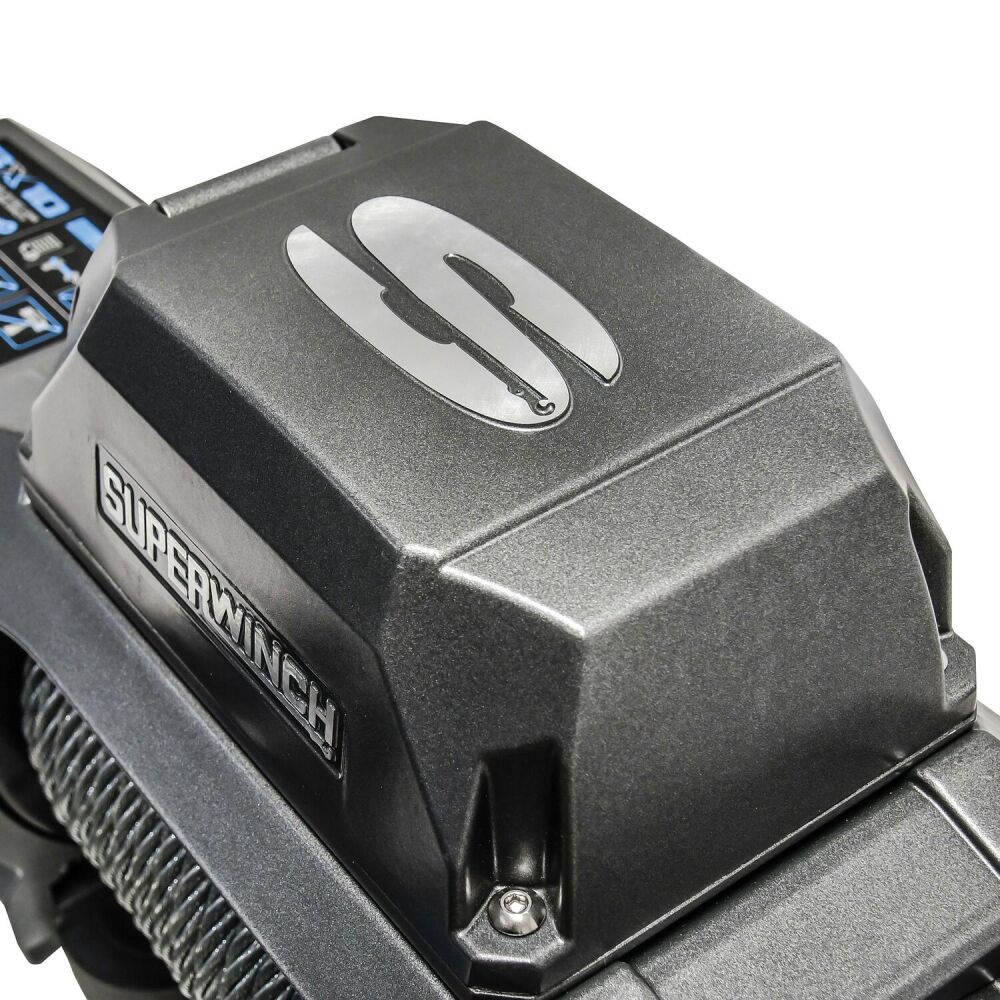

  • Control BoxRelocatable Die-Cast Aluminum

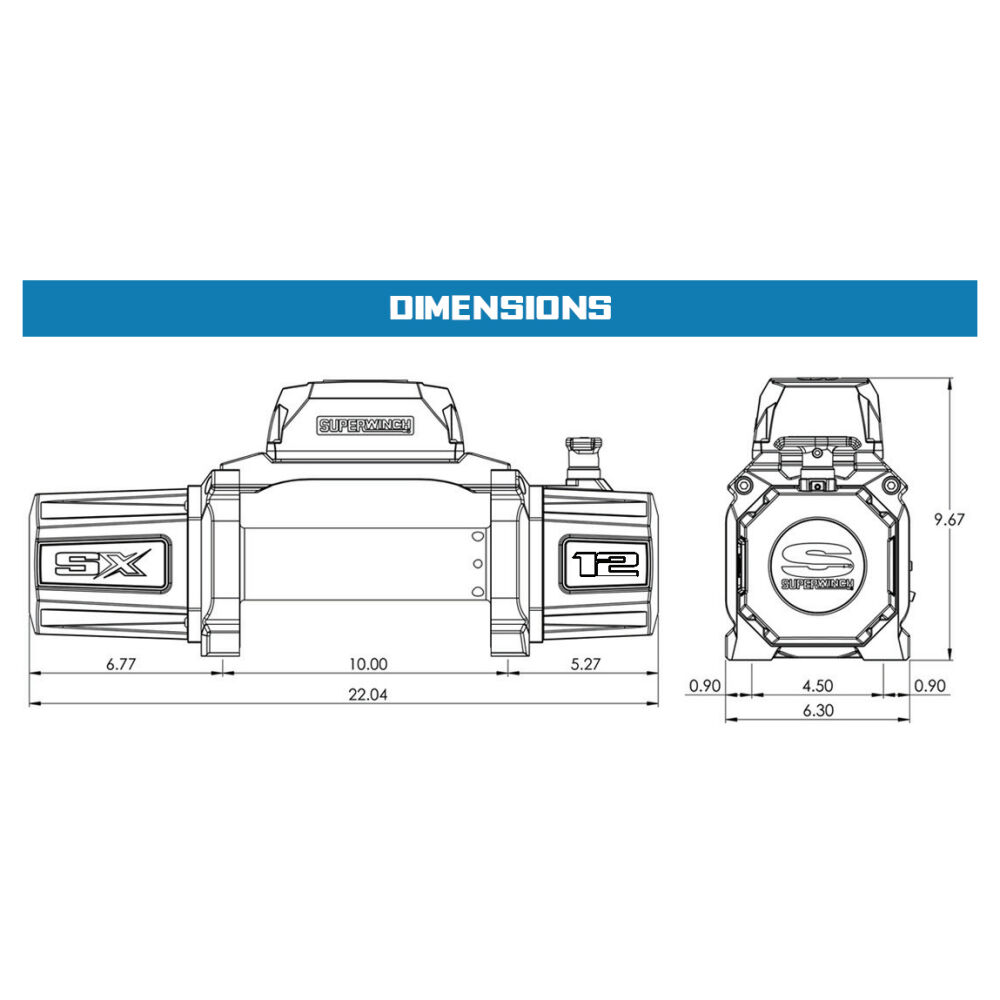

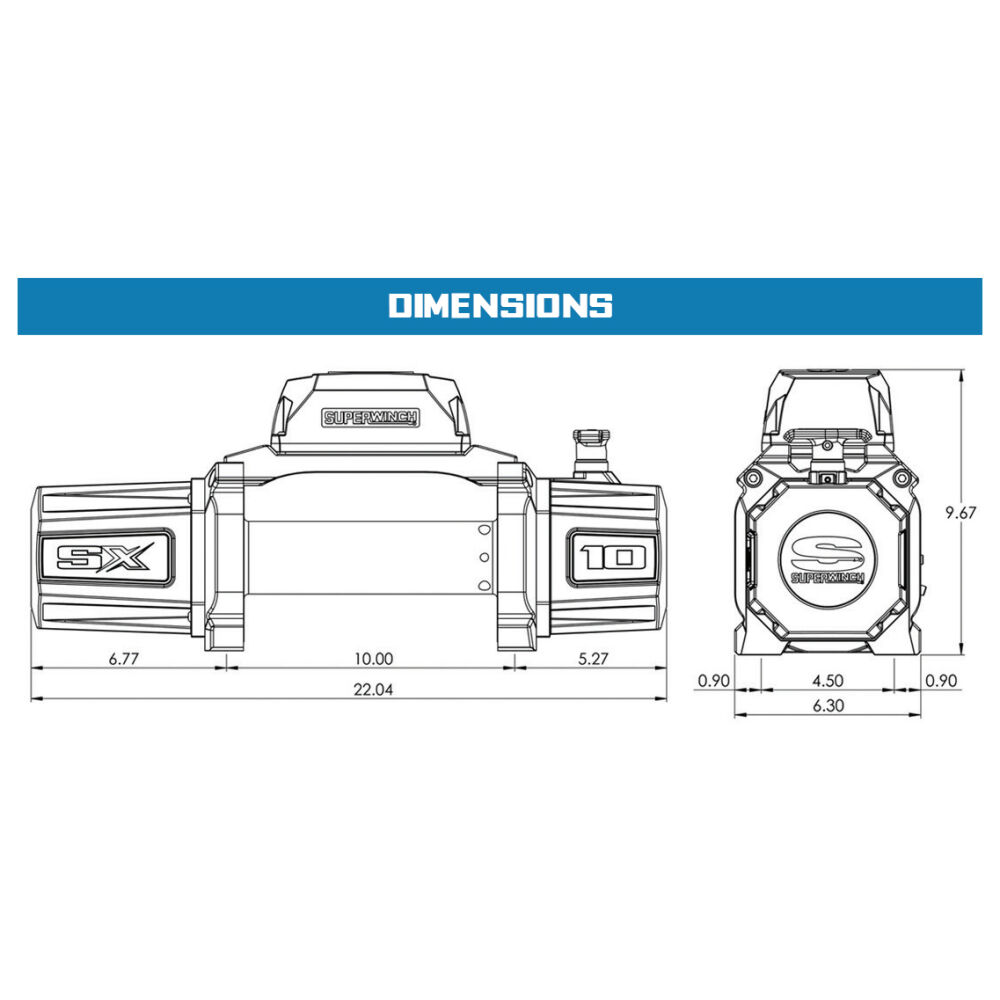

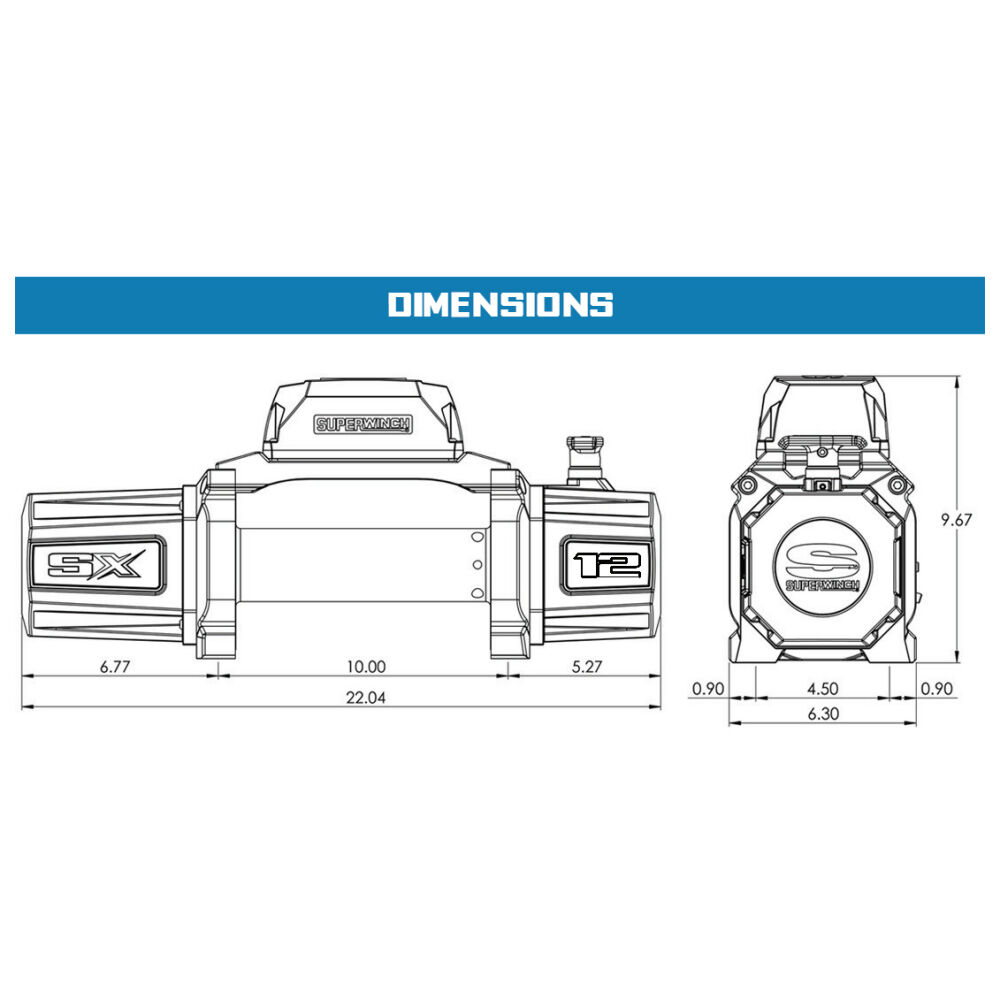

  • Dimensions22.04in L x 6.3in W x 9.67in H (559.8mm L x 160.02mm W x 245.62mm H)
  • Drilling RequiredNo
  • EN CompliantNo
  • FinishPowder Coated

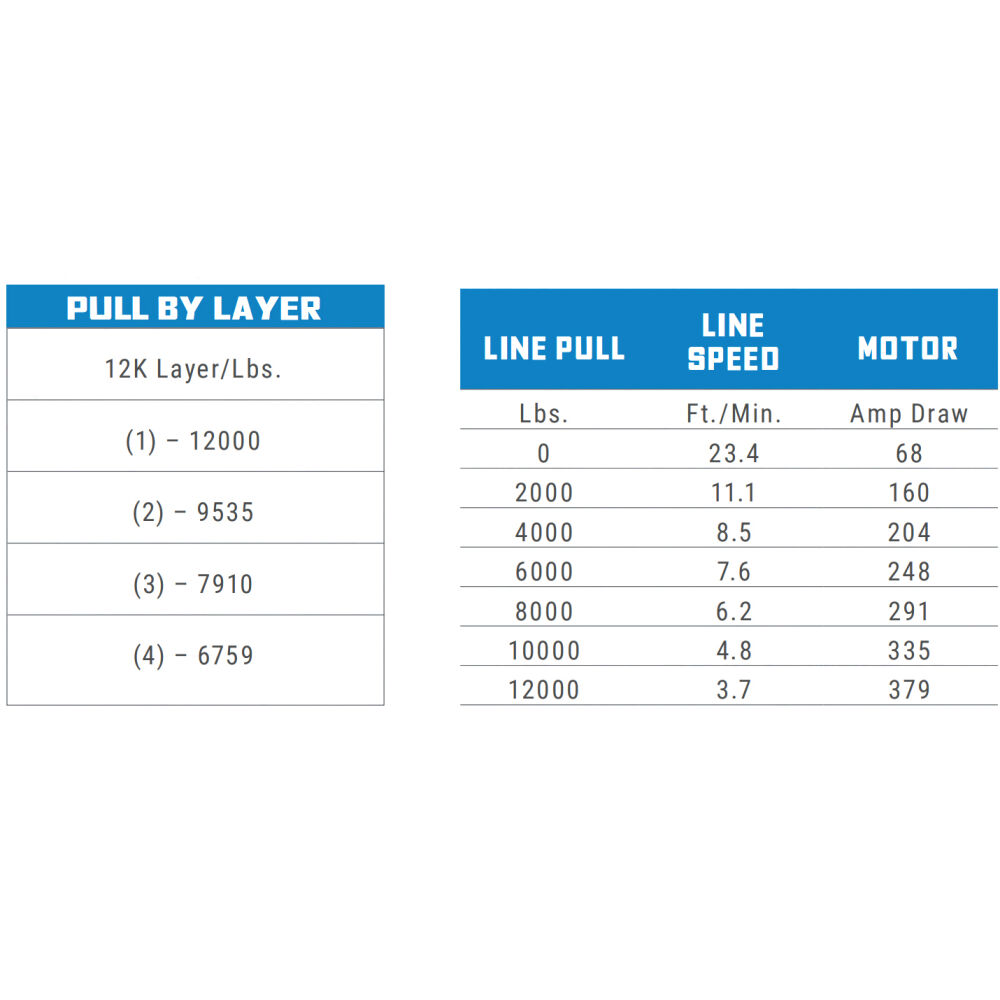

  • Line Speed68 Amps Motor Draw/23.4 FPM (7.13 MPM)
  • MaterialSteel
  • Motor6.0 HP, 12V DC
  • Mounting Bolt Pattern10in x 4.5in (254mm x 114.3mm)
  • Mounting Hardware IncludedYes
  • Mounting TypeBolt-On
  • Rated Single Line Pull (Lbs)12000

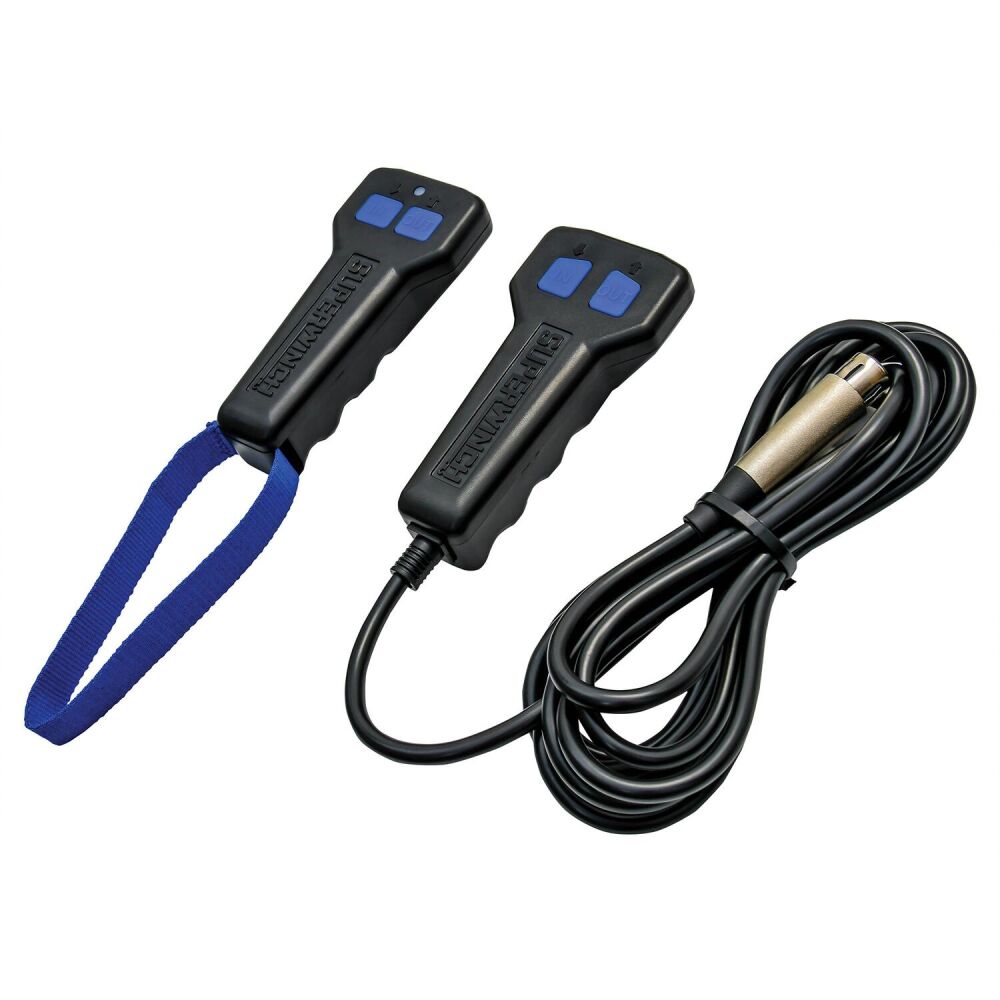

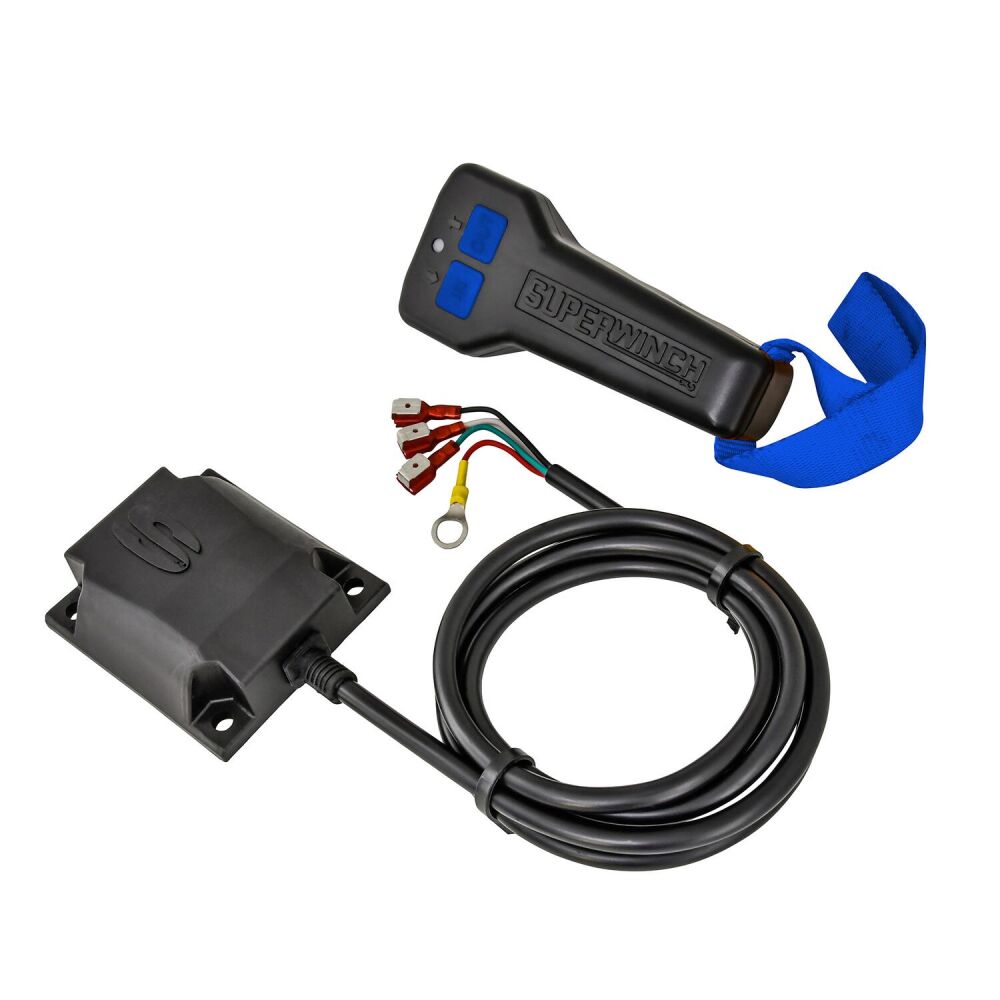

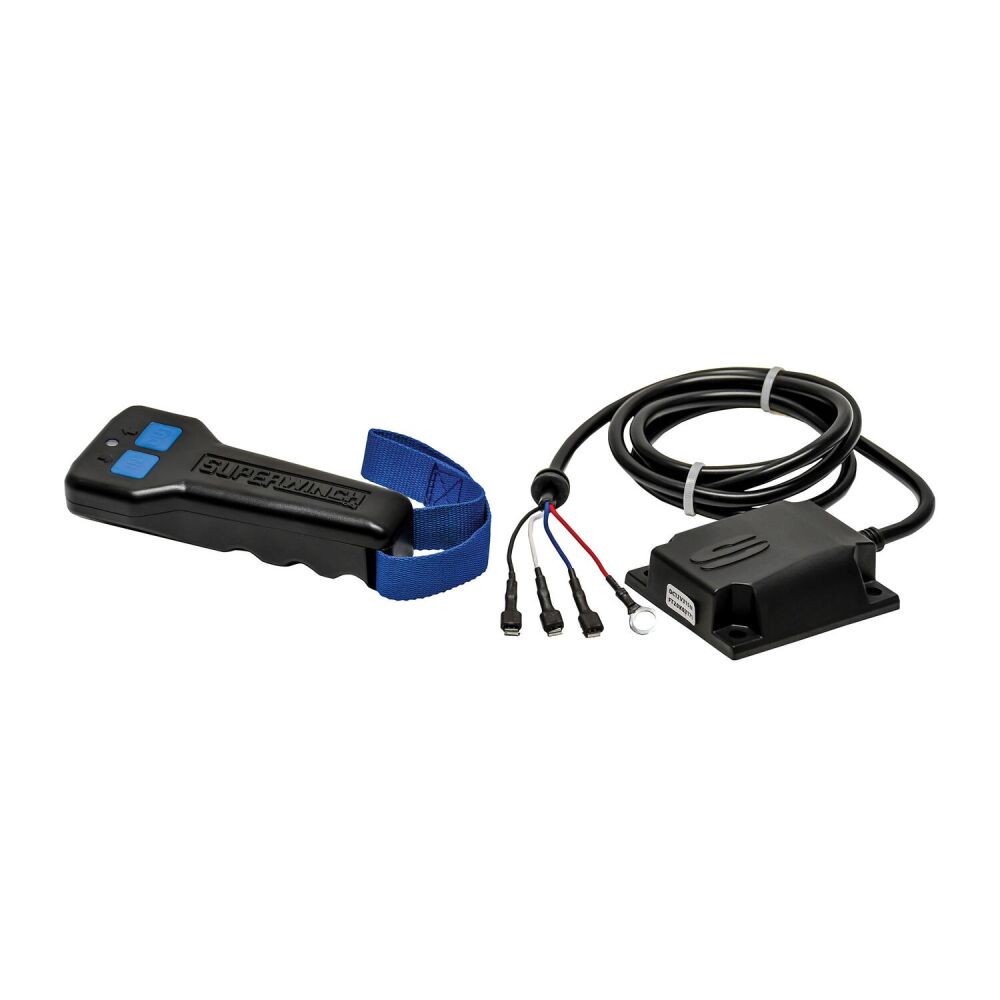

  • Remote ControlWireless hand-held remote & 12 ft handheld wired remote included (wired remote features flashlight with built-in lithium ION battery. Recharges while plugged into winch.)
  • Rope MaterialSynthetic

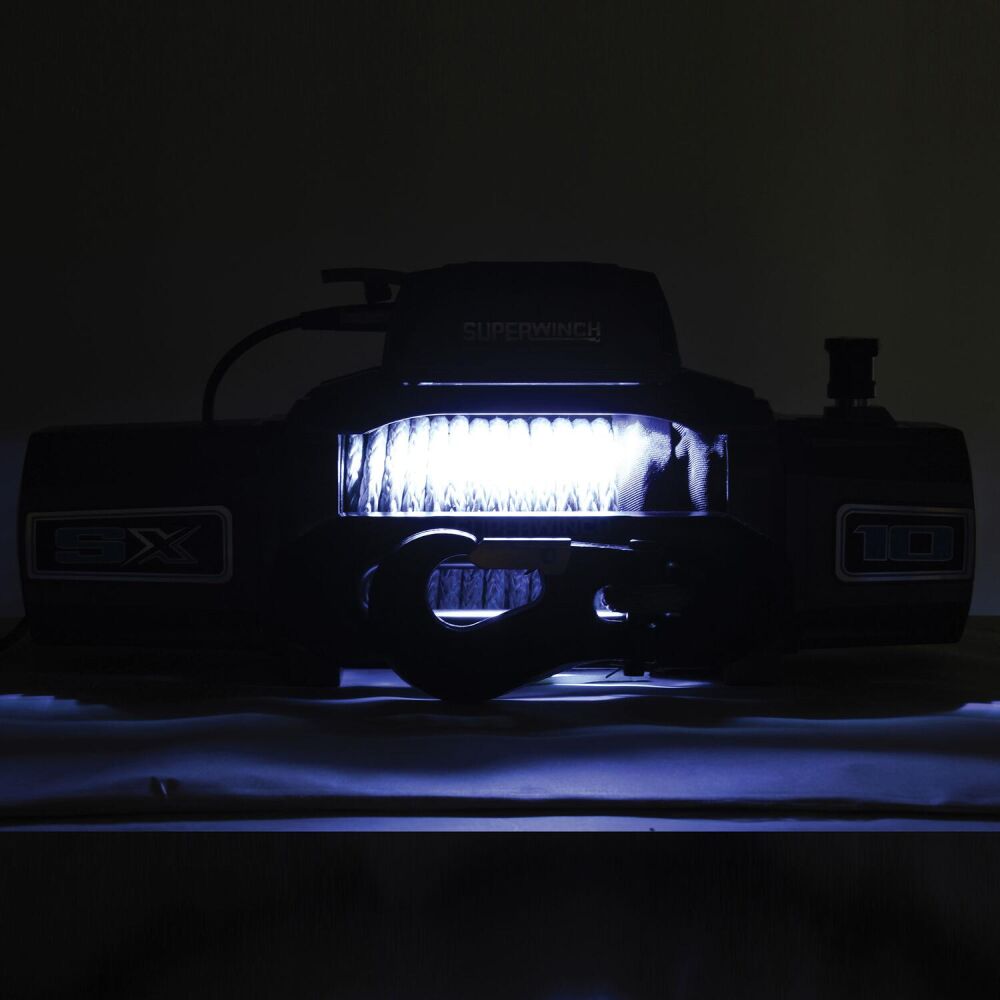

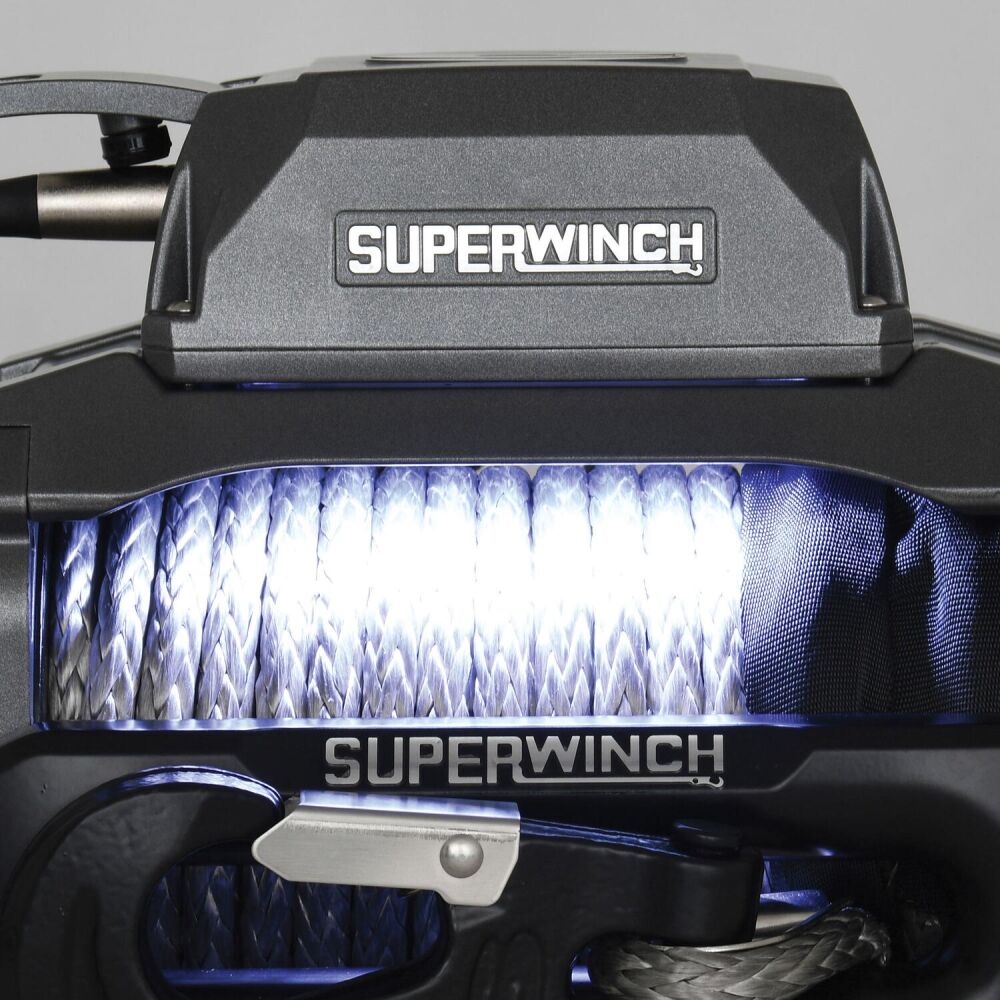

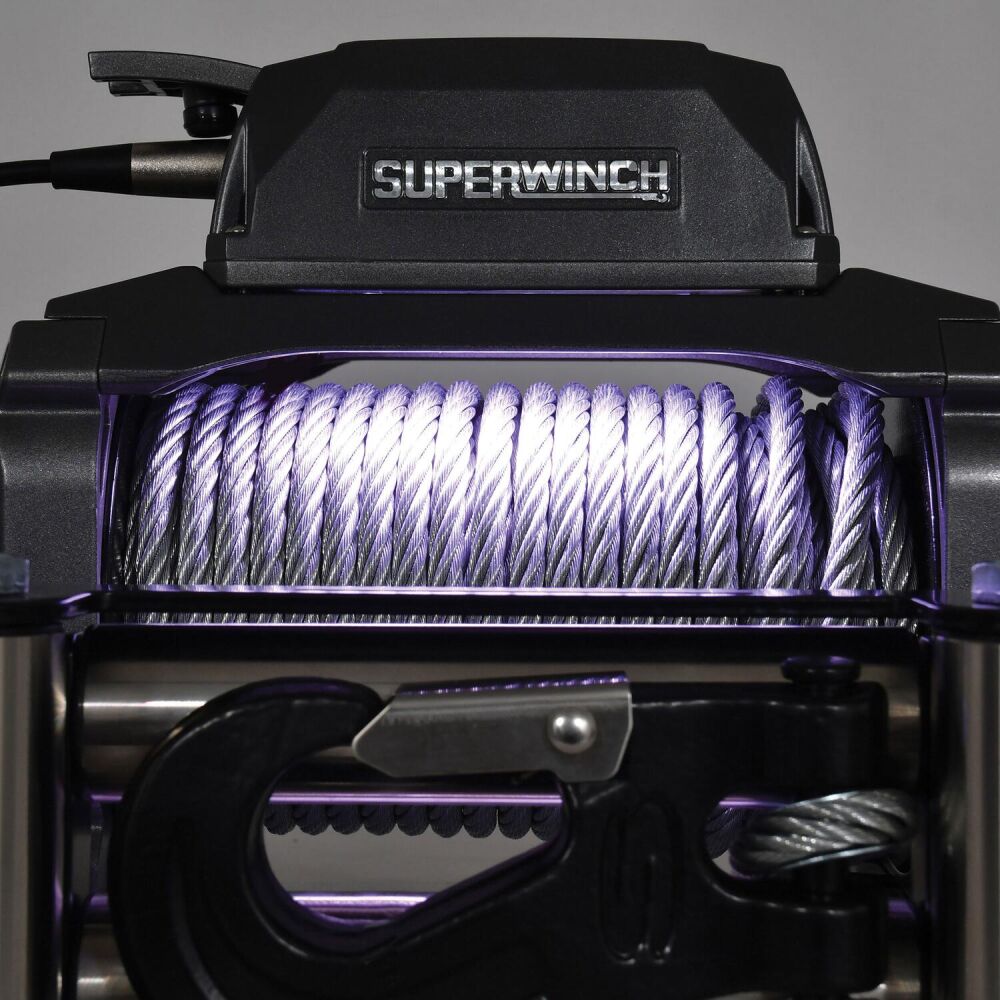

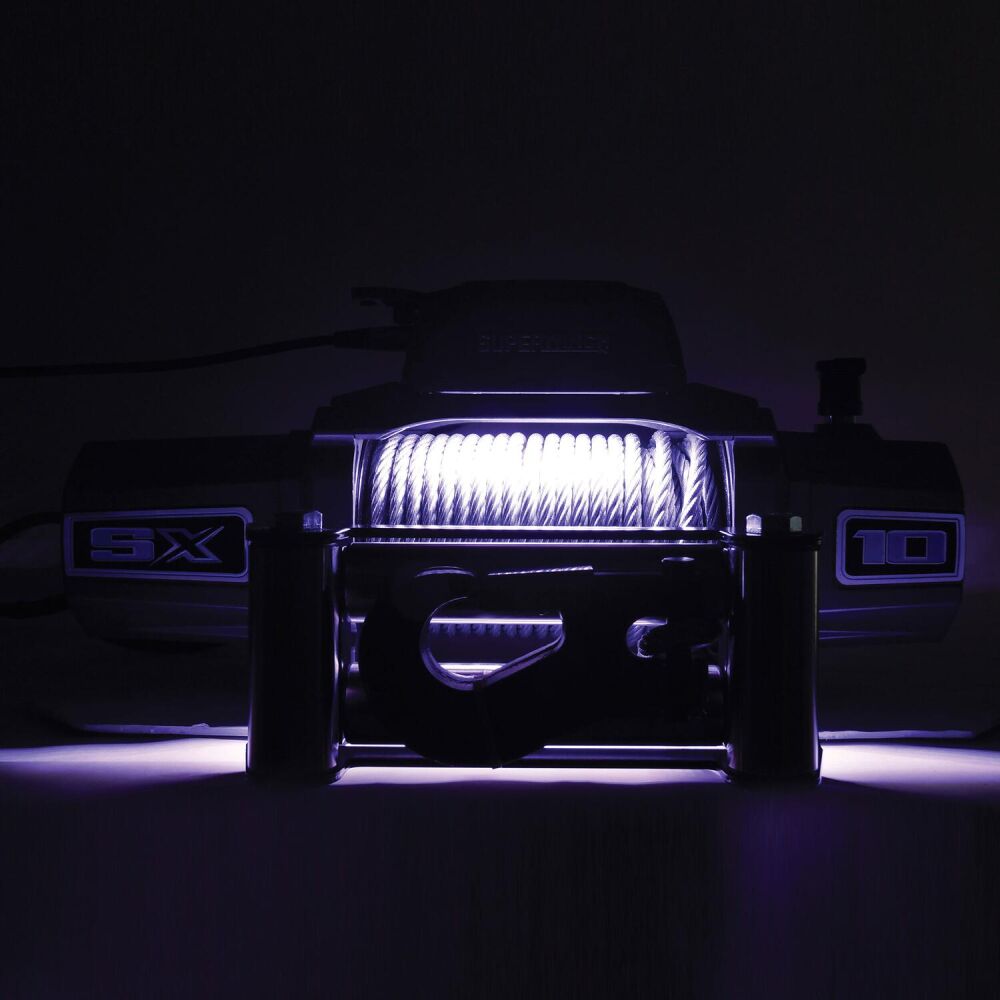

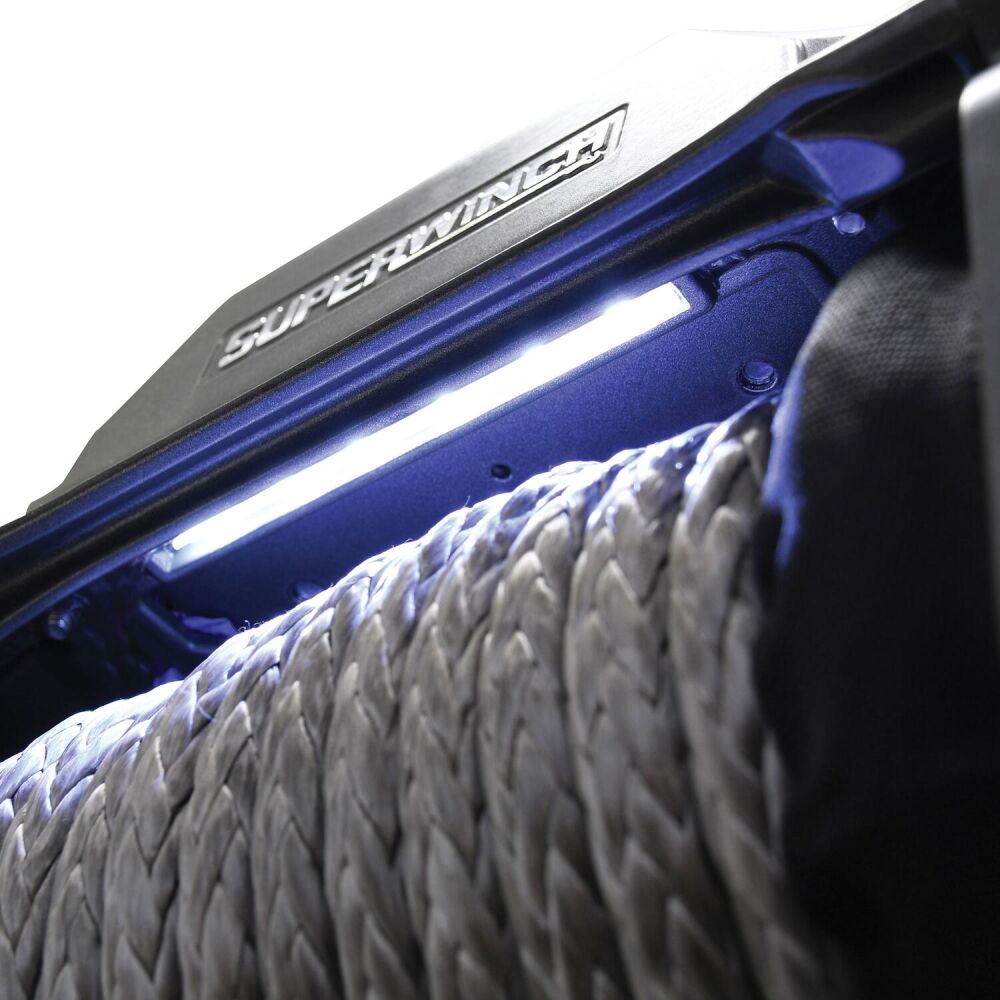

  • Task LightingPatented drum light
  • WarrantyLimited Lifetime Mechanical/7 Year Limited Electrical

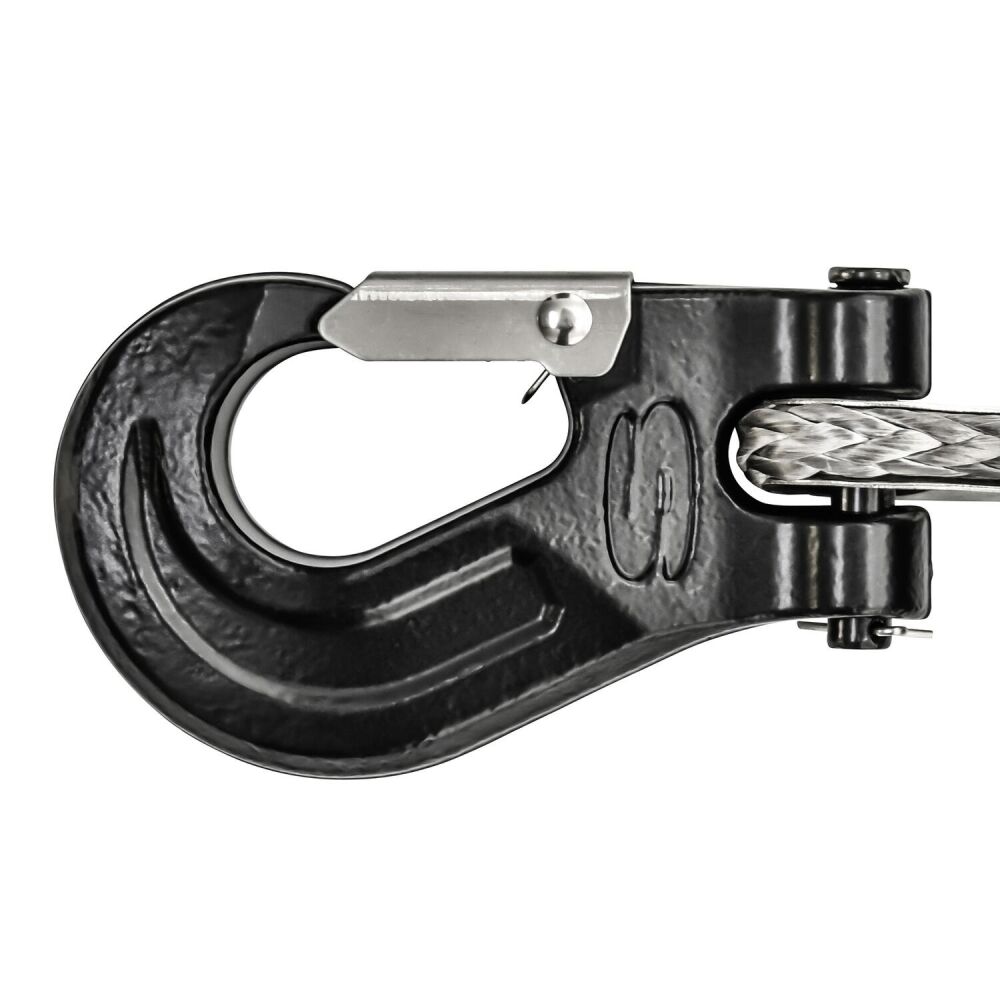

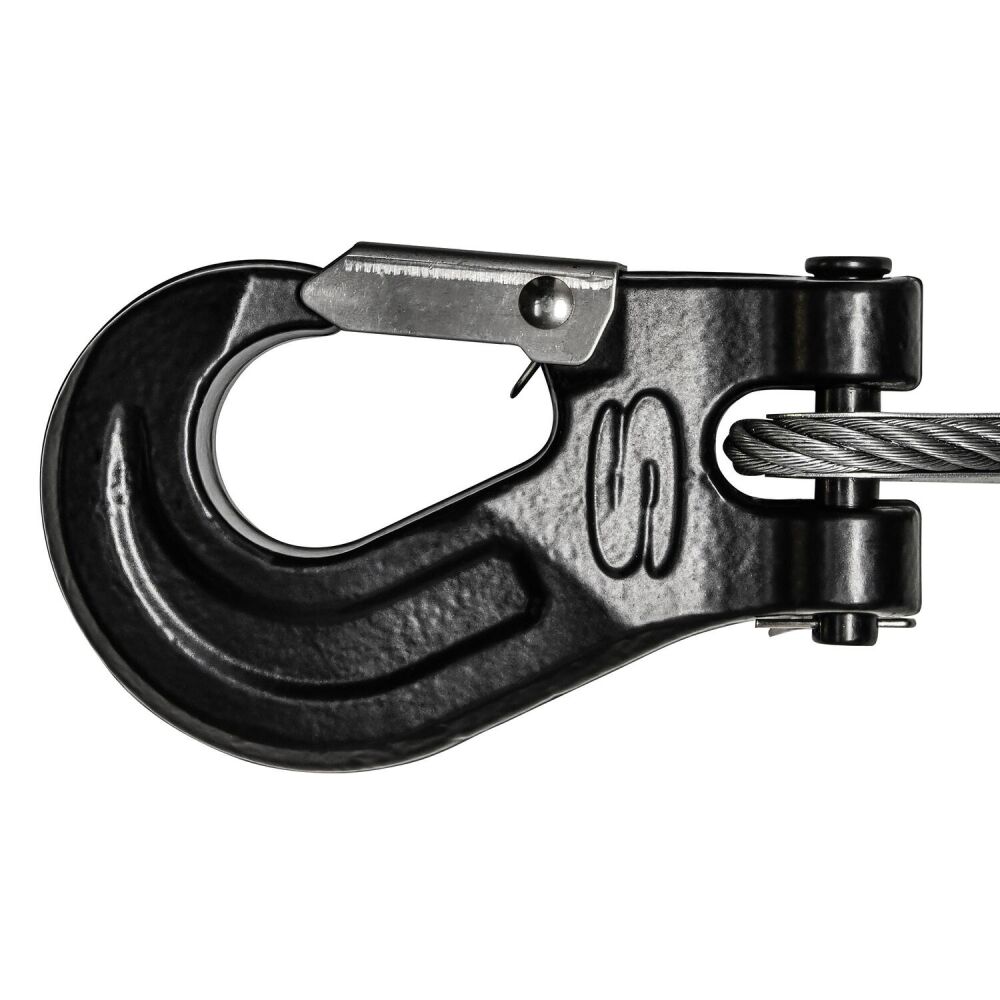

  • Winch HookHeavy-Duty, Clevis Pinned Latched
  • Winch ModelSX Series

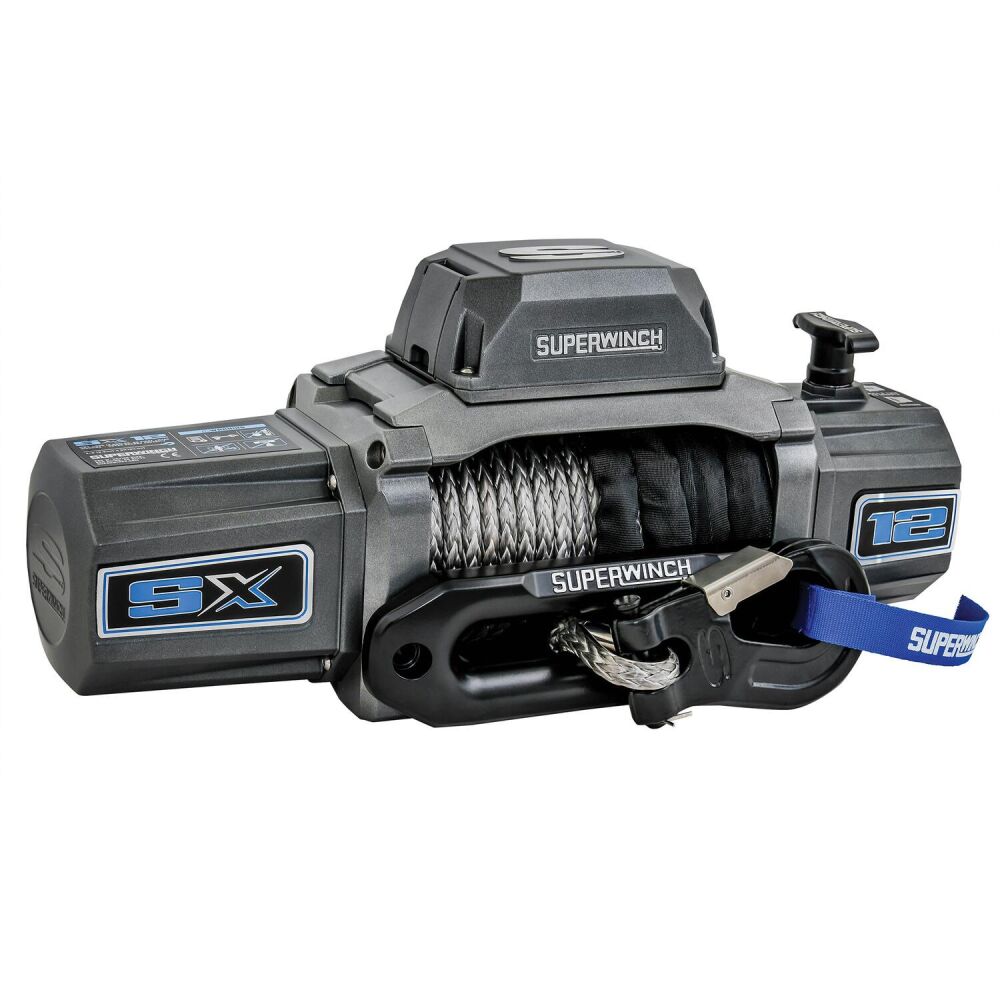

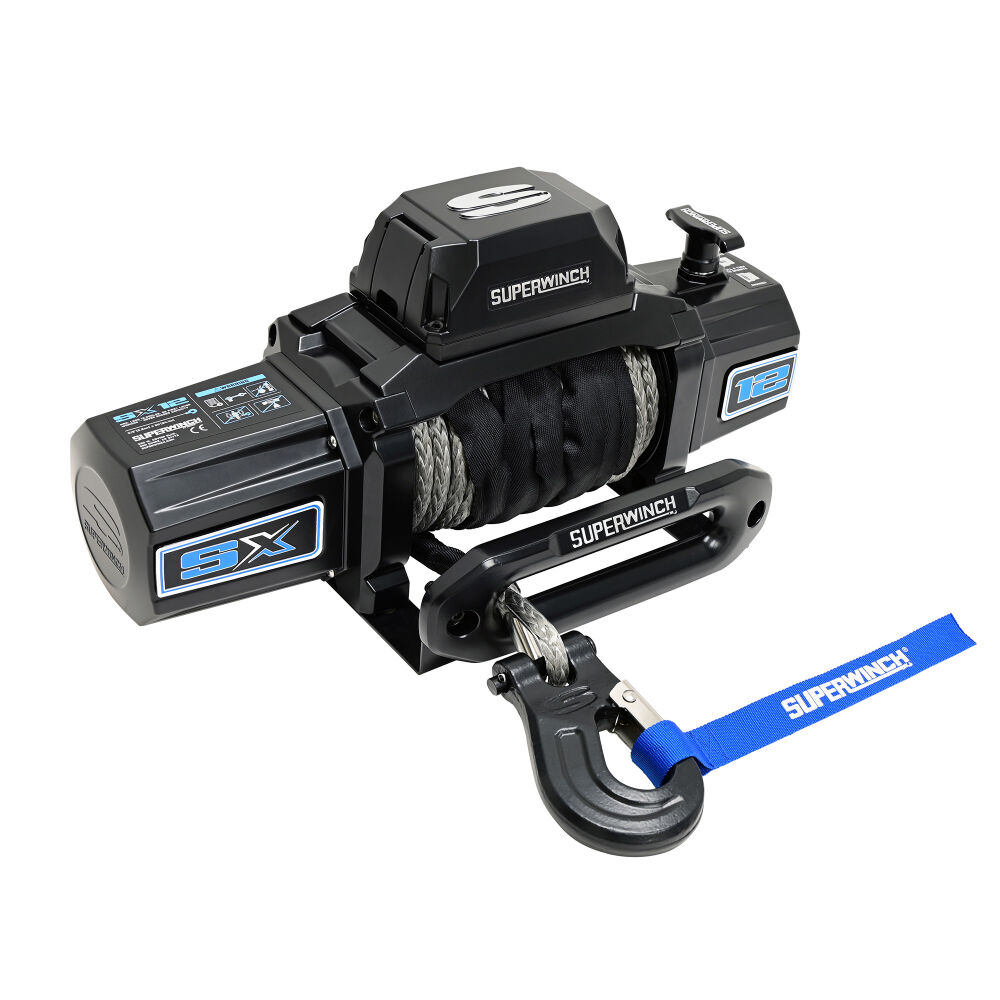

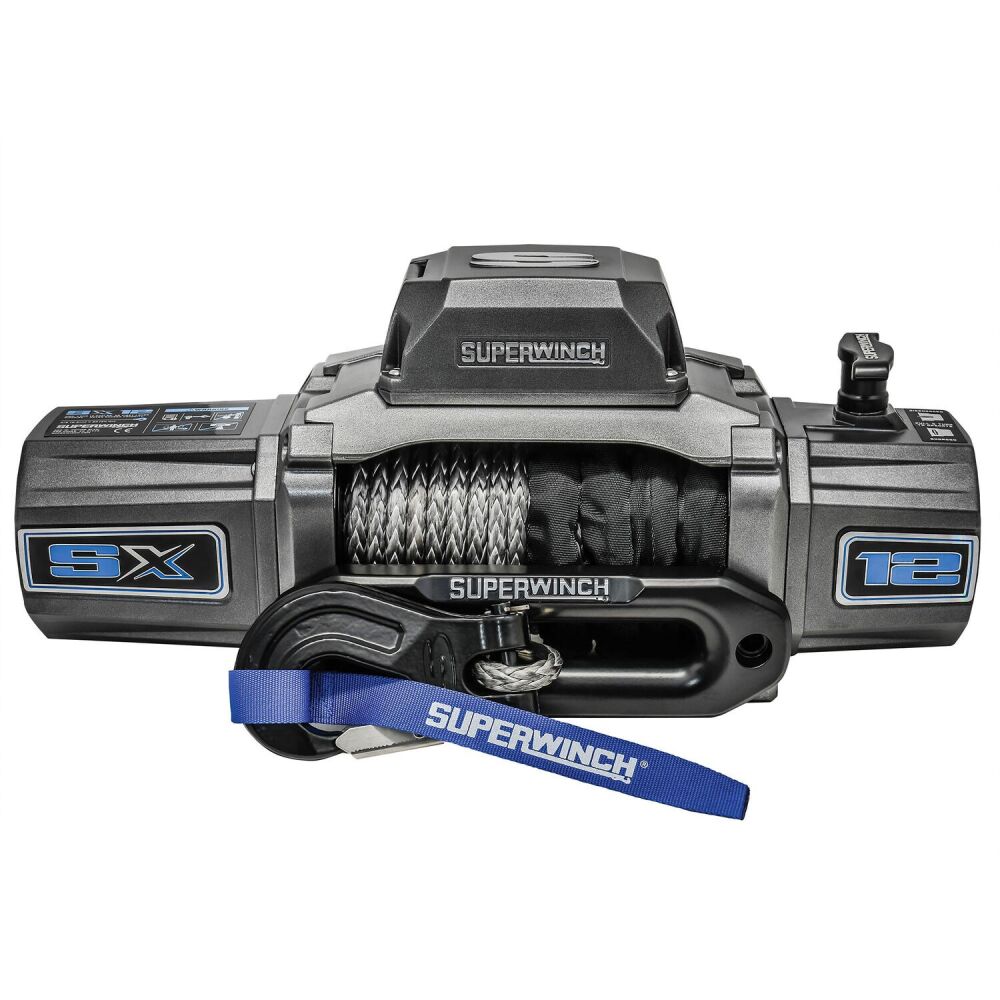

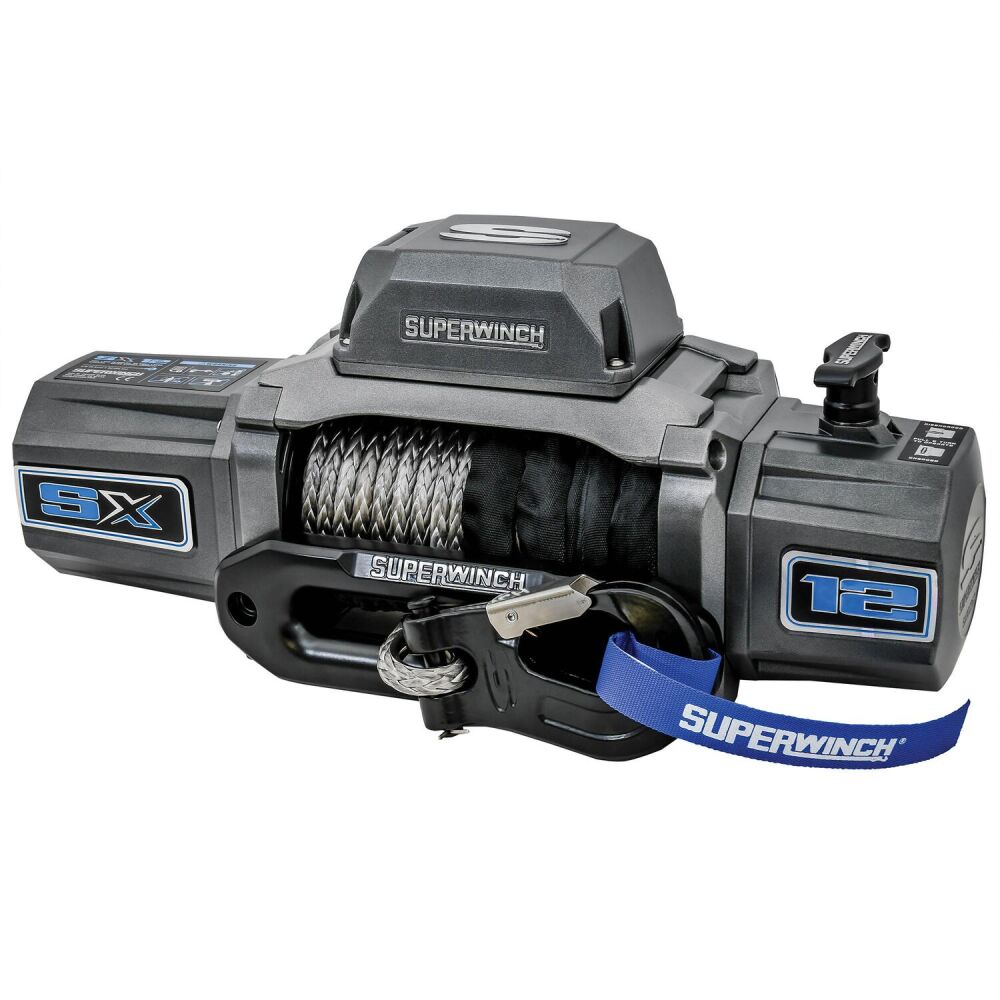

1712201
  • ColorGraphite
  • Control BoxRelocatable Die-Cast Aluminum
  • Dimensions22.04in L x 6.3in W x 9.67in H (559.8mm L x 160.02mm W x 245.62mm H)
  • EN CompliantNo
  • FinishPowder Coated
  • Line Speed68 Amps Motor Draw/23.4 FPM (7.13 MPM)
  • MaterialSteel
  • Motor6.0 HP, 12V DC
  • Mounting Bolt Pattern10in x 4.5in (254mm x 114.3mm)
  • Rated Single Line Pull (Lbs)12000
  • Remote ControlWireless hand-held remote & 12 ft handheld wired remote included (wired remote features flashlight with built-in lithium ION battery. Recharges while plugged into winch.)
  • Rope MaterialSynthetic
  • Task LightingPatented drum light
  • WarrantyLimited Lifetime Mechanical/7 Year Limited Electrical
  • Winch HookHeavy-Duty, Clevis Pinned Latched
  • Winch ModelSX Series

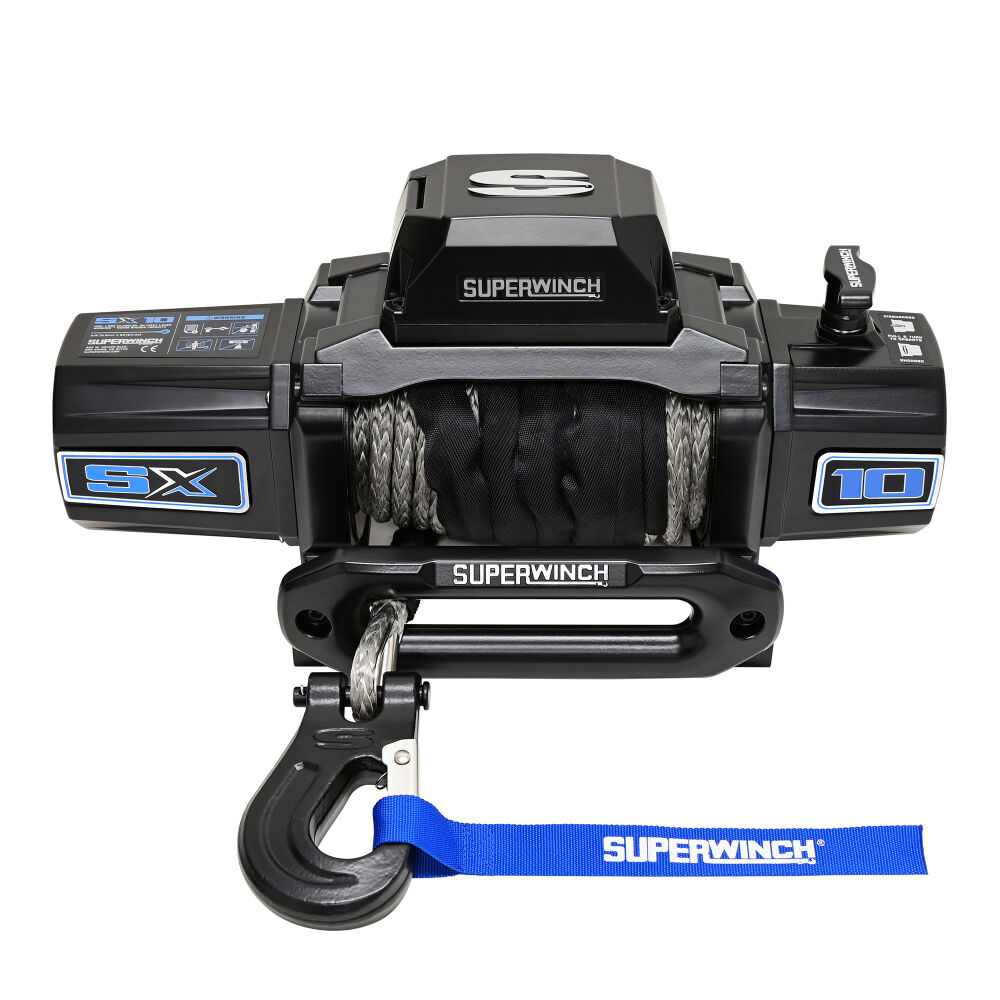

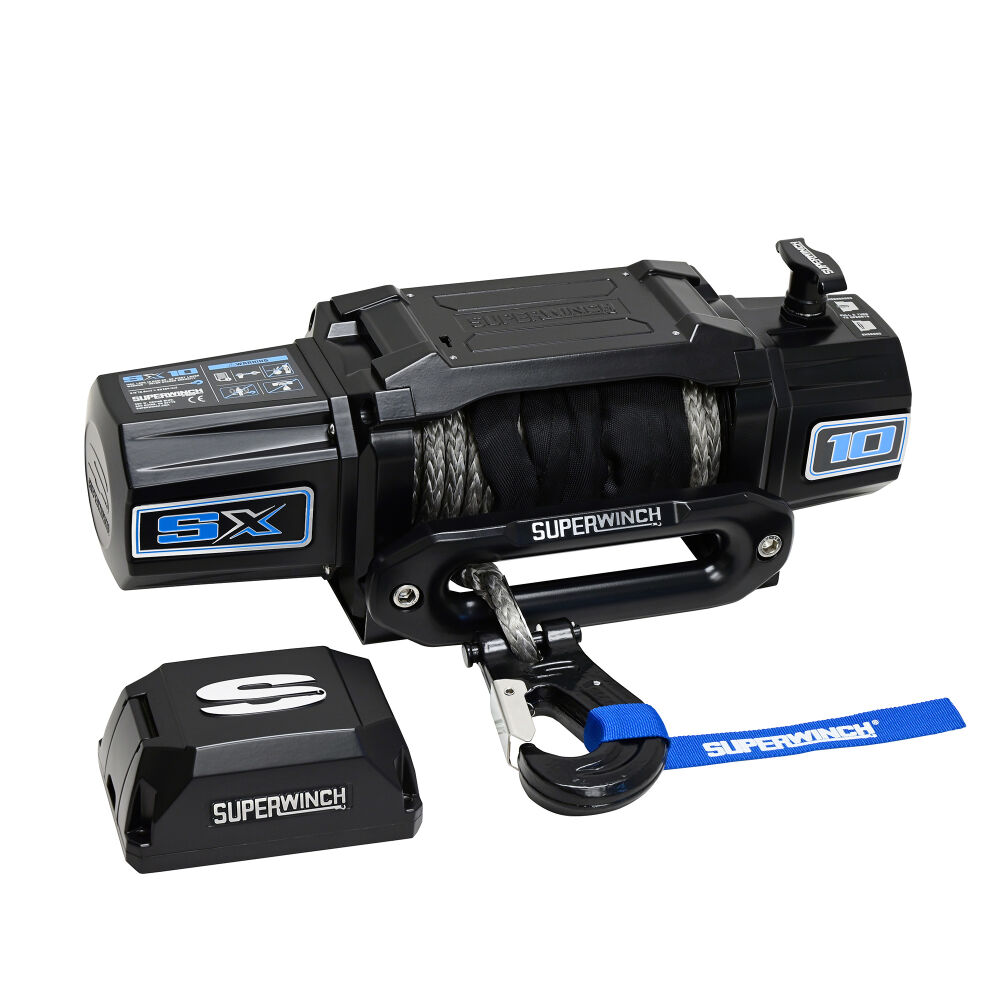

1710204
  • ColorBlack
  • Control BoxRelocatable Die-Cast Aluminum
  • Dimensions22.04in L x 6.3in W x 9.67in H (559.8mm L x 160.02mm W x 245.62mm H)
  • Drilling RequiredNo
  • EN CompliantNo
  • FinishPowder Coated
  • MaterialSteel
  • Motor5.5 HP, 12V DC
  • Mounting Bolt Pattern10in x 4.5in (254mm x 114.3mm)
  • Mounting Hardware IncludedYes
  • Mounting TypeBolt-On
  • Rated Single Line Pull (Lbs)1000
  • Remote ControlWireless hand-held remote & 12 ft handheld wired remote included (wired remote features flashlight with built-in lithium ION battery. Recharges while plugged into winch.)
  • Rope MaterialSynthetic
  • Task LightingPatented drum light
  • WarrantyLimited Lifetime Mechanical/7 Year Limited Electrical
  • Winch HookHeavy-Duty, Clevis Pinned Latched
  • Winch ModelSX Series

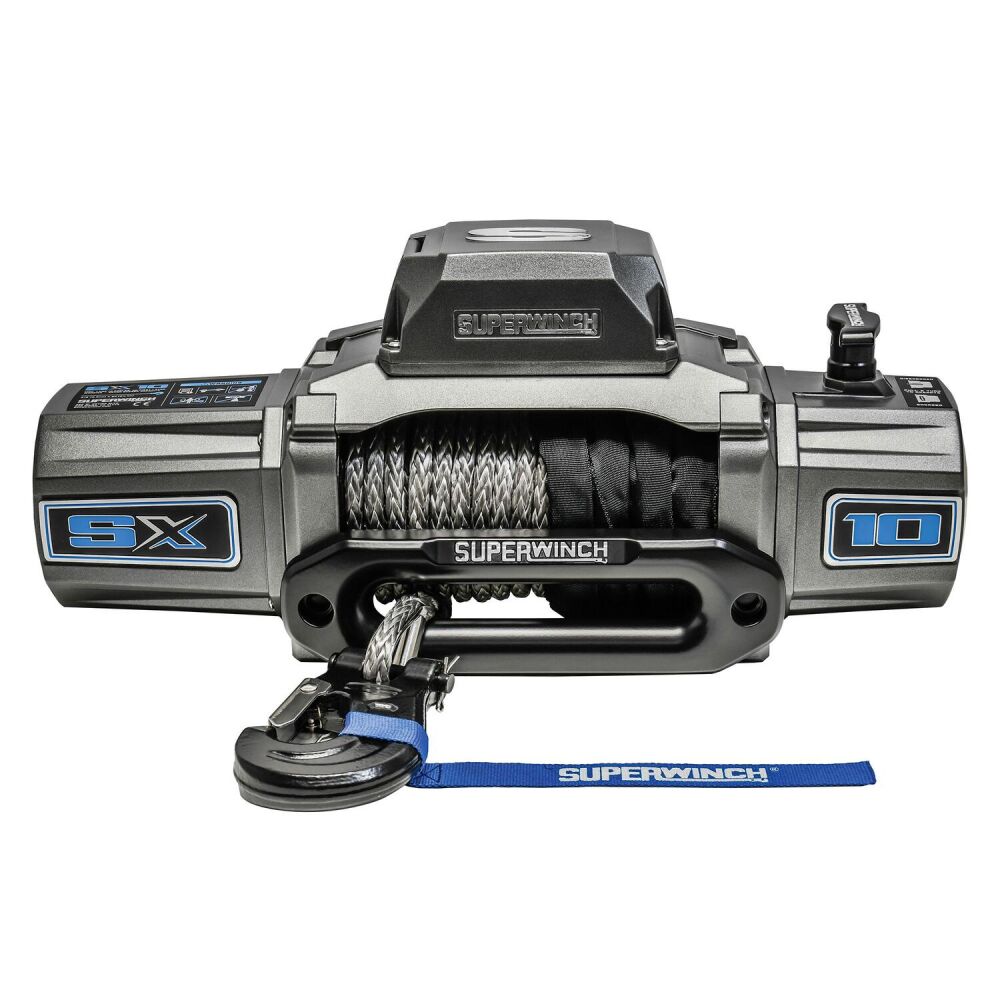

1710201
  • ColorGraphite
  • Control BoxRelocatable Die-Cast Aluminum
  • Dimensions22.04in L x 6.3in W x 9.67in H (559.8mm L x 160.02mm W x 245.62mm H)
  • EN CompliantNo
  • FinishPowder Coated
  • MaterialSteel
  • Motor5.5 HP, 12V DC
  • Mounting Bolt Pattern10in x 4.5in (254mm x 114.3mm)
  • Rated Single Line Pull (Lbs)10000
  • Remote ControlWireless hand-held remote & 12 ft handheld wired remote included (wired remote features flashlight with built-in lithium ION battery. Recharges while plugged into winch.)
  • Rope MaterialSynthetic
  • Task LightingPatented drum light
  • WarrantyLimited Lifetime Mechanical/7 Year Limited Electrical
  • Winch HookHeavy-Duty, Clevis Pinned Latched
  • Winch ModelSX Series

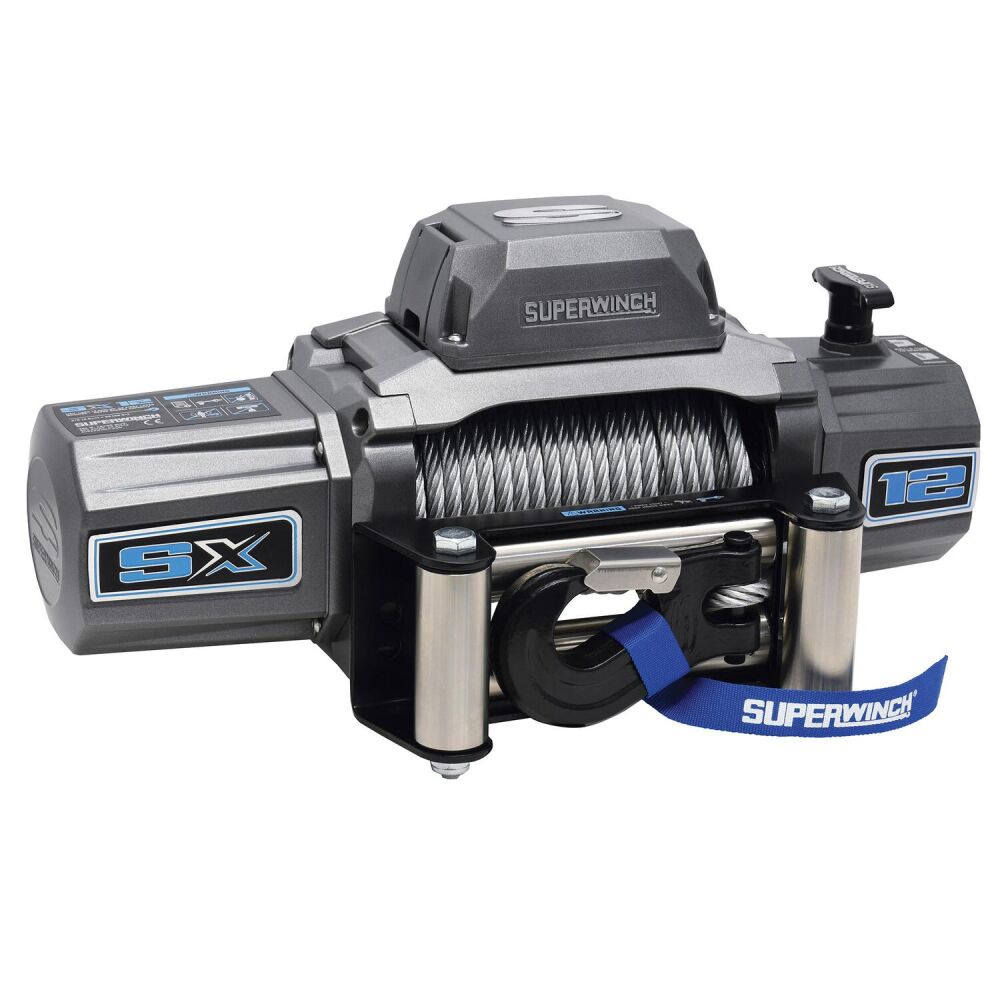

1712200
  • ColorGraphite
  • Control BoxRelocatable Die-Cast Aluminum
  • Dimensions22.04in L x 6.3in W x 9.67in H (559.8mm L x 160.02mm W x 245.62mm H)
  • EN CompliantNo
  • FinishPowder Coated
  • Line Speed68 Amps Motor Draw/23.4 FPM (7.13 MPM)
  • MaterialSteel
  • Motor6.0 HP, 12V DC
  • Mounting Bolt Pattern10in x 4.5in (254mm x 114.3mm)
  • Rated Single Line Pull (Lbs)12000

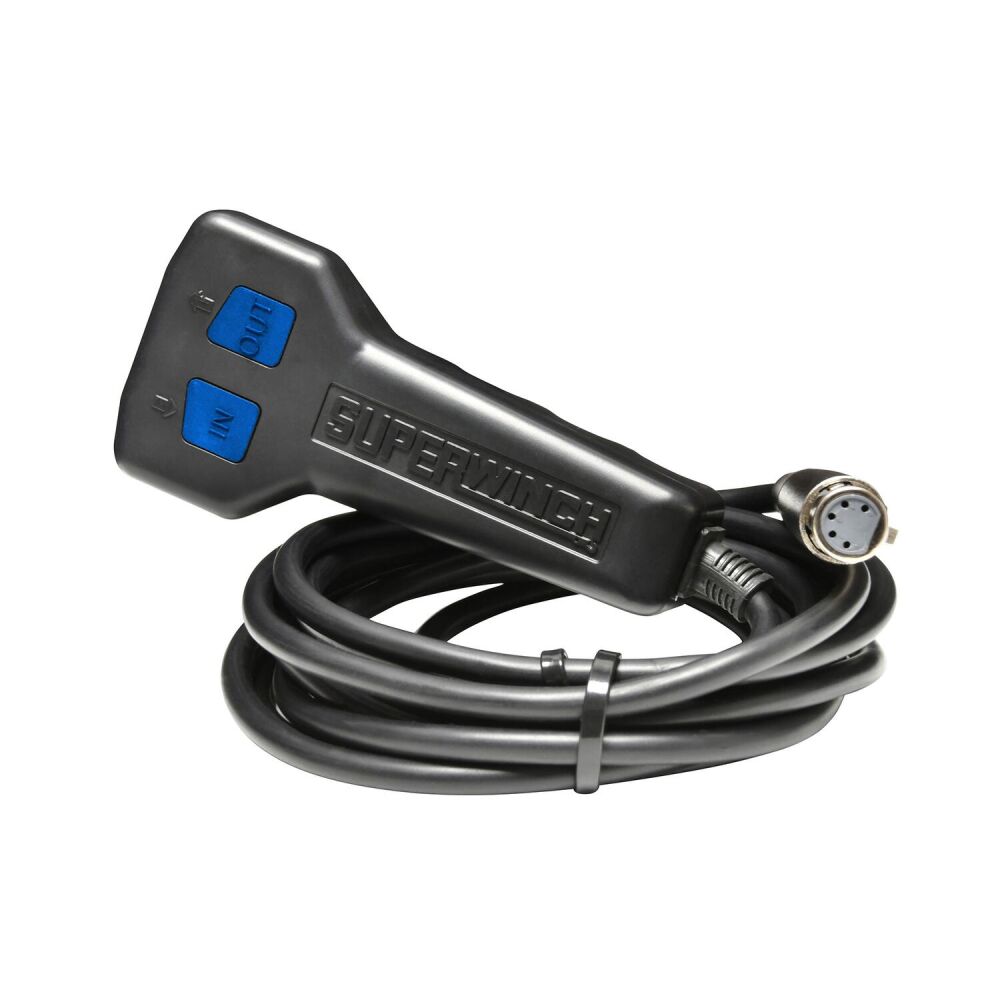

  • Remote Control12 ft Hand-held wired remote only included (wired remote features flashlight with built-in lithium ION battery. Recharges while plugged into winch.)
  • Rope MaterialSteel Wire
  • Task LightingPatented drum light
  • WarrantyLimited Lifetime Mechanical/7 Year Limited Electrical
  • Winch HookHeavy-Duty, Clevis Pinned Latched
  • Winch ModelSX Series

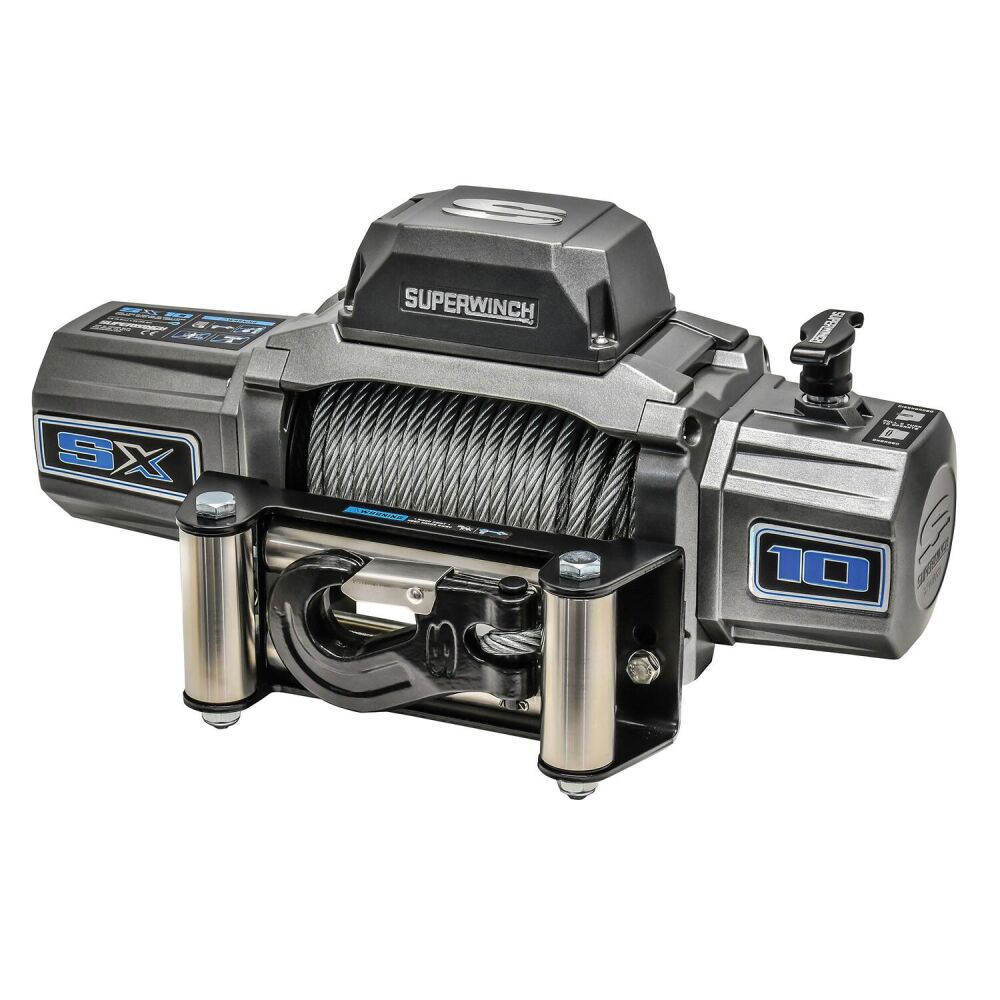

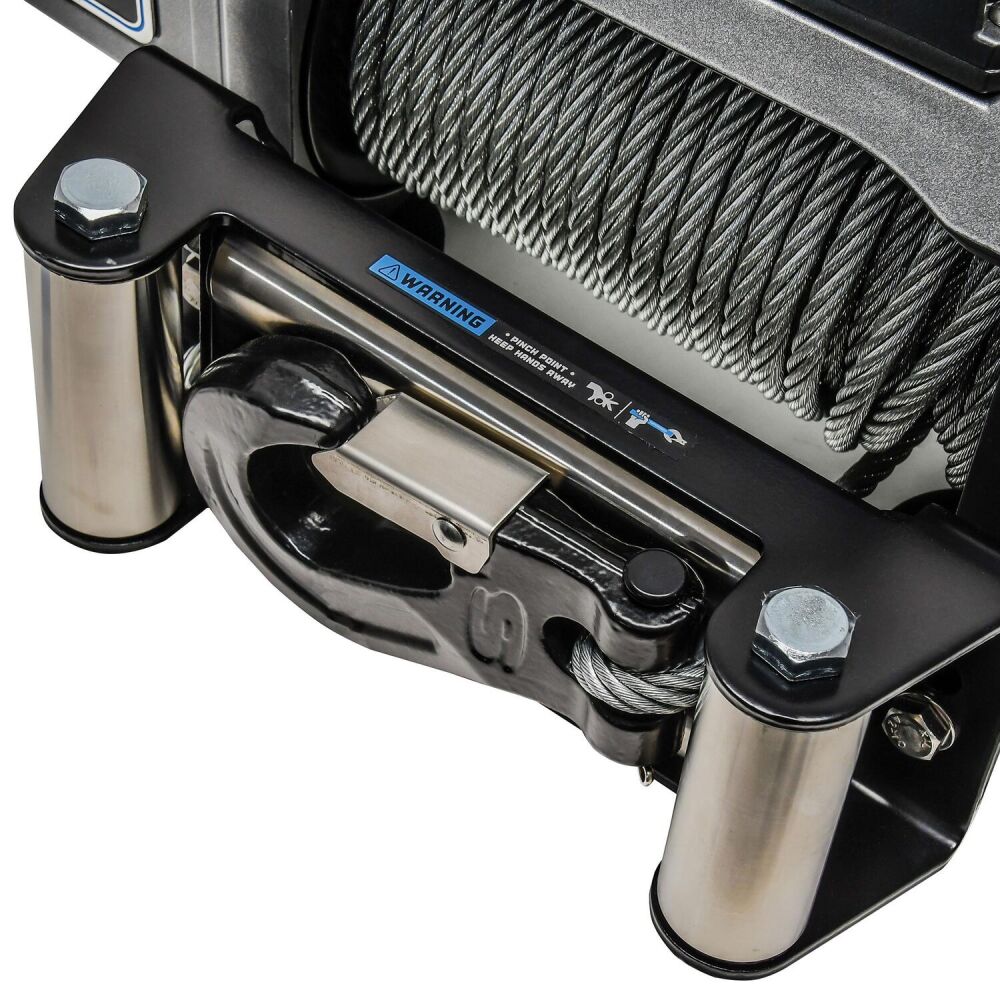

1710200
  • ColorGraphite
  • Control BoxRelocatable Die-Cast Aluminum
  • Dimensions22.04in L x 6.3in W x 9.67in H (559.8mm L x 160.02mm W x 245.62mm H)
  • EN CompliantNo
  • FinishPowder Coated

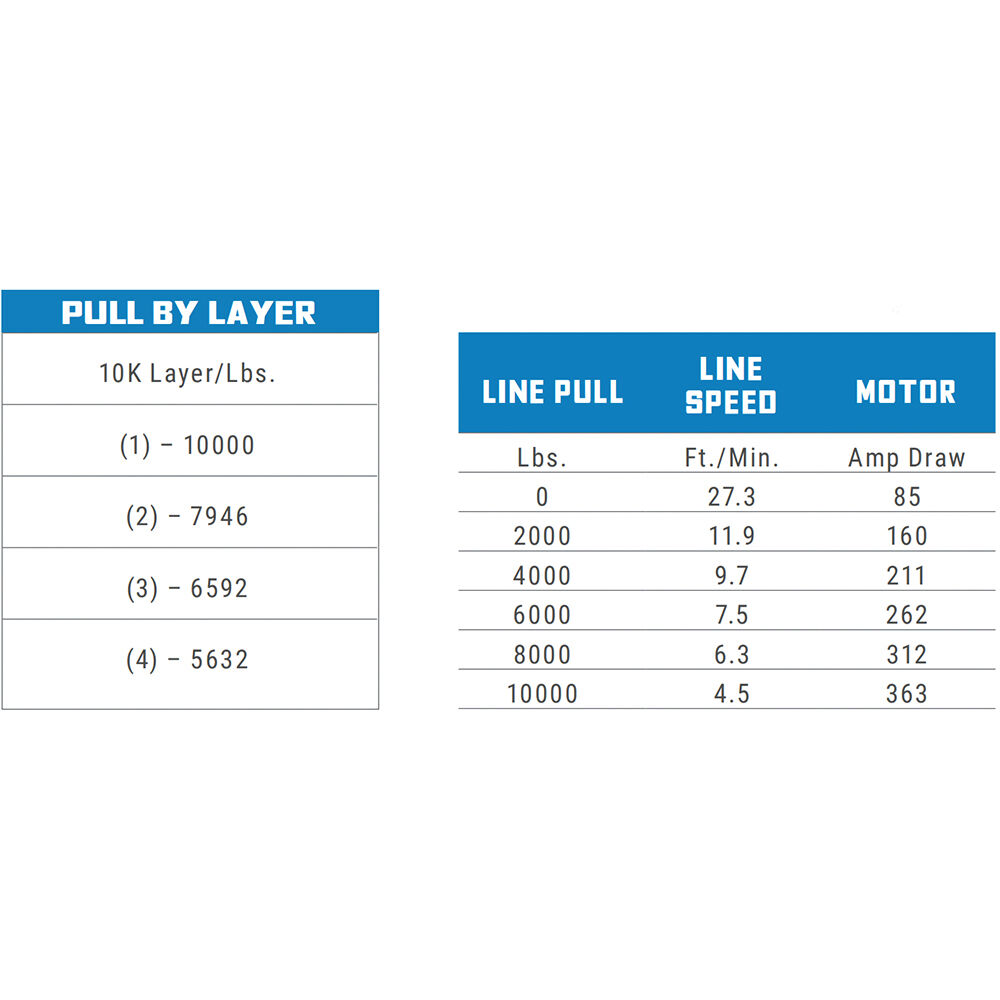

  • Line Speed85 Amps Motor Draw/27.3 FPM (8.32 MPM)
  • MaterialSteel
  • Motor5.5 HP, 12V DC
  • Mounting Bolt Pattern10in x 4.5in (254mm x 114.3mm)
  • Rated Single Line Pull (Lbs)10000
  • Remote Control12 ft Hand-held wired remote only included (wired remote features flashlight with built-in lithium ION battery. Recharges while plugged into winch.)
  • Rope MaterialSteel Wire
  • Task LightingPatented drum light
  • WarrantyLimited Lifetime Mechanical/7 Year Limited Electrical
  • Winch HookHeavy-Duty, Clevis Pinned Latched
  • Winch ModelSX Series
No Items Selected
Superwinch SX Series Winches
89 Images

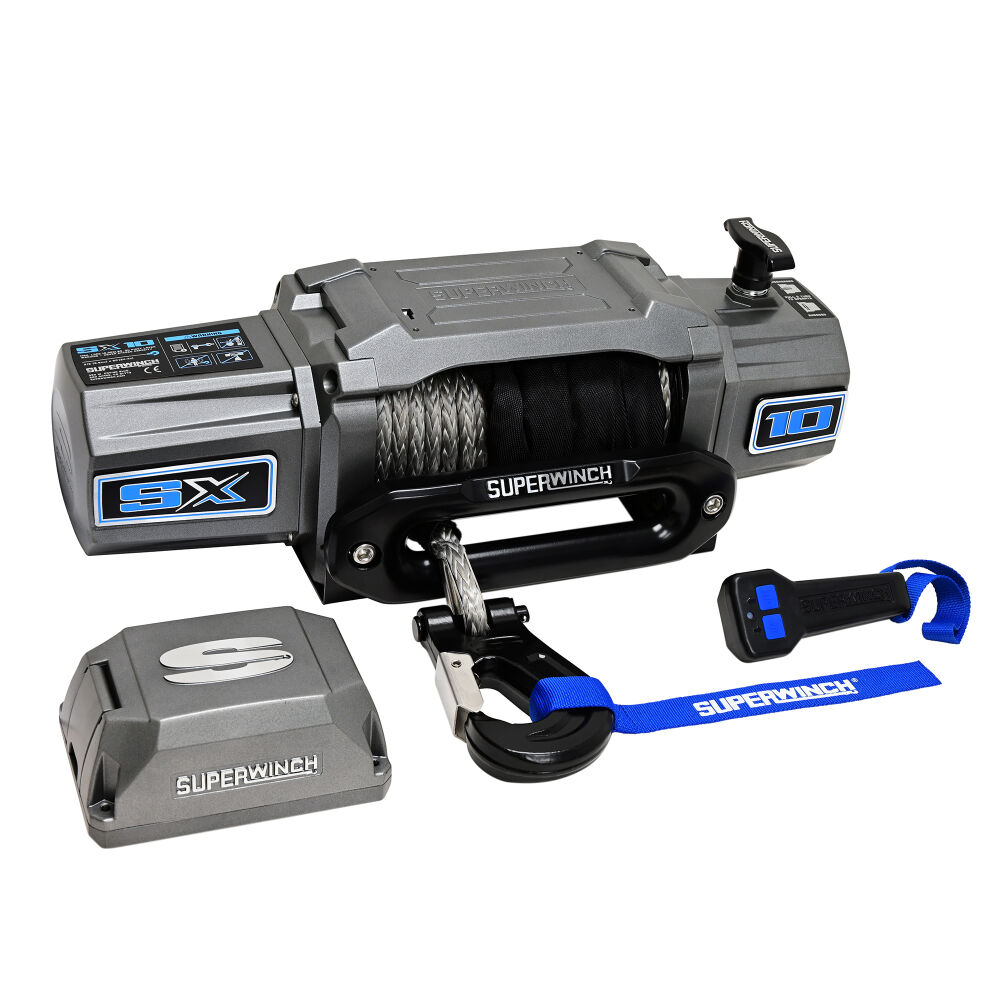

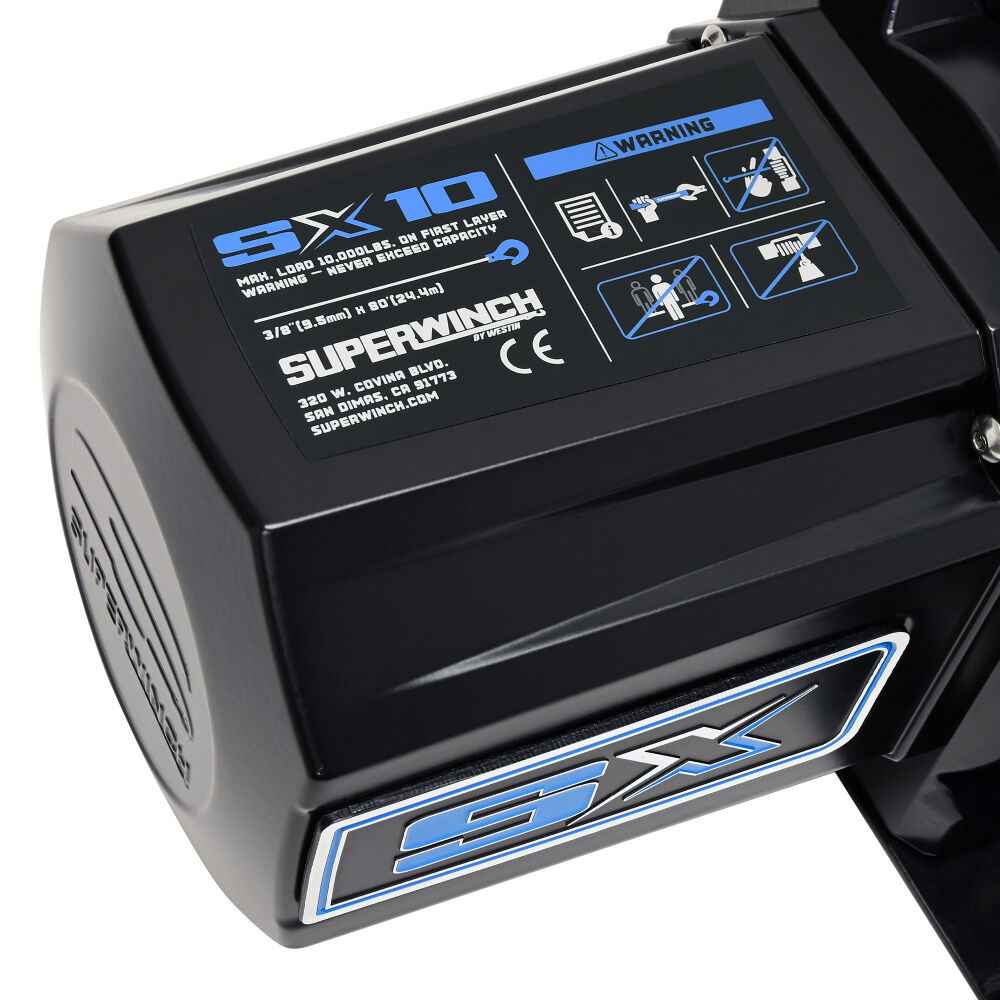

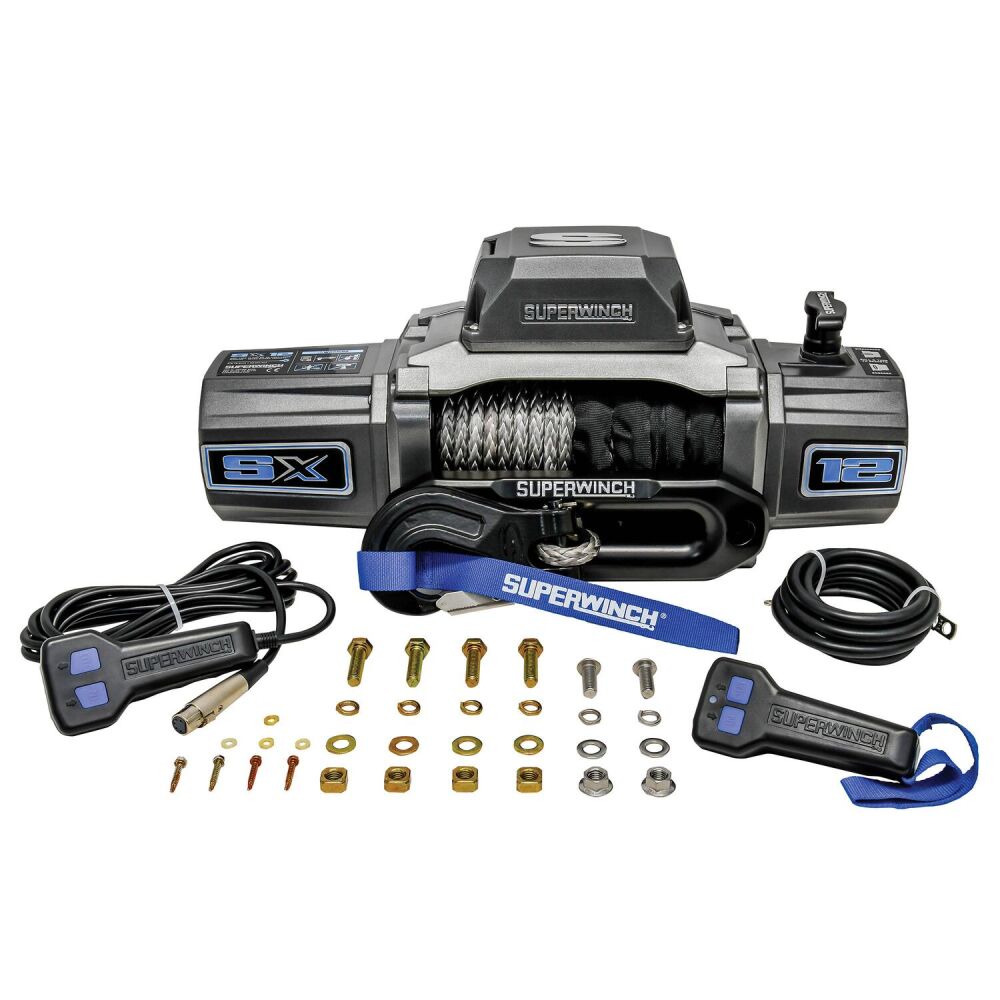

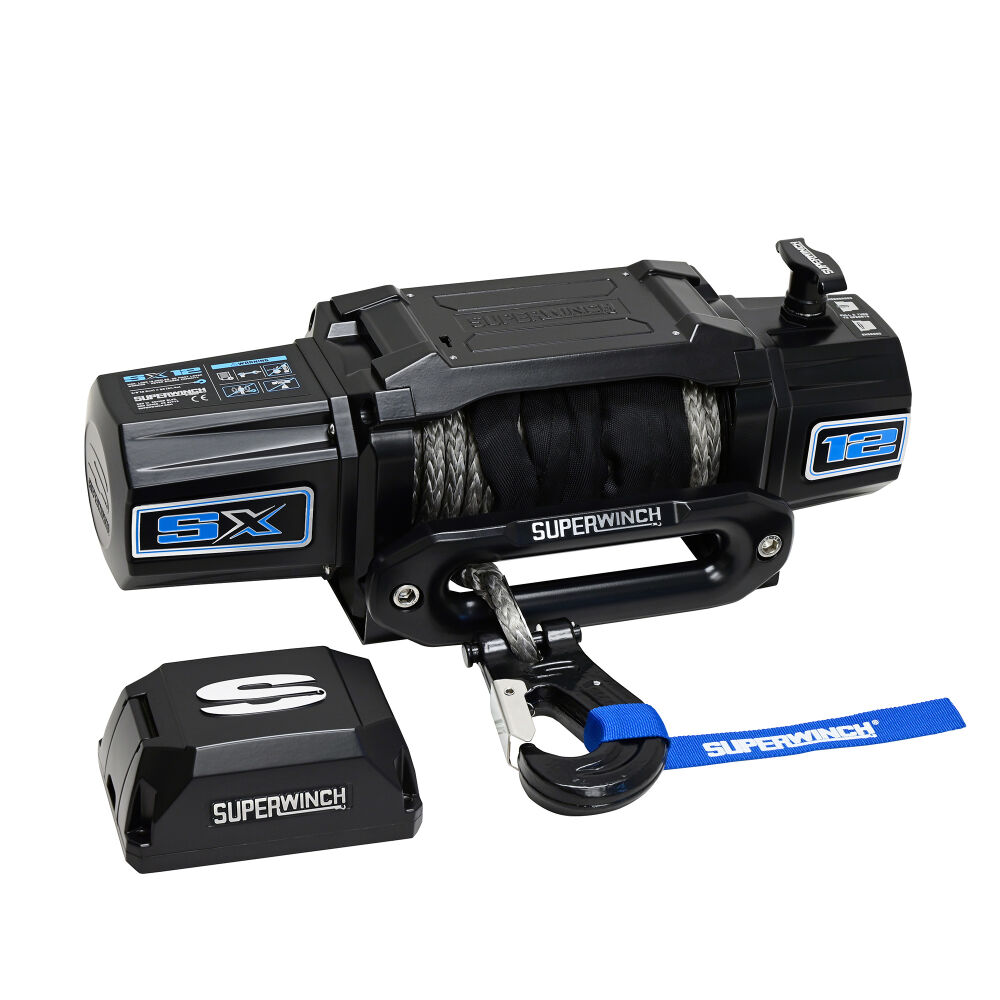

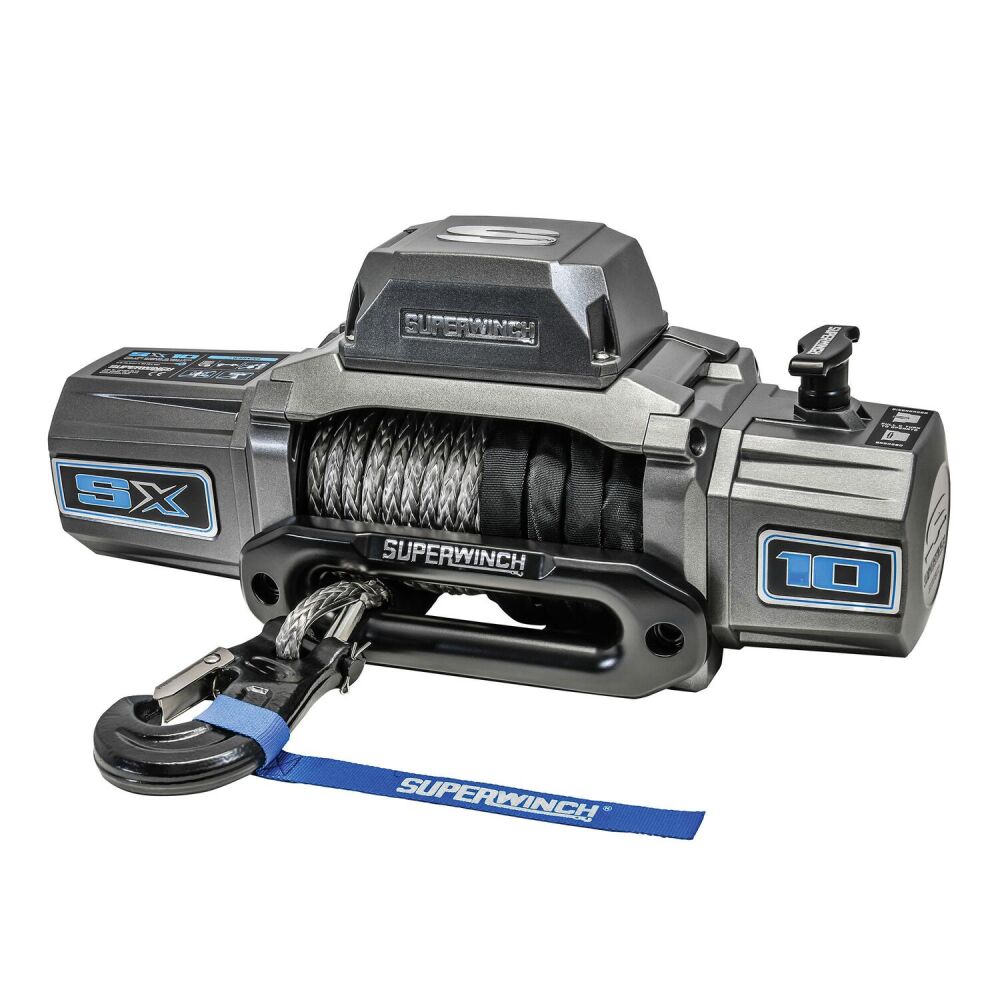

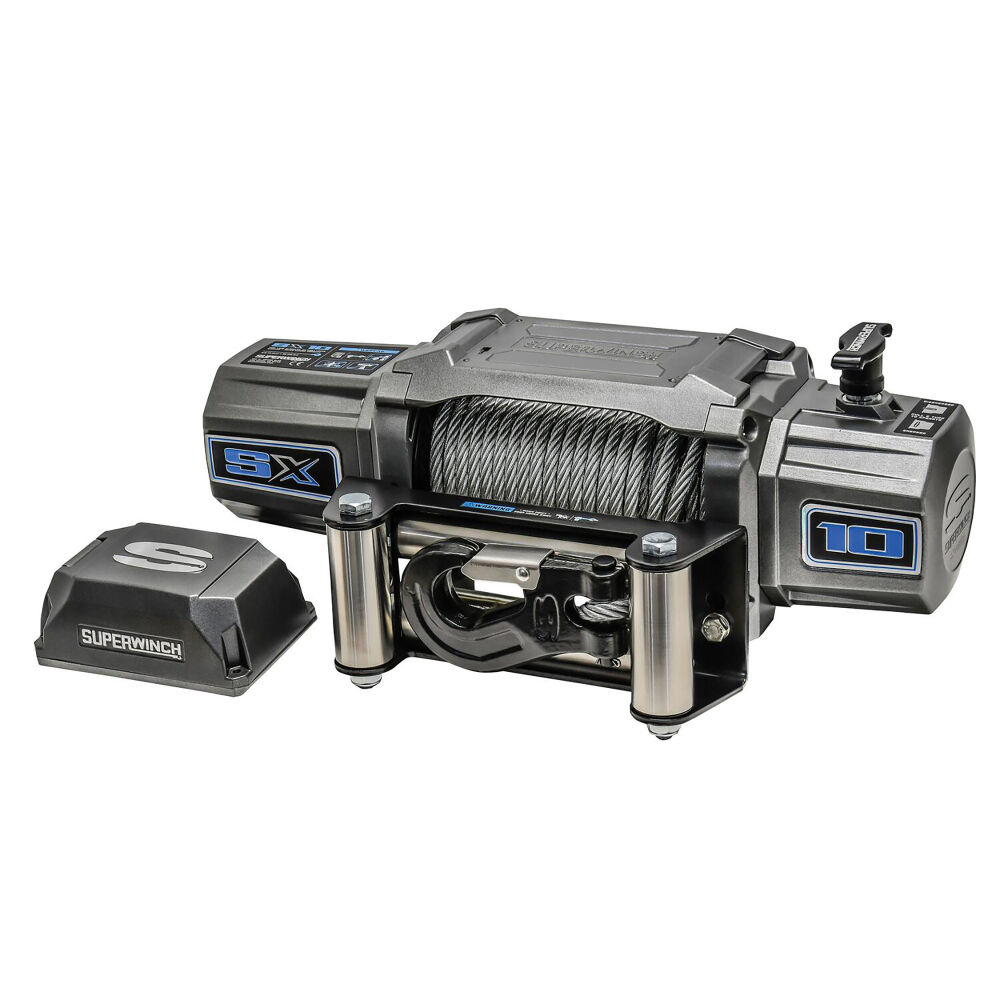

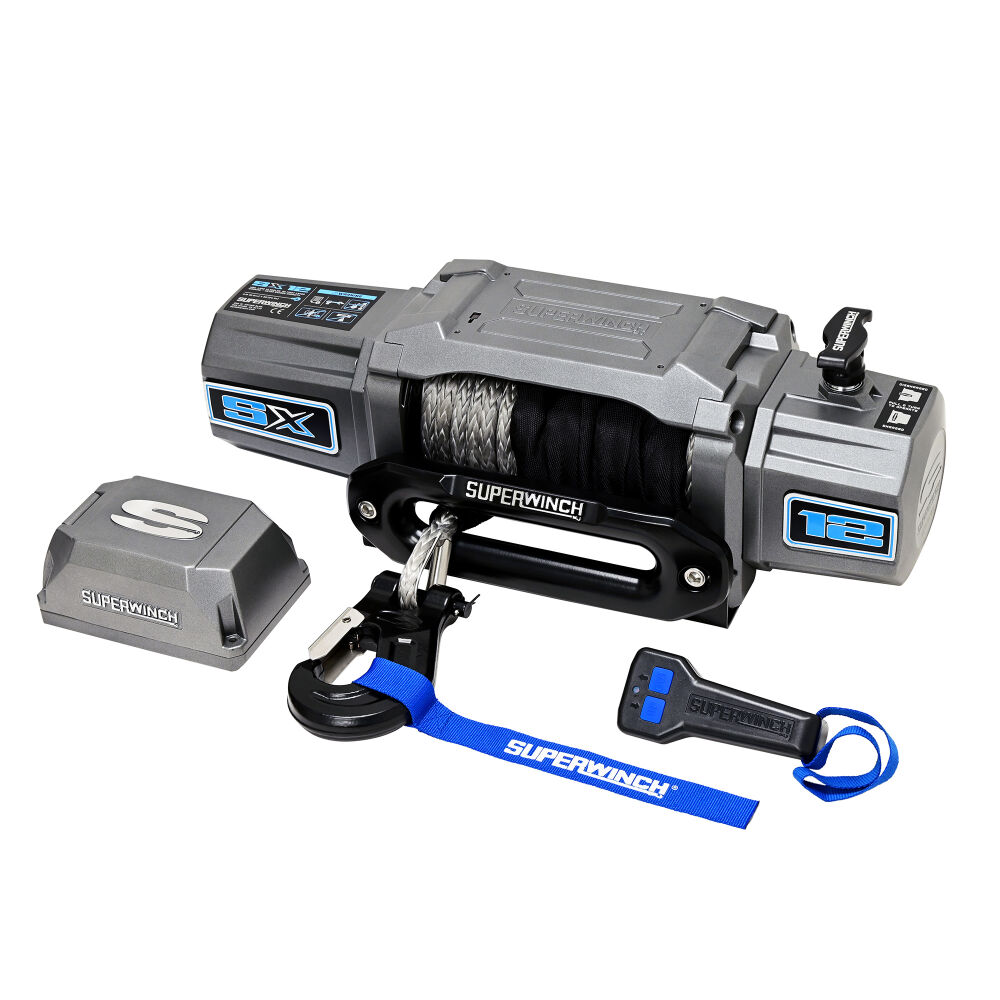

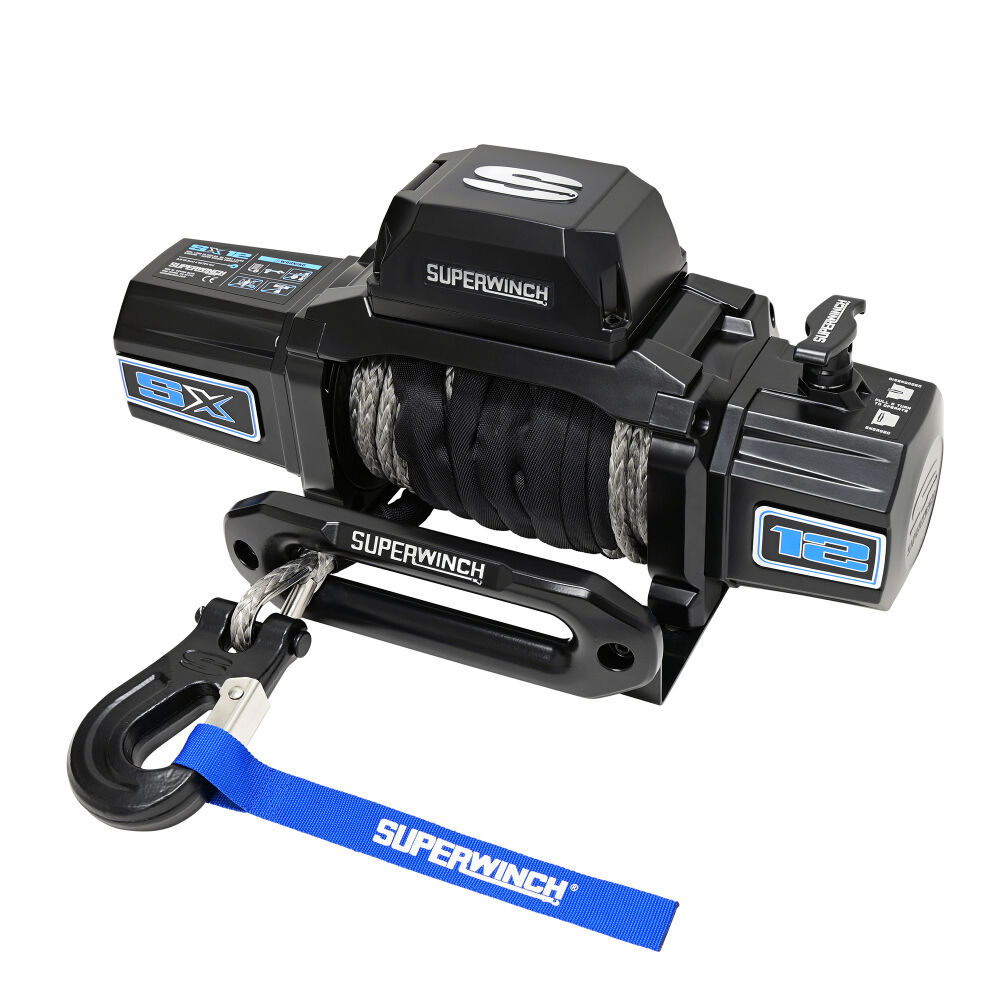

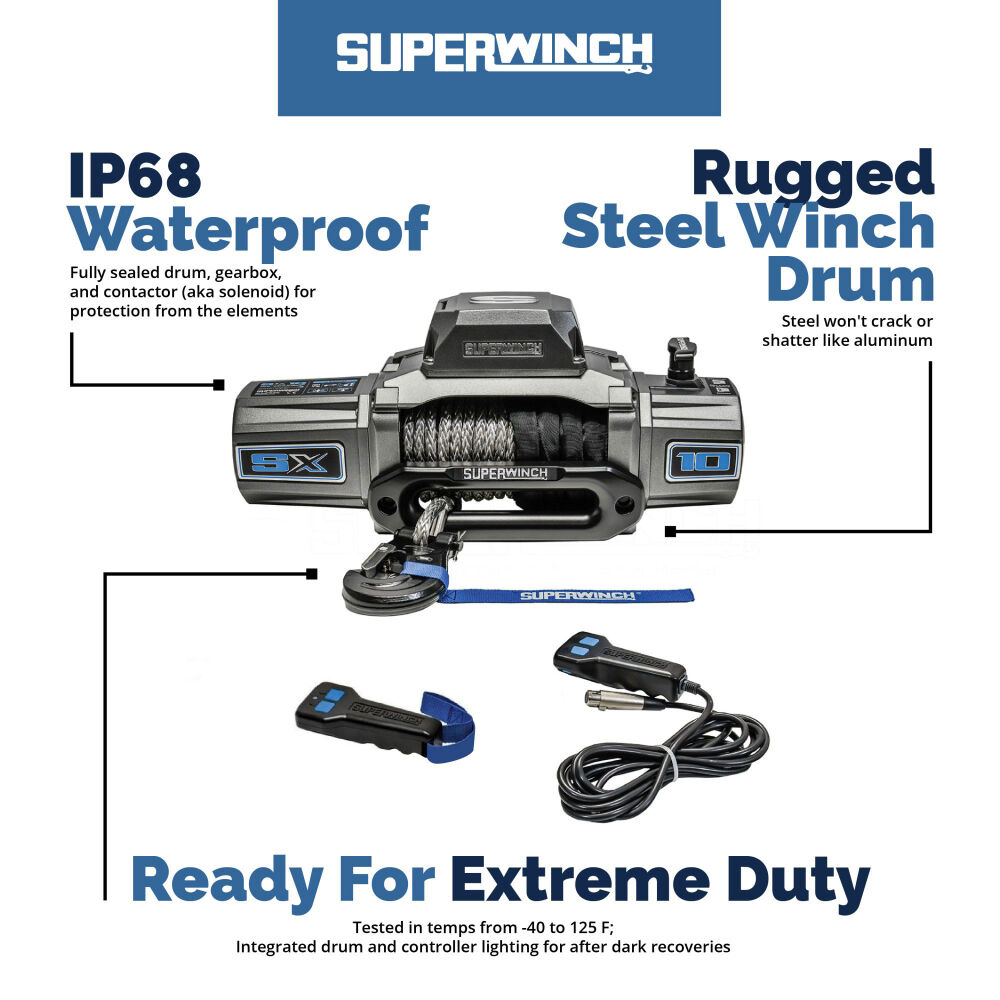

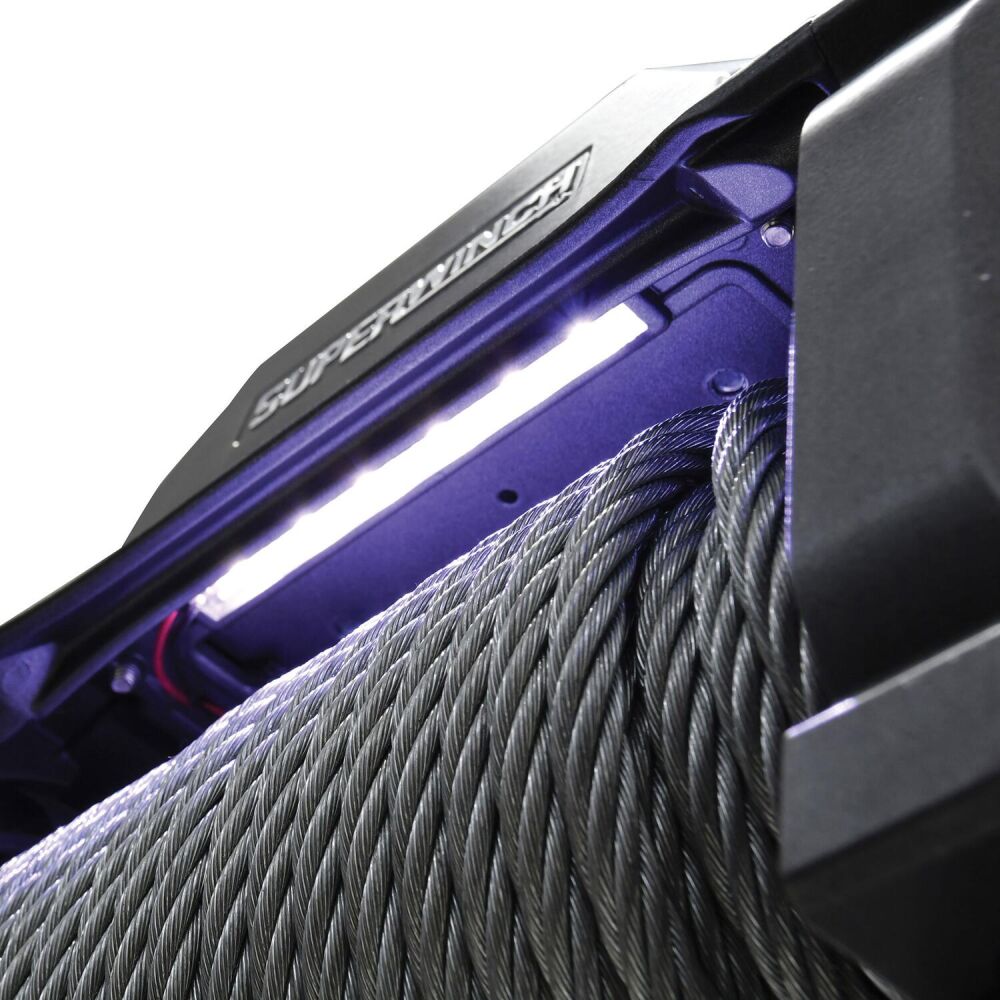

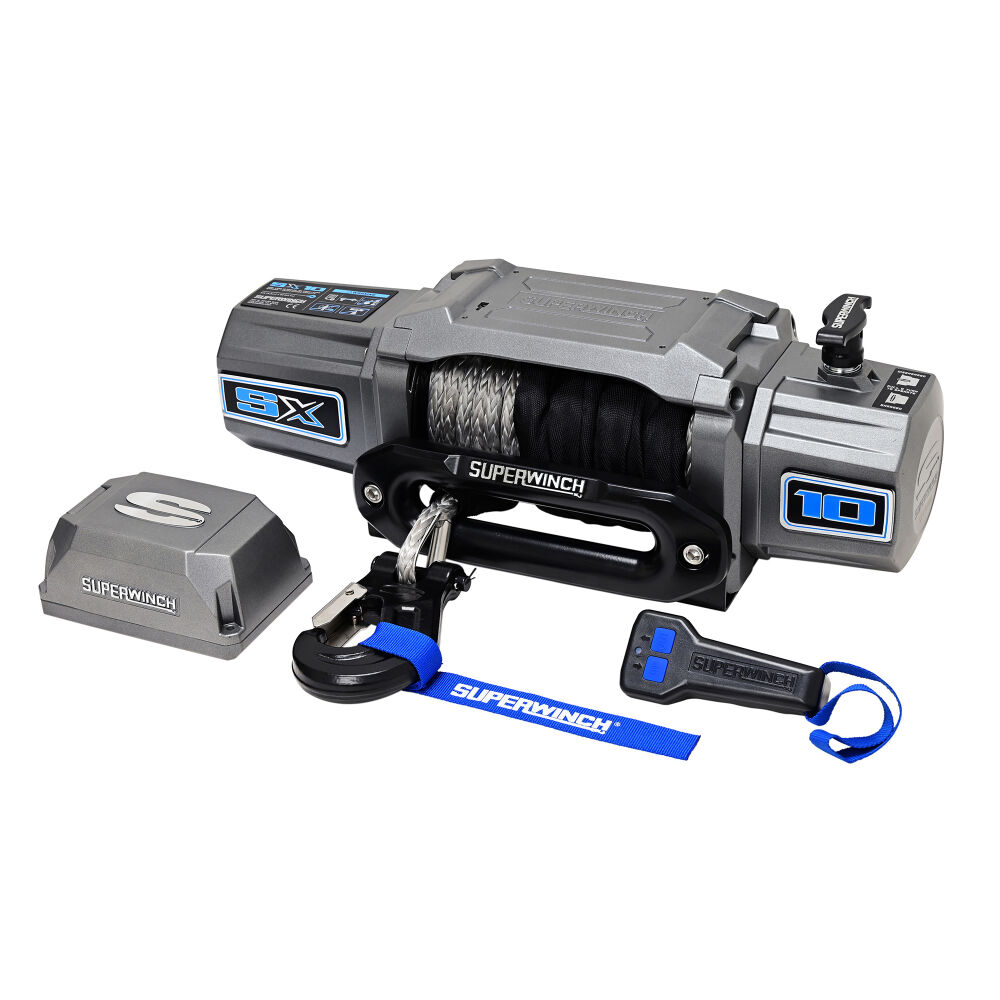

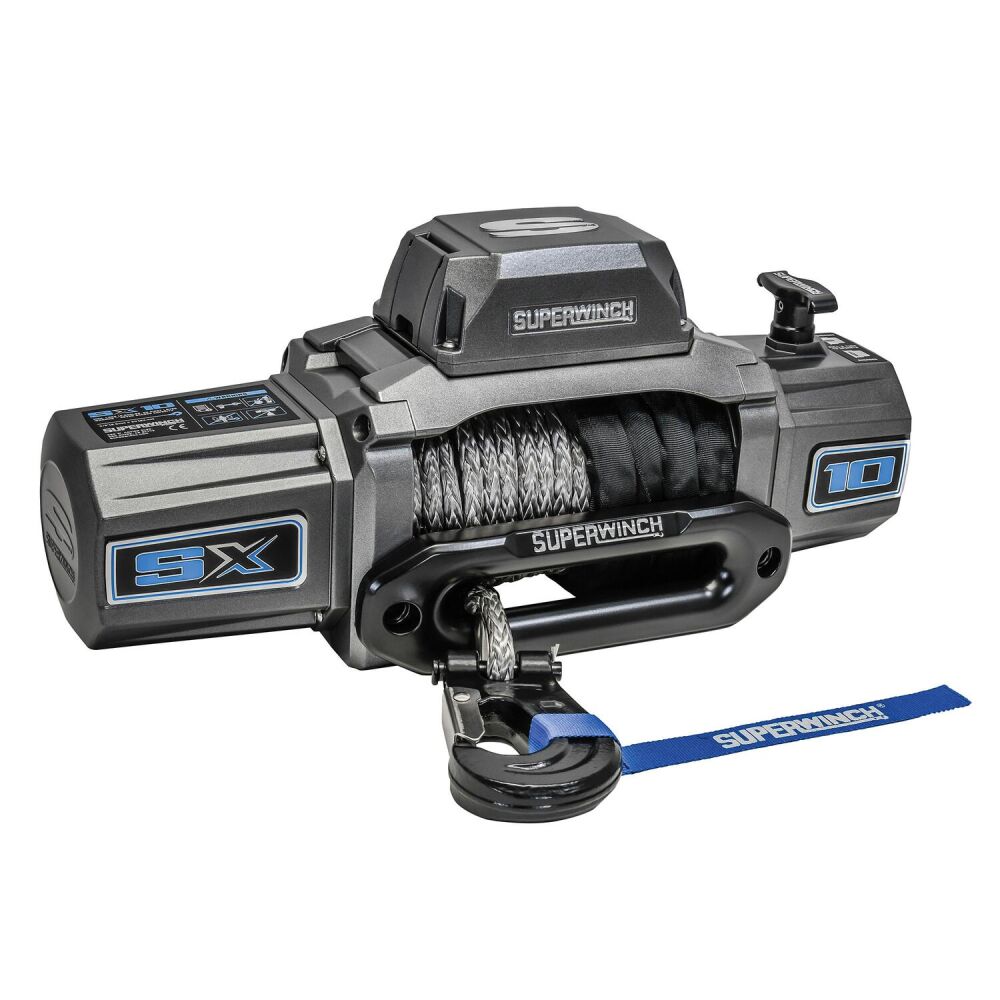

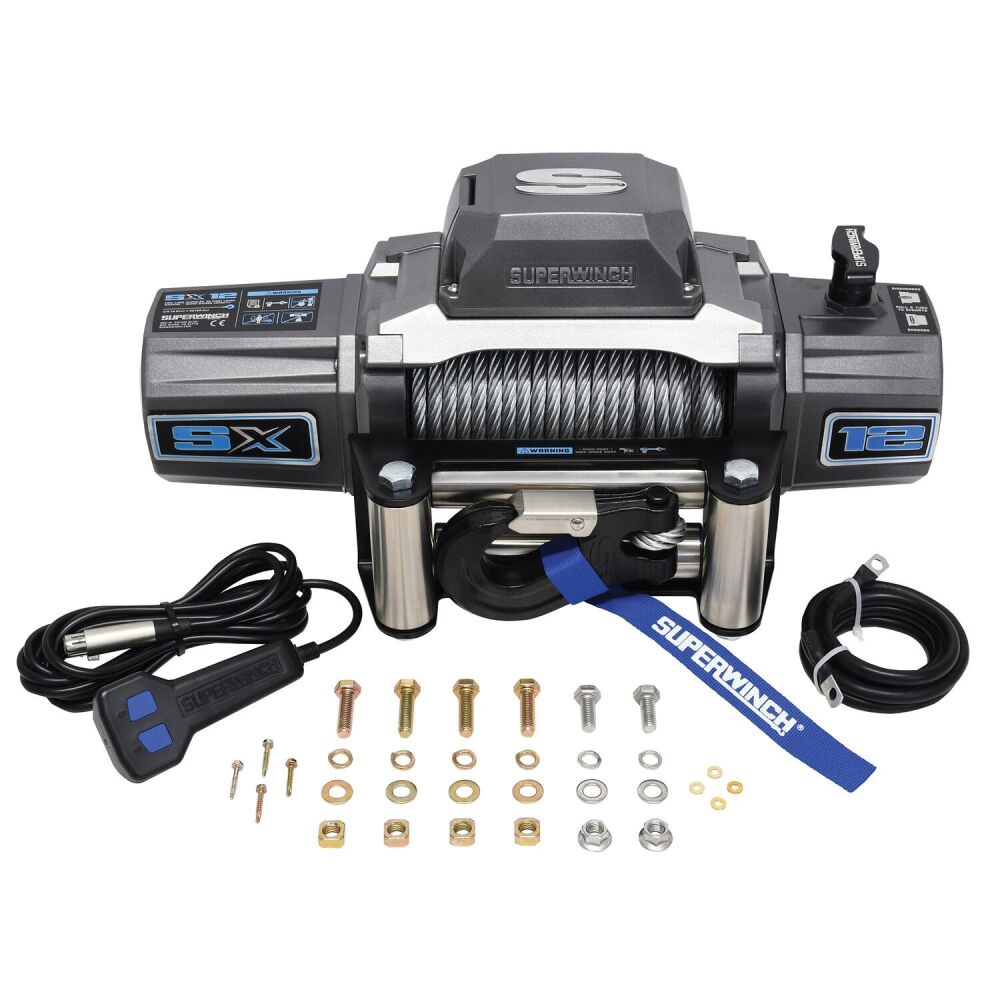

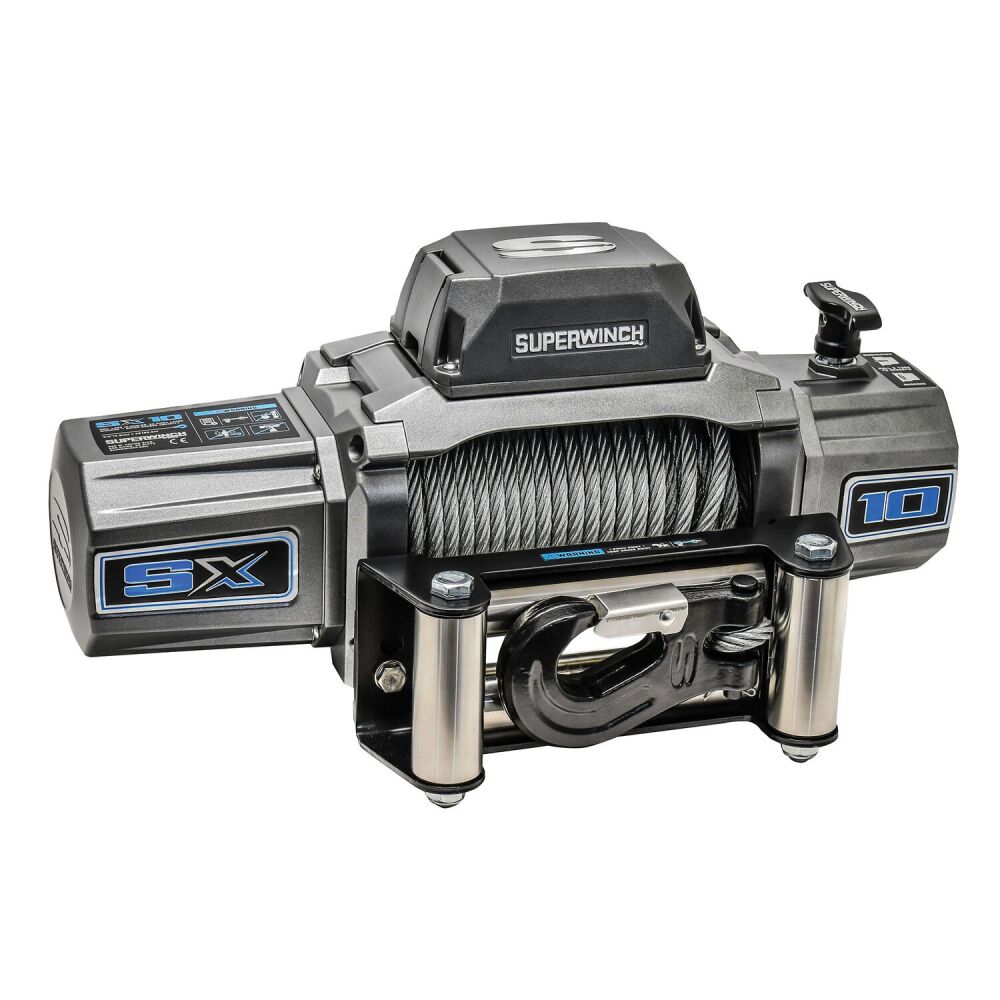

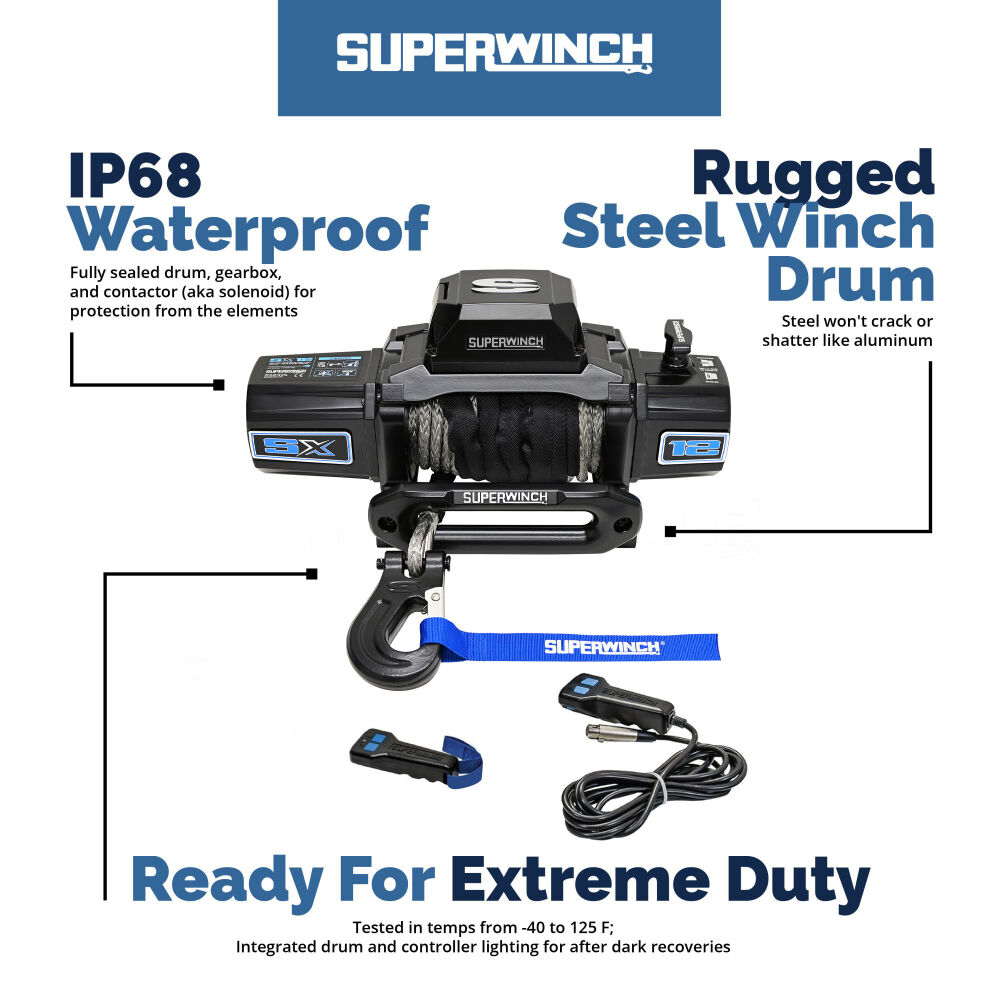

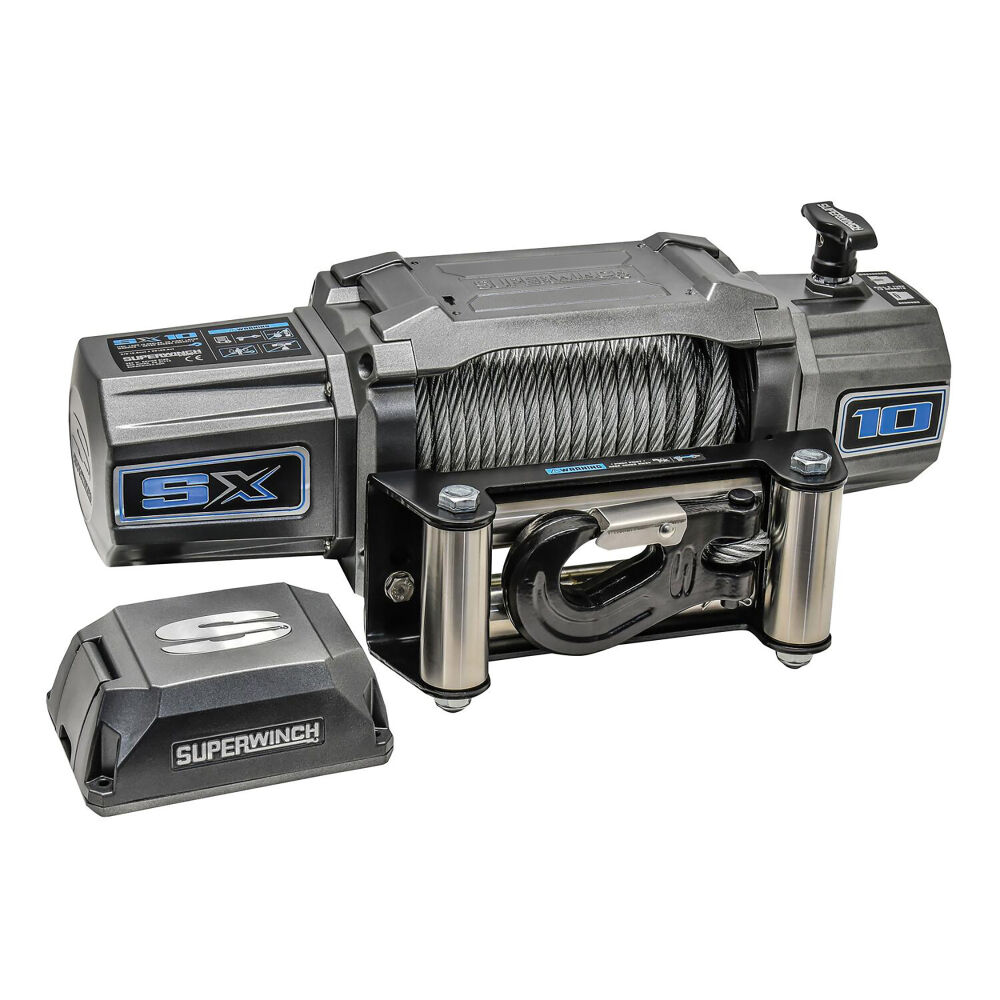

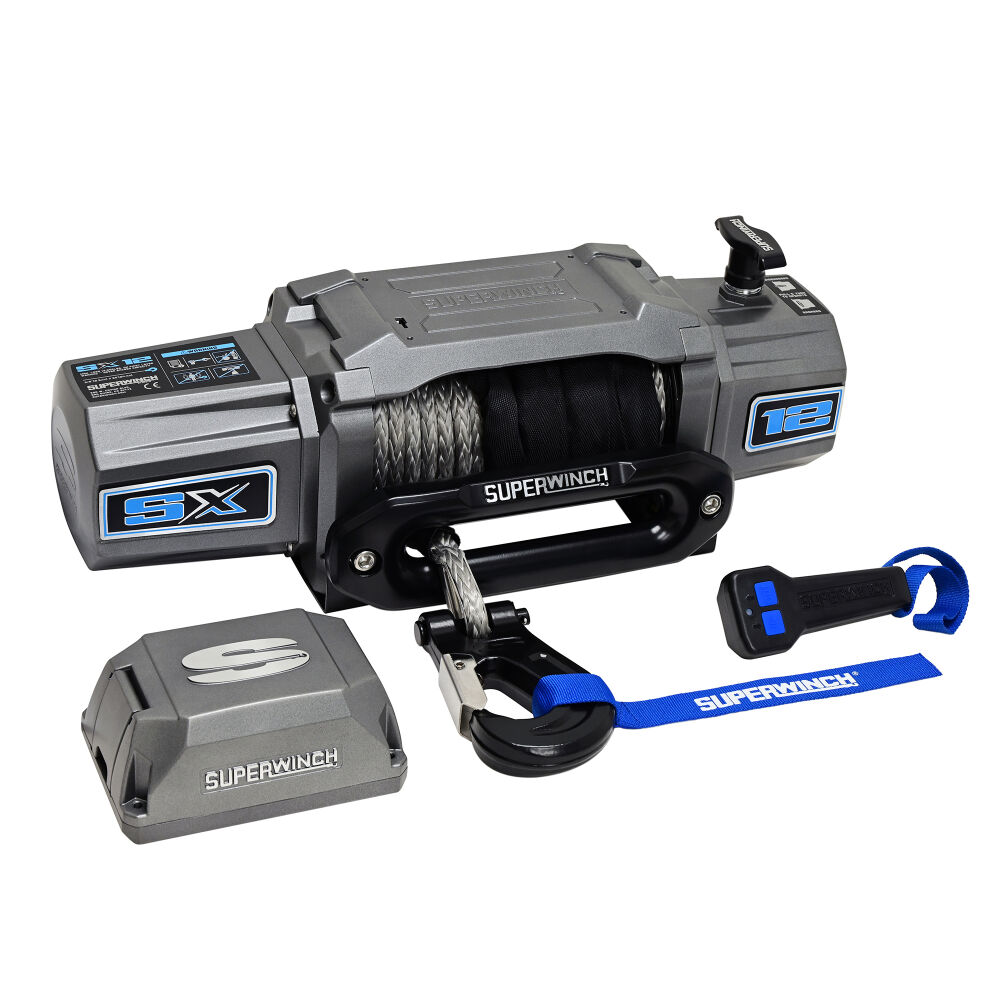

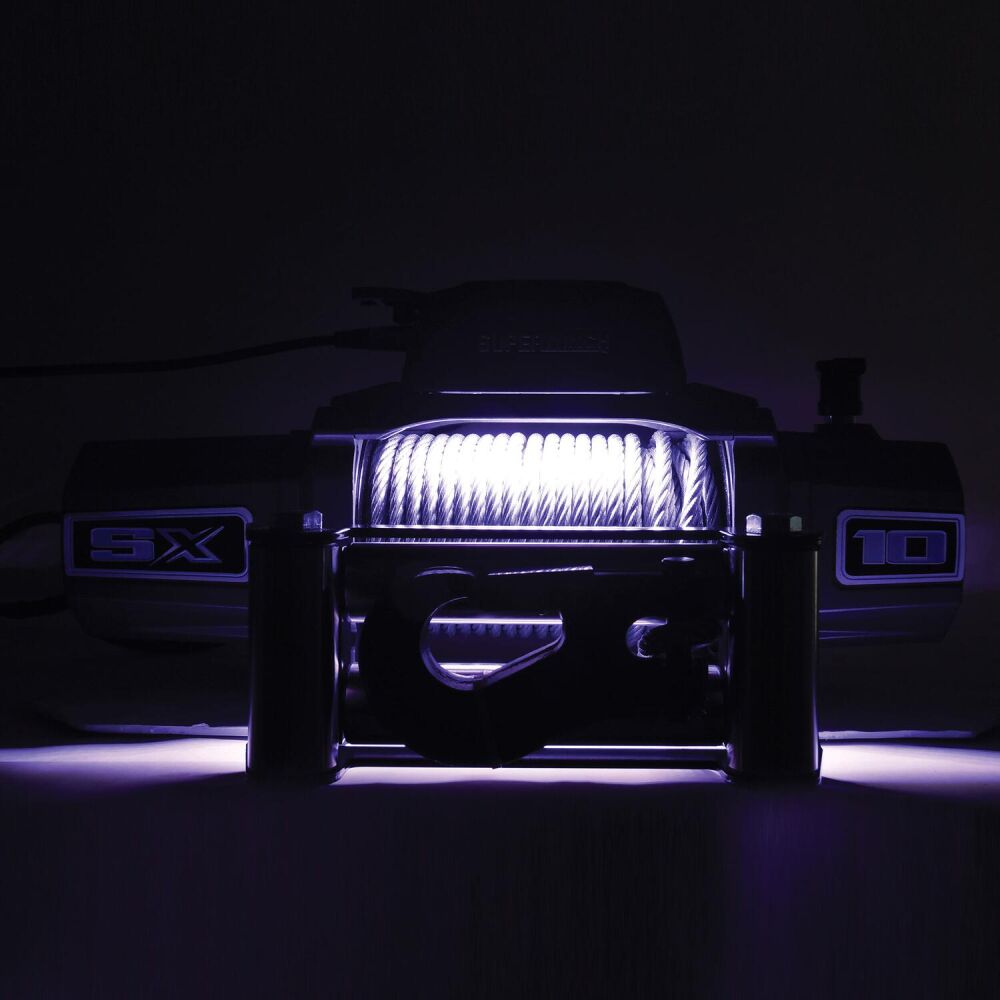

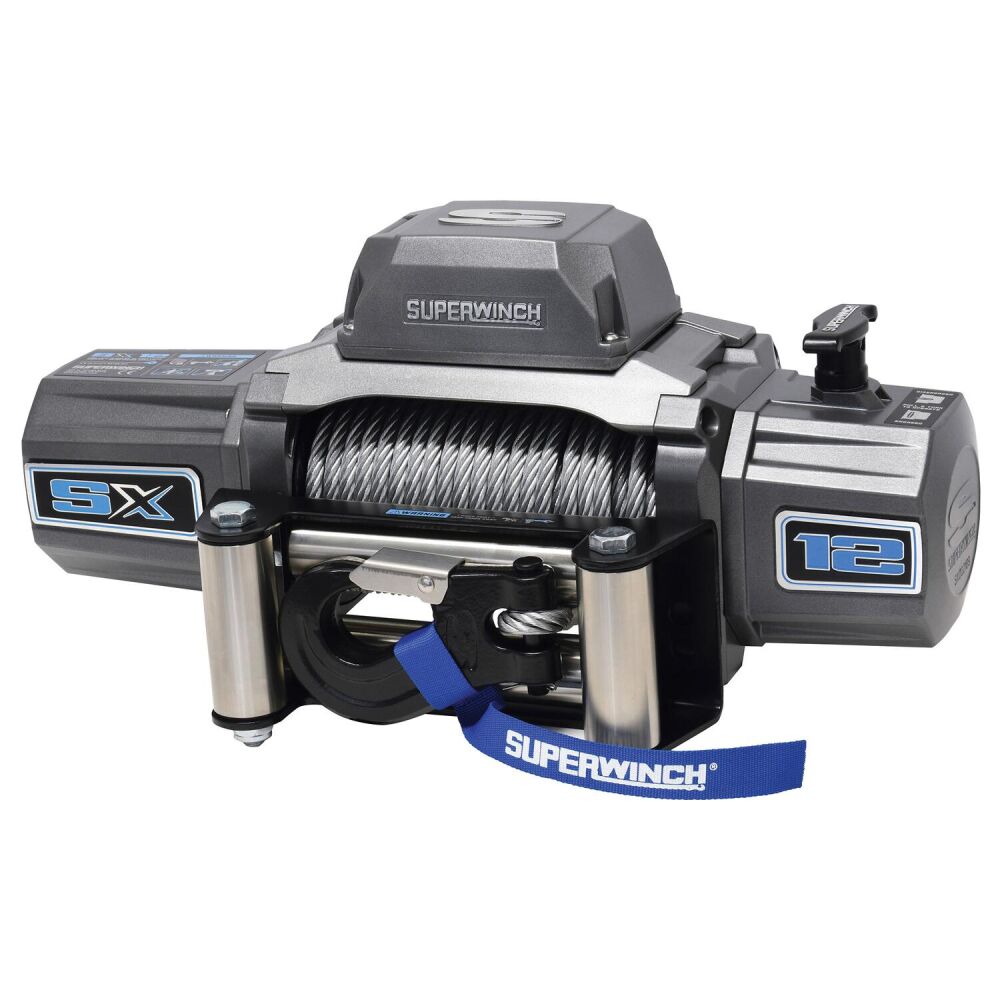

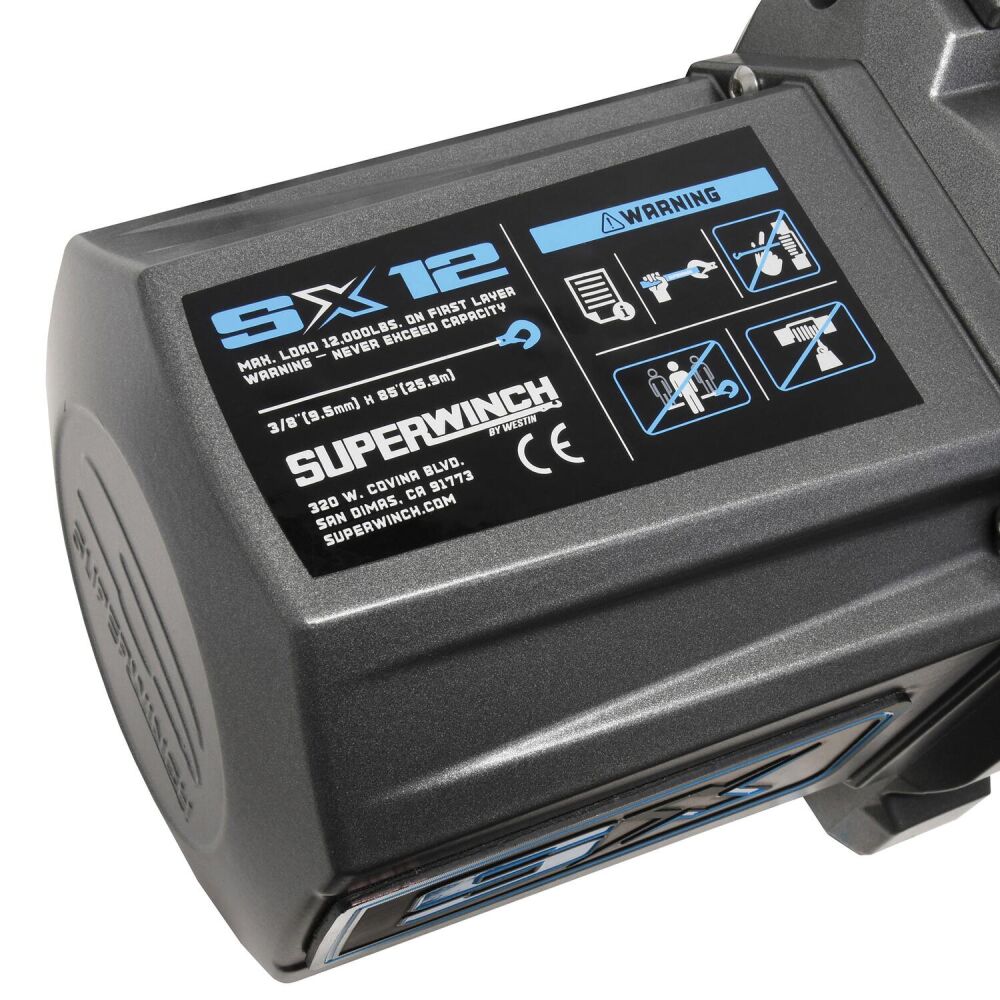

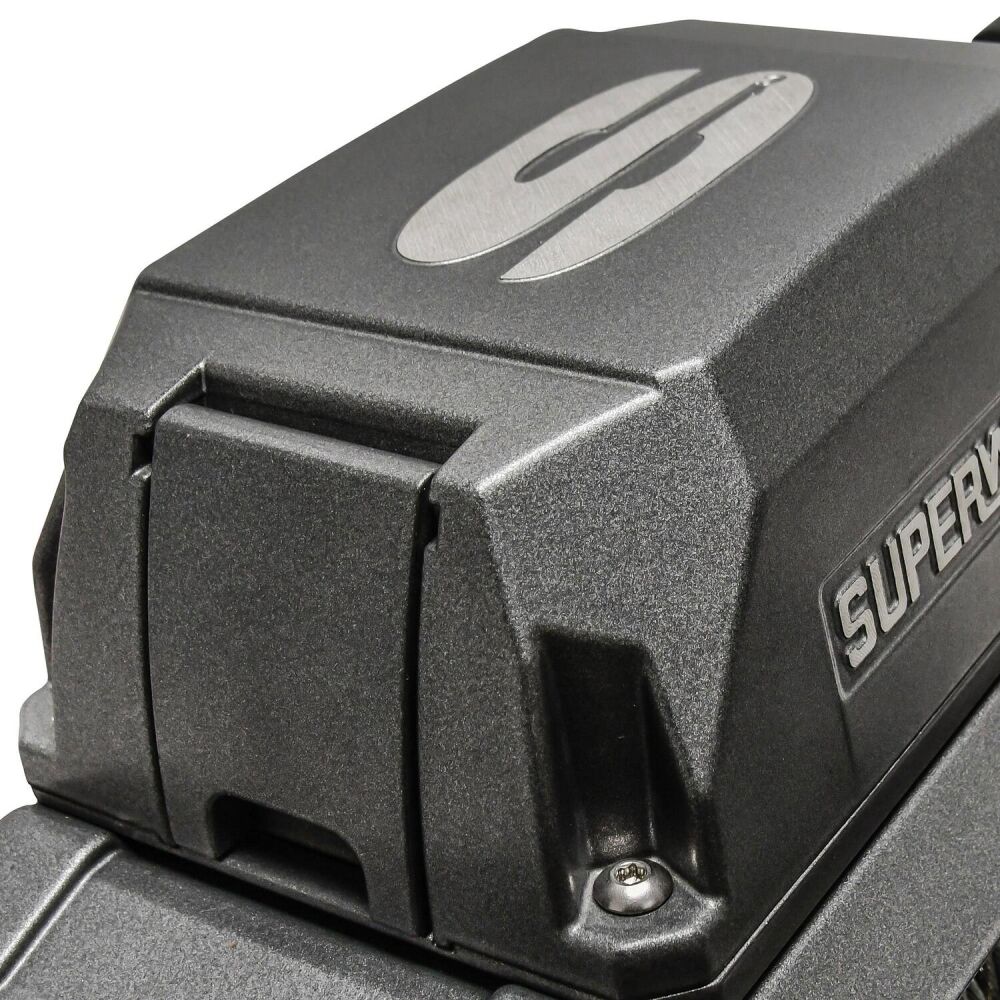

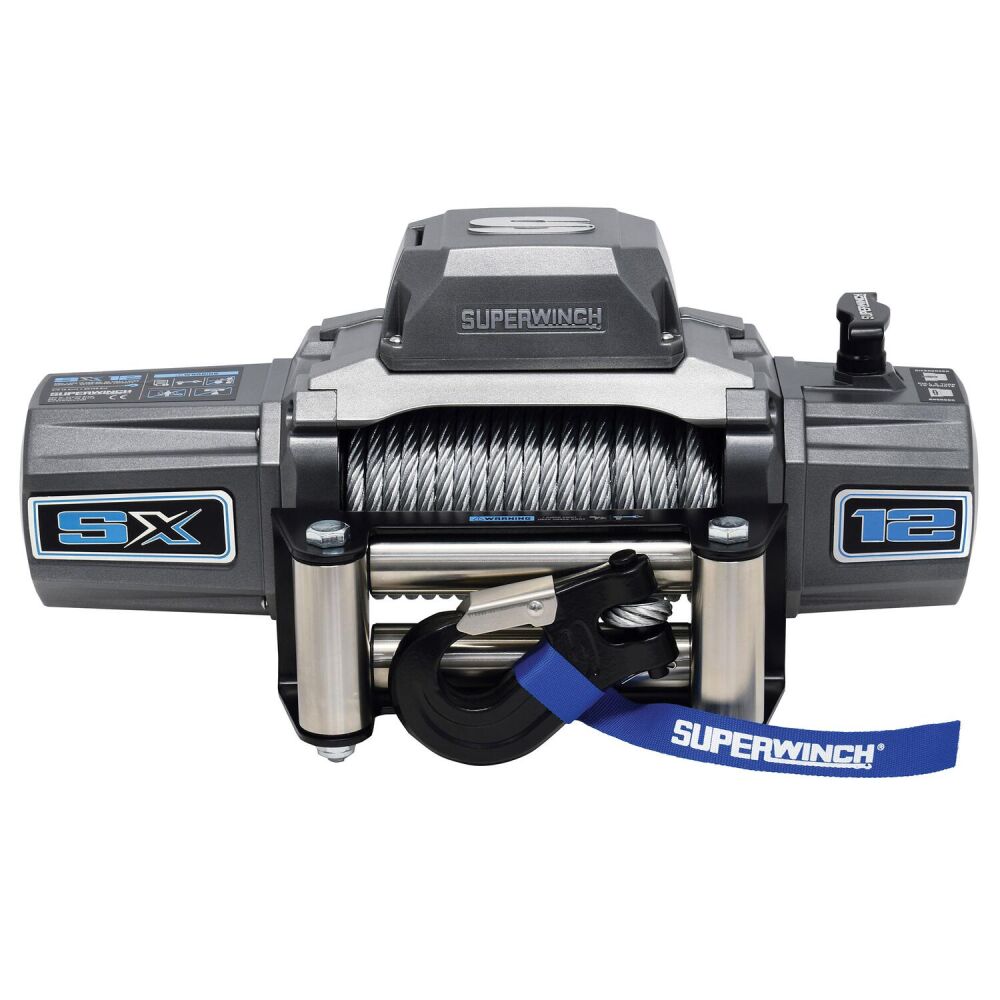

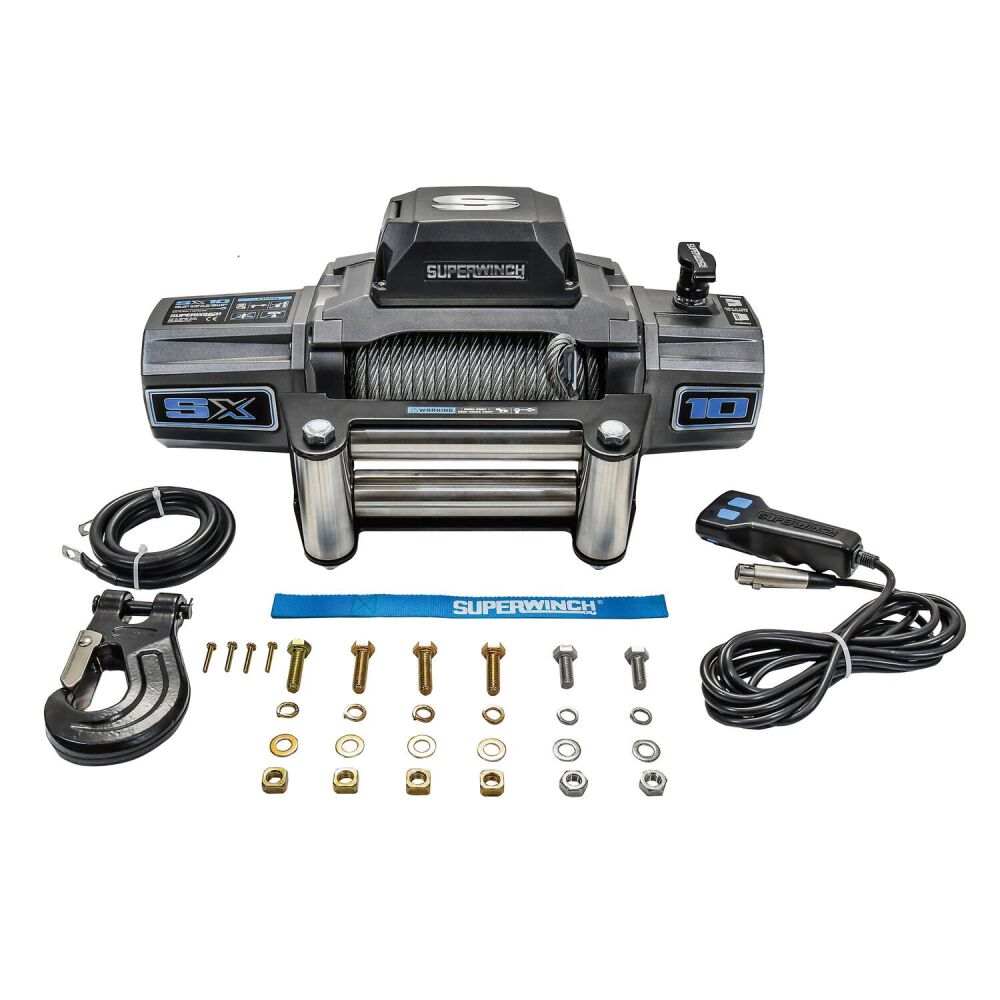

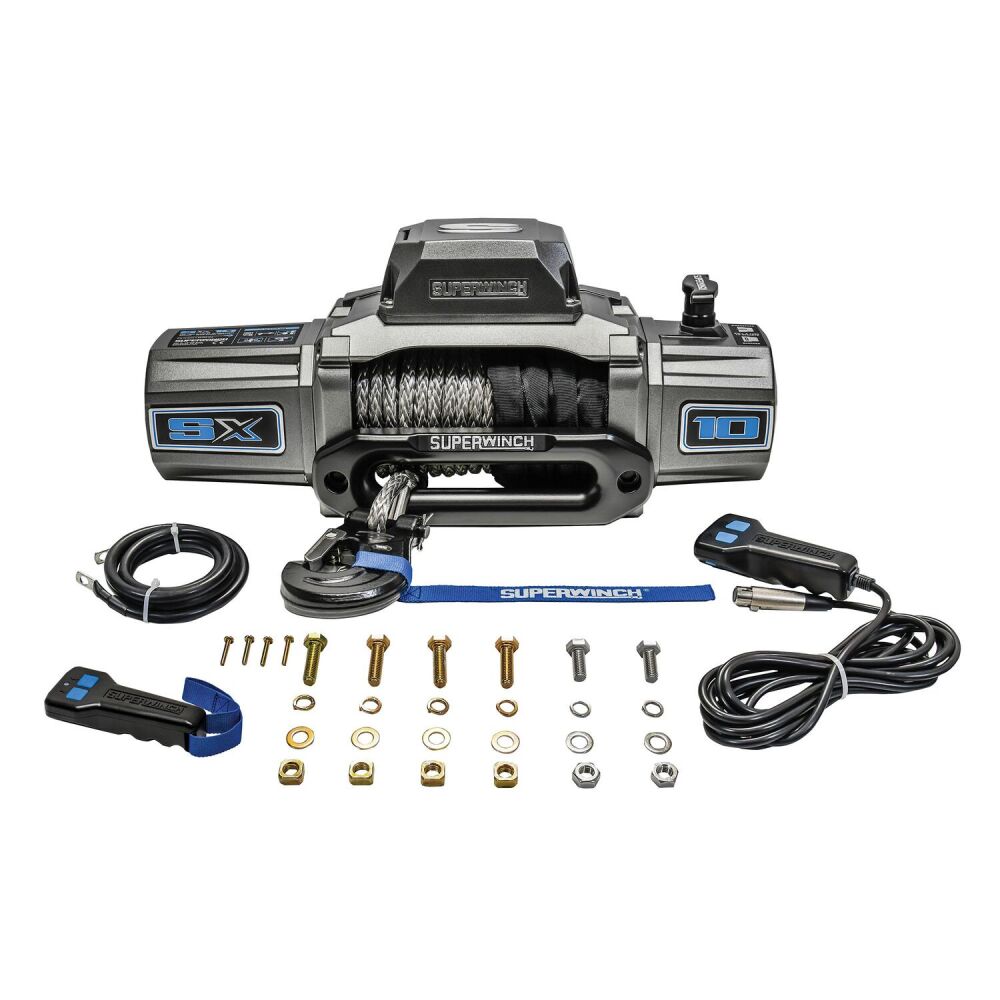

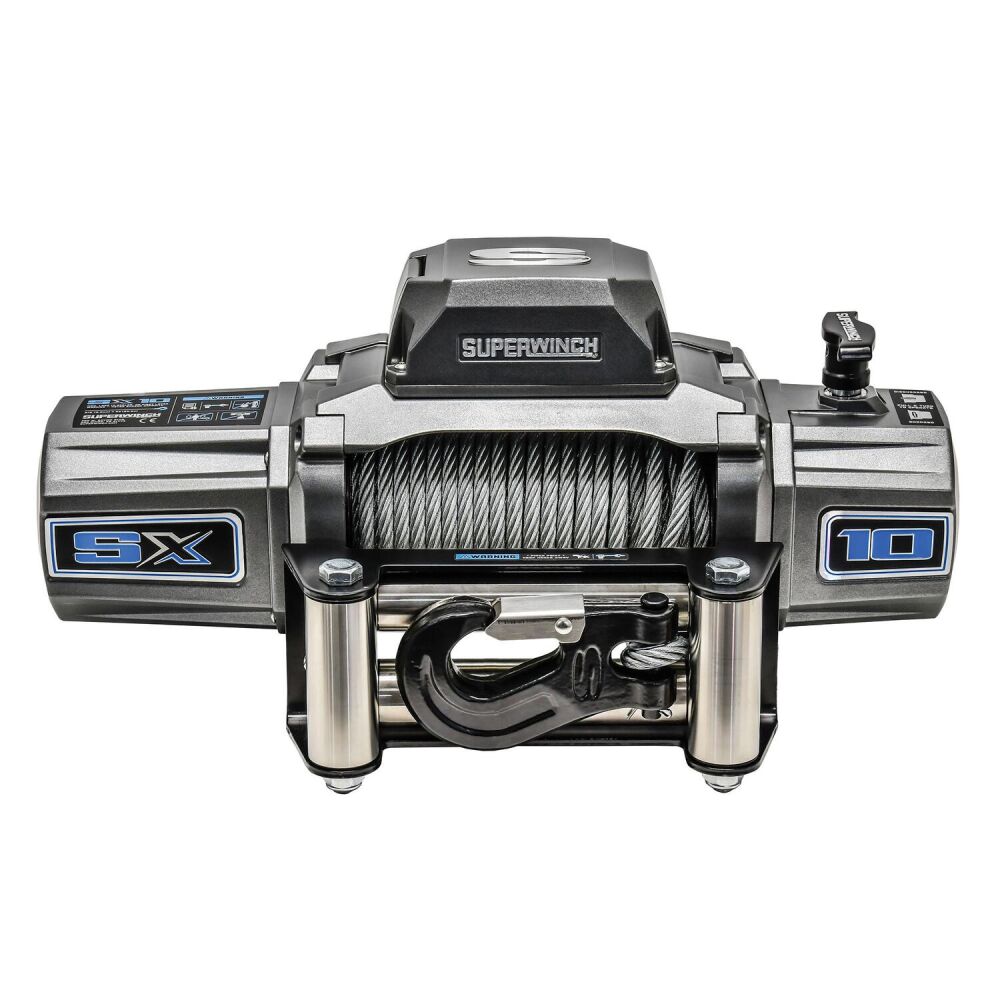

The SX Series winch from Superwinch is engineered to provide users the ideal combination of power, speed, innovation, and proven performance they demand. Innovative features such as a patented drum light, relocatable die-cast aluminum control box, 3/8" diameter wire (SX10 & SX12) or synthetic (SX10SR & SX12SR) rope and a 12' lighted wired remote (all models), plus an additional lighted wireless remote included on SR models. SX Series winches exceed the most demanding standards of today’s modern vehicles, while delivering an affordable and stylish design which incorporates many class leading features not found in other high-performance winches. Providing 10,000 (SX10 & SX10SR) or 12,000 (SX12 & SX12SR) lbs. of raw pulling power, the new SX Series has a sleek modern look and is built to last. With an IP68 rating for dustproof and waterproof operation, and a durable metallic graphite powder-coated finish this winch has it all.

Mechanical Warranty: Limited Lifetime
Electrical Warranty: Limited 7 Year

×
